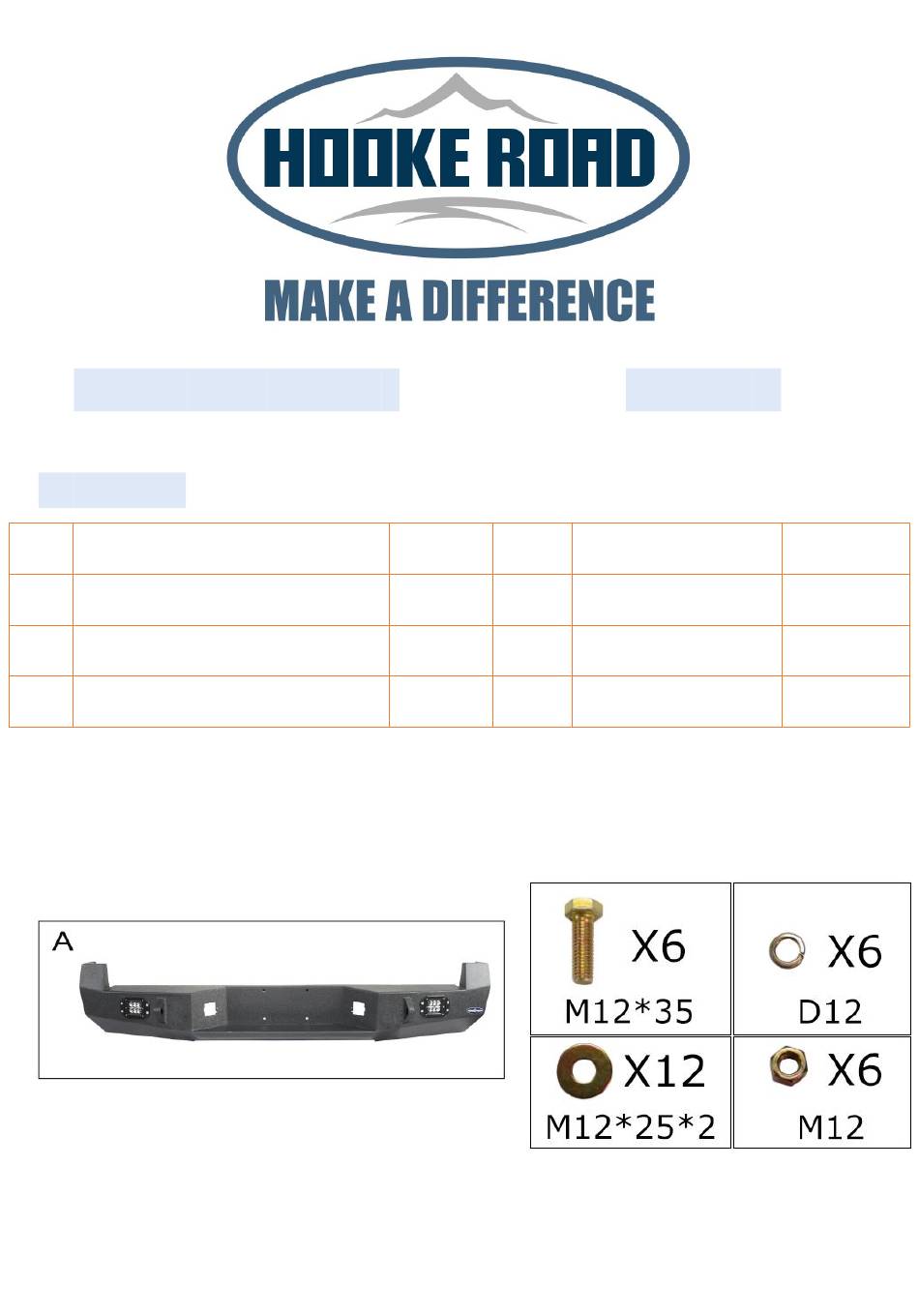

- Page 1 Tacoma Rear Bumper BXG.4011-S (1) Contents: Part Name Size(mm) Part Name Size(mm) Rear Bumper Flat Washer M12*2*25 Hex Bolt M12*35 Hex Nuts Split Lock Washer...
- Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4011-S), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the original rear bumper.And then as shown below. Step 2: Install the rear bumper on the vehicle.
- Page 4 Step 3: After step 2,then tighten the bumper(PART”A”) with the Hex Bolts (M12*35), Split Lock Washer (D12), Flat Washer (M12*2*25), Hex Nuts (M12). As shown below. Attention： If you still have the original bolts,then use them or our bolts is up to you. Install 1x Hex Bolt with 2x Flat Washer.
- Page 5 (1)Install the bolts. (2)Tighten the bolts. Step 4: Install another side in the same method.
- Page 6 Step 5: Install the bolts on the bottom of the rear bumper. (1)Install the Hex Bolts (M12*35) with the Split Lock Washer (D12), Flat Washer (M12*2*25), Hex Nuts (M12). (2)Tighten the bolts.As shown below.
- Page 7 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
