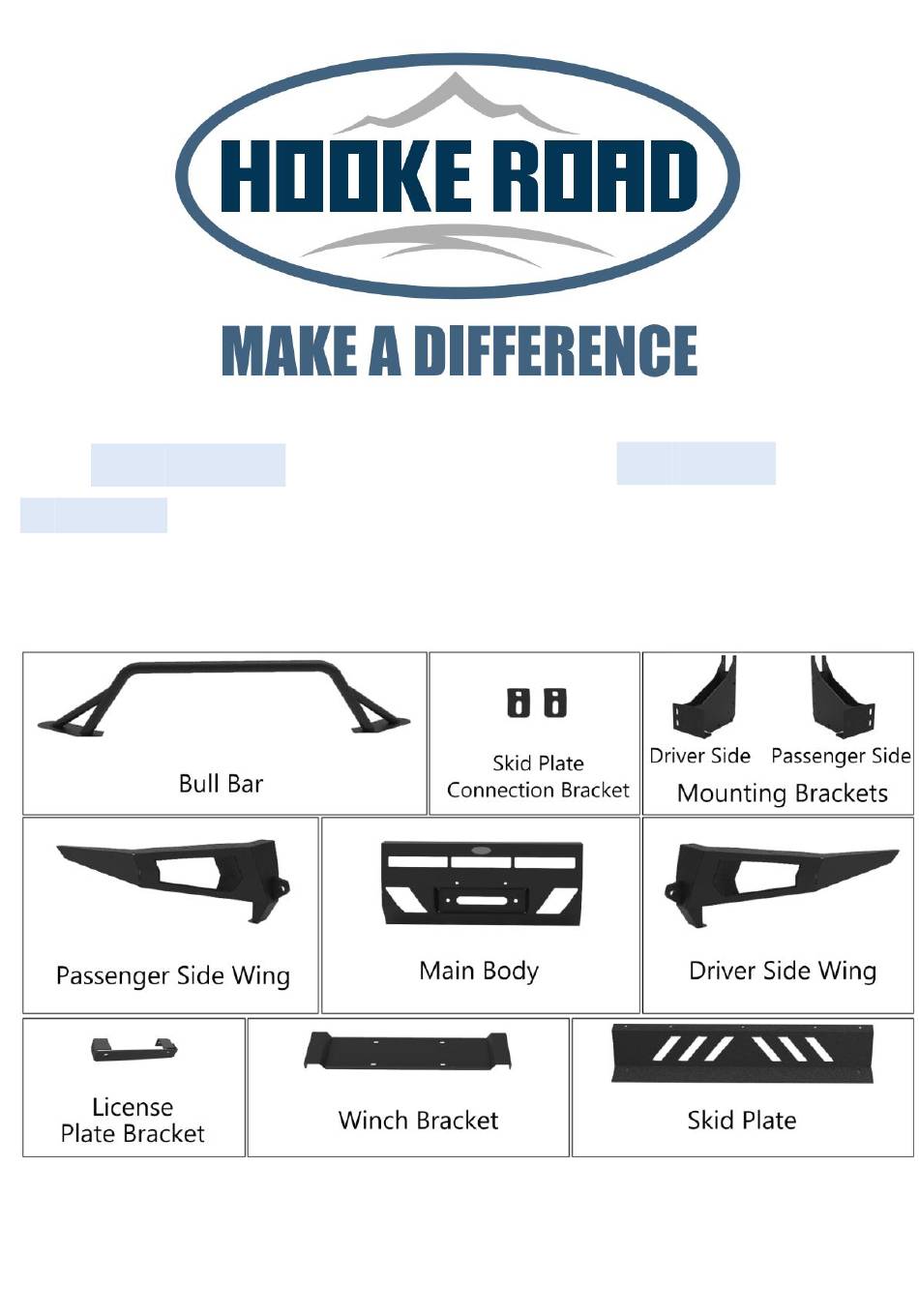

- Page 1 BXG.4210-S Front Bumper (1) Contents:...
- Page 2 Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*20 Hex Bolts M12*30 Button Head Socket Cap Bolts Screws M10*20 Hex Bolts M10*30 Hex Bolts M12*110 Button Head Socket Cap Bolts Screws M6*16...
- Page 3 Split Lock Washer Split Lock Washer Flat Washer M8*20*1 Flat Washer M10*20*1.5 Flat Washer M10*25*2 Flat Washer M6*16*1 Flat Washer M12*25*2 Hex Nut Flange Hex Lock Nuts Flange Hex Lock Nuts Flange Hex Lock Nuts (2) Tools required: a. Drive Socket Ratchet Wrench; b.
- Page 4 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4210-S), please scan the QR code.
- Page 5 (4) Installation instruction: Cutting The Factory Bumper: Step 1: Ready to cut the factory bumper. It is strongly recommended to find a professional for cutting operations. Step 2: Take safety precautions: Ensure the vehicle is parked in a safe location and wear appropriate safety goggles and gloves during the cutting process.
- Page 6 Step 4: Cut the bumper: Carefully cut the bumper using the chosen tool, following the marked positions. Exercise caution to avoid accidental damage or injury, and follow proper cutting techniques. Finishing and refinement: After completing the cut, clean up any debris and refine the cut edges to achieve a neat and smooth appearance.
- Page 7 Cutting The Factory Inner Fender Liners: Step 6: When cutting the original front bumper, you have canceled the connection buckle between the bumper and the inner fender liners. At this step, you will find that the front part of the original inner fender liners cannot be fixed.
- Page 8 Install The Bumper: Step 7: Stick the EVA into the main body. To assemble the wings & the main body. Use the hex bolts (M10*30), split lock washer (D10), flat washer (M10*25*2). Tighten up those bolts. Step 8: To install the bull bar. Use the button head socket cap bolts screws (M10*20), flat washer (M10*20*1.5), Flange Hex Lock Nuts (M10).
- Page 9 Step 9: To install the mounting brackets. Use the Hex Bolts (M12*100), Split Lock Washer(D12), flat washer (M12*25*2), Hex Nuts (M12). Don’t tighten up those bolts. Step 10: To install the winch bracket. Use the Hex Bolts (M12*30), Split Lock Washer(D12), flat washer (M12*25*2).
- Page 10 Step 11: To install the license plate bracket. Use the button head socket cap bolts screws (M8*20), flat washer (M8*20*1), Flange Hex Lock Nuts (M8). Tighten up those bolts. Step 12: Lift up the bumper into your vehicle. Install it into with the factory bolts.
- Page 11 Keep the bolts loose, raise the bumper, adjust the gap between it and the car, and then tighten the bolts (the step7 & the step 10) after confirming that the desired effect is achieved. Step 13: To install the skid plate & the skid plate bracket. Use the M8 button head socket cap bolts screws groups &...
- Page 12 Step 14: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 13 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
