BXG.8914-S
Front Inner Fender Liners
(1) Contents:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.8914-S and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.8914-S

Summary of Contents for HOOKE ROAD BXG.8914-S

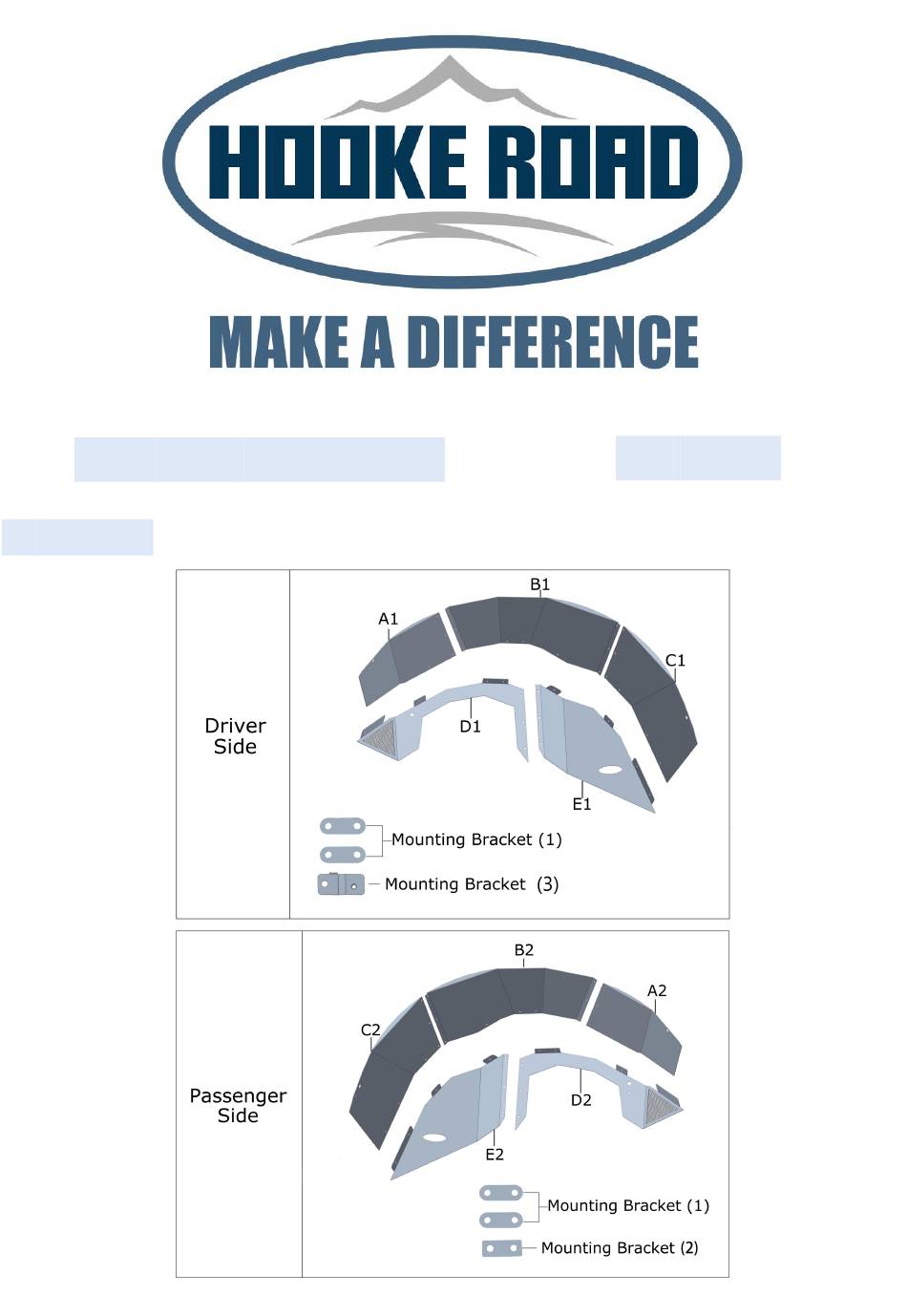

  • Page 1 BXG.8914-S Front Inner Fender Liners (1) Contents:...
  • Page 2 Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*16 Button Head Socket Cap Bolts Screws M6*10 Button Head Socket Cap Bolts Screws M6*20 Button Head Socket Cap Bolts Screws M6*25 Flat Washer M6*16*1.5 Flat Washer M8*16*1.5 Flange Hex Lock Nuts Flange Hex Lock Nuts...
  • Page 3 About 2 hours, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8914-S), please scan the QR code.

  • Page 4: Installation Instruction

    (4) Installation instruction: Step 1: You will need to fully remove the front fenders by turning the clips on the underside of the fender down until they feel loose. Once loose, pull the fender away from the Bronco directly towards you, releasing the clips. Note: Both front and rear fenders are mounted in this manner.
  • Page 5 Step 3: Remove the fender by pulling down on it near the lip of the fender, and then out. Passenger Side Installation: Step 4: Assembly the passenger side Rear Inner Fender Liners (A2, B2, C2, D2, E2) with the Button Head Socket Cap Bolts Screws (M6*10), Flange Hex Lock Nuts (M6).
  • Page 6 Step 5: According to the schematic diagram of the original vehicle shown in the figure below, identify the three installation holes circled in red to prepare for the installation of our product.
  • Page 7 Step 6: Next, install the mounting bracket (1) & (2). Use a rectangular mounting bracket for the hole in the middle position, and use oval-shaped mounting brackets for the holes on the sides. Use the Button Head Socket Cap Bolts Screws (M6*20), Flat Washer (M6*16*1.5) for all the installations. Do not tighten all the screws.
  • Page 8 Step 7: In this step, install our front inner fender liners. You will need assistance from another person to lift the liner and align it with the mounting holes of the central bracket. Then, proceed to install the mounting holes on the sides.
  • Page 9 (3) to instead it in the picture. Use the Button Head Socket Cap Bolts Screws (M8*16), Flat Washer (M8*16*1.5), Flange Lock Hex Nuts (M8). Step 9: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
  • Page 10 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.

This manual is also suitable for:

Shk8914+8915
