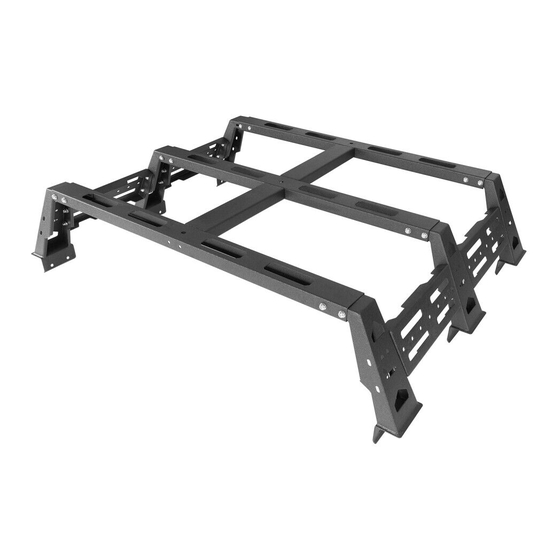

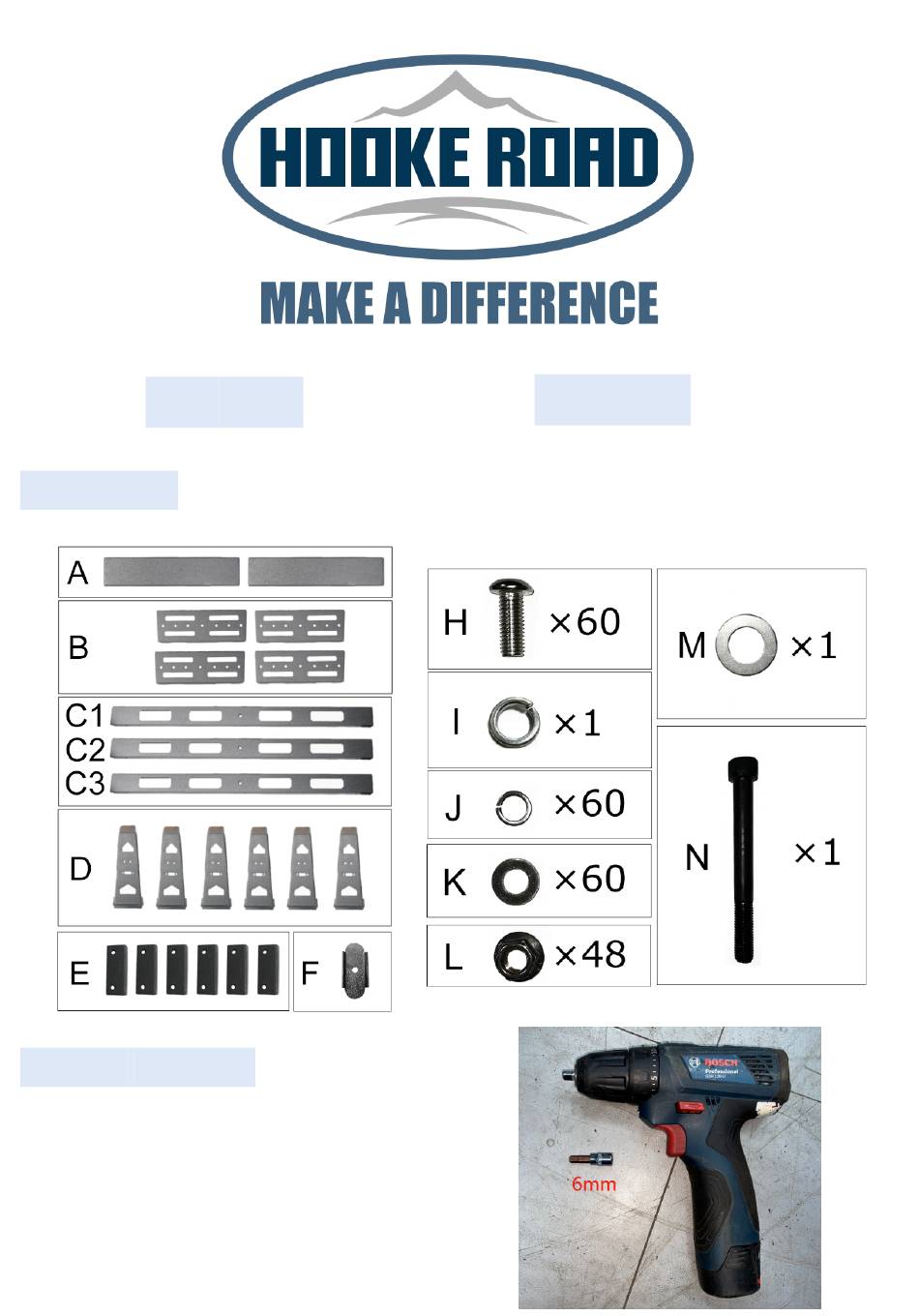

- Page 1 BXG.8207 Bed Rack (1)Contents: (2)Tools required: A. 6mm HEX Socket Wrench;...
- Page 2 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8207), please scan the QR code.
- Page 3 (4)Installation instruction: Step 1: Assemble “C1”, ”C2”, ”C3” and “D” with those bolts(H, J, K, L). As the picture show.
- Page 4 Step 2: Lift the three brackets into your car. Adjust the installation position according to your need. Connect the three brackets together with the Part ”A” using those bolts(H, J, K, L). As the picture show. Notes: Don’t tighten all the bolts.
- Page 5 Step 3: Install the Part “B” into both sides of the three brackets with those bolts(H, J, K, L). Notes: Don’t tighten all the bolts.
- Page 6 Step 4: Install the Part “E” with those bolts(H, J, K) to fix the rack. Tighten all the bolts.
- Page 7 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! The installation location of the Spare Tire (Using the Part “F”, ”I”, “M”, N”) Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
