Front Bumper
(1) Contents:
Qty
Part Name
1

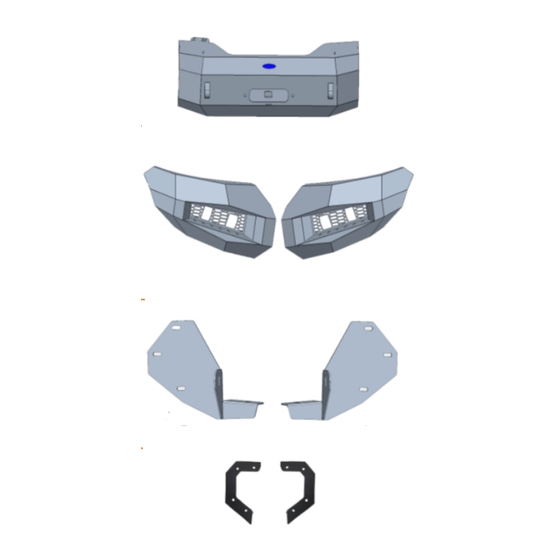

Front Bumper Assembly
H×12
Hex Bolt
I×1
Hex Bolt
J×8
Hex Bolt
K×8
Split Lock Washer
L×12
Split Lock Washer
M×1
Split Lock Washer
Size(mm)
Qty
N×16
M12*45
O×12
M6*35
P×2
M12*35
Q×1
M12*35
R×8
D12
S×12
D6
BXG.8000
Part Name
Flat Washer
Flat Washer
Flat Washer
Hex Nuts
Hex Nuts
Flange Hex Lock Nuts
Size(mm)
M12*30*2
M12*30*2
M6*12*1
M6
M12
M12
Advertisement
Related Manuals for HOOKE ROAD BXG.8000
Summary of Contents for HOOKE ROAD BXG.8000
- Page 1 Front Bumper BXG.8000 (1) Contents: Part Name Size(mm) Part Name Size(mm) N×16 Front Bumper Assembly Flat Washer M12*30*2 H×12 Hex Bolt M12*45 O×12 Flat Washer M12*30*2 I×1 Hex Bolt M6*35 P×2 Flat Washer M6*12*1 J×8 Hex Bolt M12*35 Q×1 Hex Nuts K×8...
- Page 2 About 1-2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8000), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Remove the original front bumper.
- Page 4 Step 2: Assmble the Part"A"， "B", "C"& "D"with those bolts(H, L, O, S, J, K, N, R).
- Page 5 Step3: Cut off the excess part of the original wheel eyebrow. Install our Hooke Road bumper with those bolts（H, L, O）. Use the provided bolt to bolt down the hood release bracket to the bumper(I, M, P, Q). Tighten all of the bolts and restore the original lights.
- Page 7 Step 4: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 8 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
