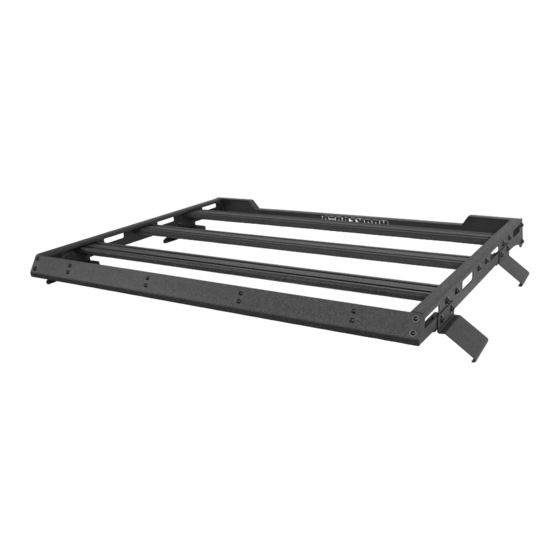

(1) Contents:
Qty
Part Name
1
Roof Rack Assembly
16
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
4
Button Head Socket Cap Bolts Screws
24
Flat Washer
Roof Rack
Size(mm)
Qty
4
M8*16
8
M8*25
12
M6*10
4
M6*16
8
M8*20*1
BXG.8905-S
Part Name
Flat Washer
Flat Washer
Flange Hex Lock Nuts
Flange Hex Lock Nuts
Tee Sliding Slot Nuts
Size(mm)
M6*16*1
M6*12*1
M8
M6
M6
Advertisement
Related Manuals for HOOKE ROAD BXG.8905-S
Summary of Contents for HOOKE ROAD BXG.8905-S

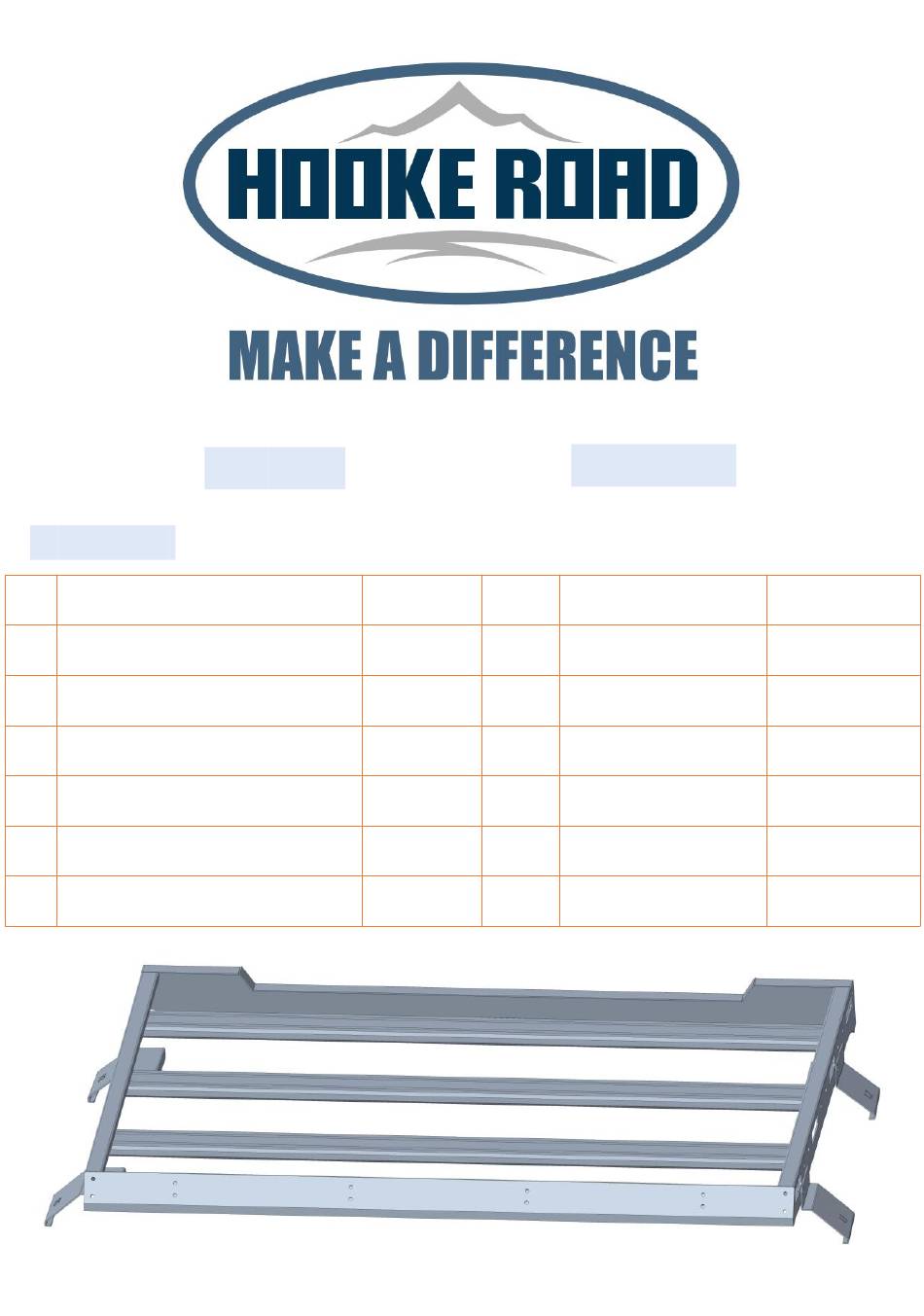

- Page 1 BXG.8905-S Roof Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Roof Rack Assembly Flat Washer M6*16*1 Button Head Socket Cap Bolts Screws M8*16 Flat Washer M6*12*1 Button Head Socket Cap Bolts Screws M8*25 Flange Hex Lock Nuts Button Head Socket Cap Bolts Screws...
- Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8905-S), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Assemble the rack on the ground. Mounting the shortest crossbar into the Front Fairing. For this, use the Button Head Socket Cap Bolts Screws (M6*10), Flat Washer (M6*12*1), Tee Sliding Slot Nuts (M6). Make sure the machined slot in the rail of the crossbar is facing the front fairing.
- Page 5 Step 3: Next, mount the front and rear fairings. To do this, use the Button Head Socket Cap Bolts Screws (M6*16), Flat Washer (M6*16*1) Flange Hex Lock Nuts (M6) to install the front fairings, the Button Head Socket Cap Bolts Screws (M8*16), Flat Washer (M8*20*1) Flange Hex Lock Nuts (M8) to install the rear fairings .
- Page 6 Step 4: Distinguish the mounting brackets from the back. As the picture shown. Step 5: Before installing the luggage rack on the car, please install those brackets into the roof rack with the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1) , Flange Hex Lock Nuts (M8). Don’t tighten up all of those bolts.
- Page 7 Step 6: Put the roof rack into your vehicle. Snap the bracket into the groove, then tighten the bracket screws. Step 7: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 8 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
