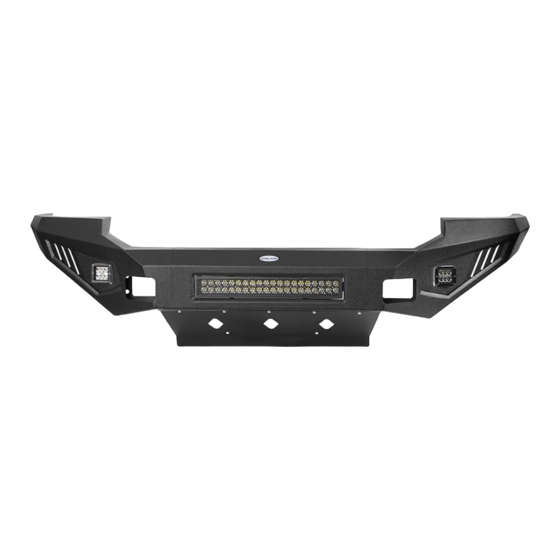

Front Bumper
(1) Contents:
Qty
Part Name
1
Front Bumper Assembly
8
Hex Bolt
6
Hex Bolt
9
Button Head Socket Cap Bolts Screws
9
Split Lock Washer
Size(mm)
Qty
14
M12*35
9
M12*30
28
M8*25
2
D8
14
BXG.8501
Part Name
Split Lock Washer
Flat Washer
Flat Washer
Flange Hex Lock Nuts
Hex Nut
Size(mm)
D12
M8*16*1
M12*30*2
M8
M12
Advertisement
Related Manuals for HOOKE ROAD BXG.8501
Summary of Contents for HOOKE ROAD BXG.8501
- Page 1 BXG.8501 Front Bumper (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Split Lock Washer Hex Bolt M12*35 Flat Washer M8*16*1 Hex Bolt M12*30 Flat Washer M12*30*2 Button Head Socket Cap Bolts Screws M8*25 Flange Hex Lock Nuts...
- Page 2 (2) Tools required: a. 13mm & 19mm Wrench; b. 13mm & 19mm Shallow Socket; c. Drive Socket Ratchet Wrench;...
- Page 3 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8501), please scan the QR code.
-
Page 4: Installation Instruction
(4) Installation instruction: Step 1: Remove the factory bumper. Ready to install our bumper. Step 2: Assemble the Part “A1”, Part “A2” & Part ”B” with the Hex Bolt(M12*30), Split Lock Washer(D12), Flat Washer(M12*30*2), Hex Nut(M12). - Page 5 Step 3: Install the Part “D” into the bumper. Tighten up the middle two bolts with the Button Head Socket Cap Bolts Screws(M8*25), Split Lock Washer(D8), Flat Washer(M8*16*1). Step 4: Please be sure to add gaskets during installation to achieve stable installation effect.
- Page 6 Step 5: Install the Part “C” into the bumper with the Button Head Socket Cap Bolts Screws(M8*25), Split Lock Washer(D8), Flat Washer(M8*16*1), Flange Hex Lock Nuts (M8). Step 6: Install the bumper into your vehicle with the Hex Bolt(M12*35), Split Lock Washer(D12), Flat Washer(M12*30*2), Hex Nut(M12).
- Page 7 Step 7: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
