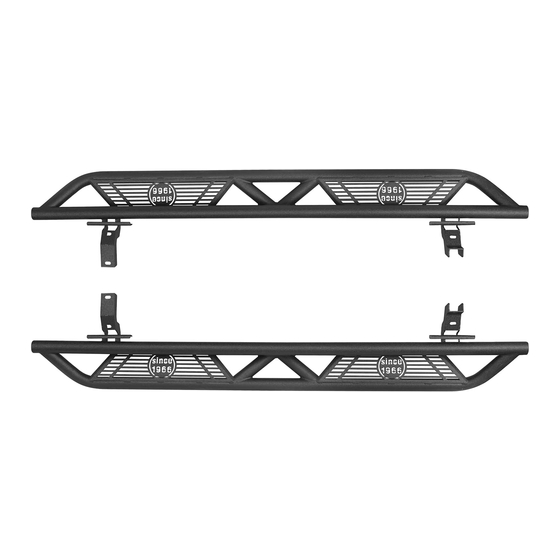

- Page 1 BXG.8903-S Side Step (1) Contents: Part Name Size(mm) Part Name Size(mm) Side Step Split Lock Washer Hex Bolts M10*25 Flat Washer M10*30*2 Hex Bolts M8*25 Flat Washer M8*22*2 Split Lock Washer Flange Hex Lock Nuts...
- Page 2 (2) Tools required: a. Drive Socket Ratchet Wrench; b. 18mm & 13mm Shallow Socket; c. 18mm & 13mm Wrench;...
- Page 3 About 40 minutes, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8903-S), please scan the QR code.
-
Page 4: Passenger Side
Note: The arc of the front bracket is horizontal, side and the passenger side. and the arc of the rear bracket is vertical. Passenger Side Driver Side Step 2: Remove your factory side step, ready to install Hooke Road Side Step. - Page 5 Step 3: Before installation, please remove the rear side mounting bracket of the original car to install the Hooke Road products. As the picture shown. Step 4: Install the passenger side step into your vehicle with the Hex Bolts (M8*25), Flat Washer (M8*22*2), Split Lock Washer (M8), Flange Hex Lock Nuts (M8), Hex Bolts (M10*25), Flat Washer (M10*30*2), Split Lock Washer (M10).
- Page 6 Step 5: Repeat the above installation steps in the driver side. Step 6: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 7 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. to find your parts Hooke Road...
