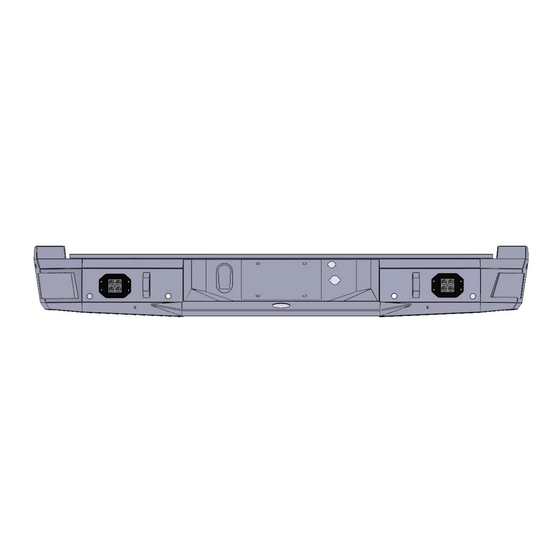

- Page 1 BXG.8303 Rear Bumper (1) Contents: Part Name Size(mm) Picture Hex Bolts M12*35 Split Lock Washer Flat Washer M12*30*2 Hex Nuts Button Head Socket Cap Bolts Screws M4*16 L-Wrench...
- Page 2 About 1 hour, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8303), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: First, remove the original car rear bumper radar harness. Use a 10mm wrench to unscrew the screws behind the original car bracket, and then unplug the harness connector. Step 2: Before installing our product, ensure that the vehicle is parked in a safe and level location, and remove the original car rear bumper.
- Page 4 Step 3: Insert the plug of the original car radar harness into the corresponding radar socket, secure the radar to the rear bumper using the sensor bracket, and fasten it with M4*16 screws to prevent shaking or damage during driving. Put the trailer connector into the bumper.
- Page 5 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 6 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
