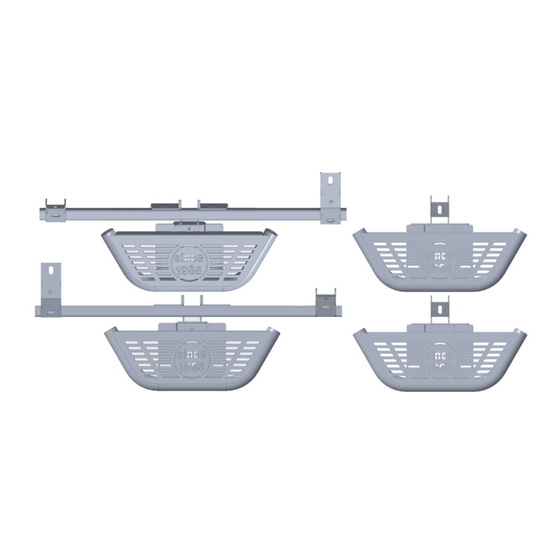

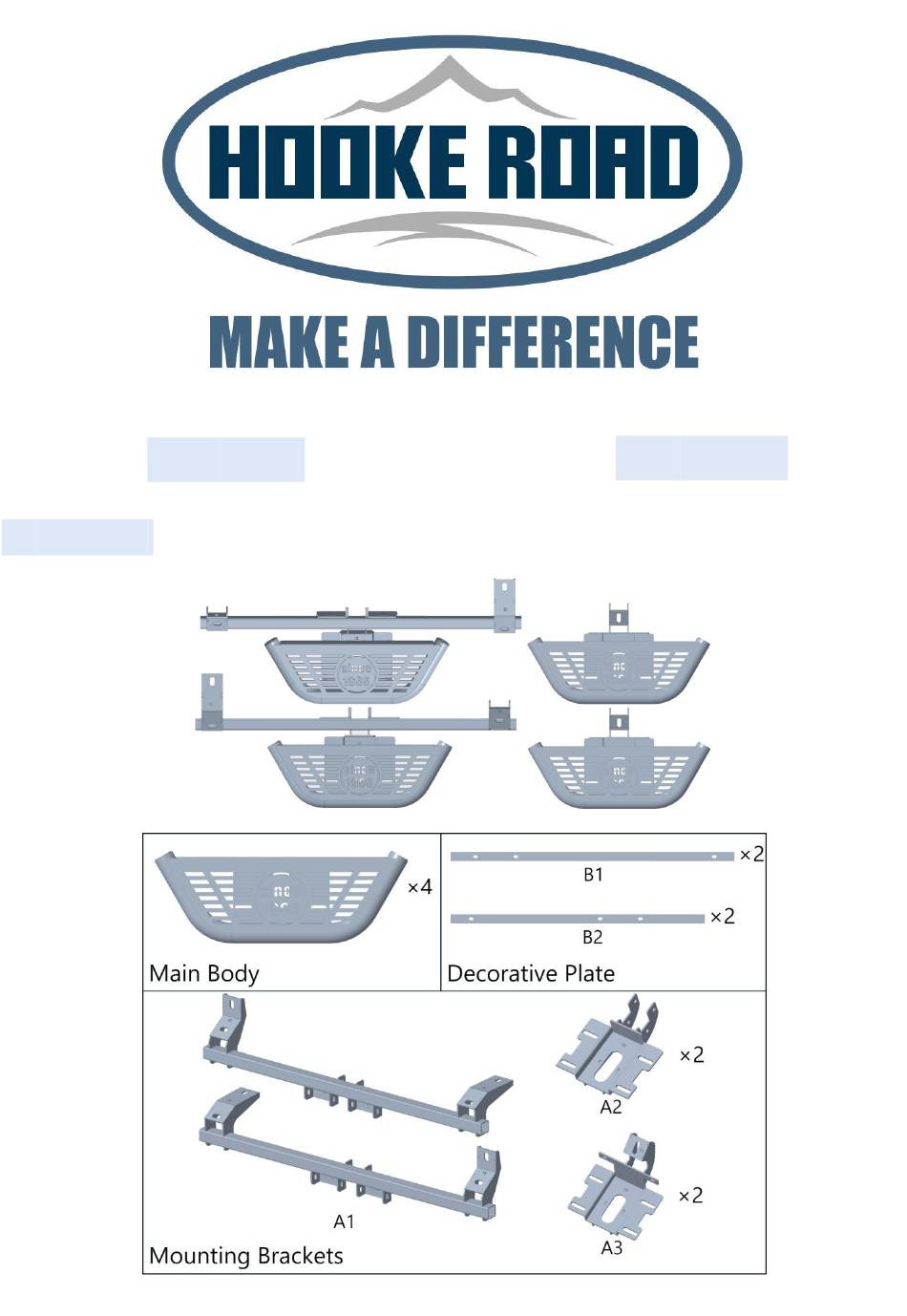

- Page 1 BXG.8930-S Side Steps (1) Contents:...
- Page 2 Part Name Size(mm) Picture Hex Bolts M10*20 Button Head Socket Cap Bolts Screws M8*25 Button Head Socket Cap Bolts Screws M8*20 Split Lock Washer Split Lock Washer Flat Washer M10*20*2 Flat Washer M8*20*2 Flange Hex Lock Nuts (2) Tools required: a.
- Page 3 About 1 hour, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8930-S), please scan the QR code.
- Page 4 Driver Side Installation Step 1: Before installation, please remove the side mounting bracket of the original car to install the Hooke Road products. As the picture shown. Step 2: Remove the factory Side Steps, ready to install our product. First, distinguish the mounting bracket A1.
- Page 5 Step 3: Assemble mounting bracket A1 and A2 with the M8*25 button head socket cap bolts screws. Tighten up those bolts. Step 4: Lift up the mounting bracket into the position. Make sure that mounting locations are correct.
- Page 6 Step 5: Install the mounting bracket to your vehicle with M10*20 hex head screws, Tighten up those bolts. Step 6: Distinguish the decorative plate B1 and B2. NOTE: The decorative plate B1 is longer than B2. The rear side of the decorative plate B2 is curved, and the curved side is installed inward.
- Page 7 Step 7: Use M8*25 button head socket cap bolts screws to secure the decorative plate B1 to the front side of your vehicle. Tighten up those bolts. Step 8: Use M8*25 button head socket cap bolts screws to secure the decorative plate B2 to the rear side of your vehicle.
- Page 8 Step 9: Use M8*25 button head socket cap bolts screws to secure the mounting bracket A3 to your vehicle. Don’t tighten up those bolts. Step 10: Install the mounting bracket to you vehicle with M10*20 hex head screws. Then, tighten up all bolts.
- Page 9 Step 11: Assemble mounting bracket and main body with the M8*20 button head socket cap bolts screws. Step 12: Repeat the same procedure on the passenger side.
- Page 10 Step 13: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
