BENDIX MC-30 TRAILER ABS CONTROLLER Manual page 22

4S/2M - SIDE CONTROL
Ground
7-Pin
Connector
Ignition
Power
Brake Light
Power
NOTE:
For side control, MOD1 must
control the right side.
Dual Axle Trailer
4S/2M - AXLE CONTROL
Ground
7-Pin
Connector
Ignition
Power
Brake Light
NOTE:
Power
For axle control, MOD1
must control the front axle.
Dual Spread Axle Trailer
™

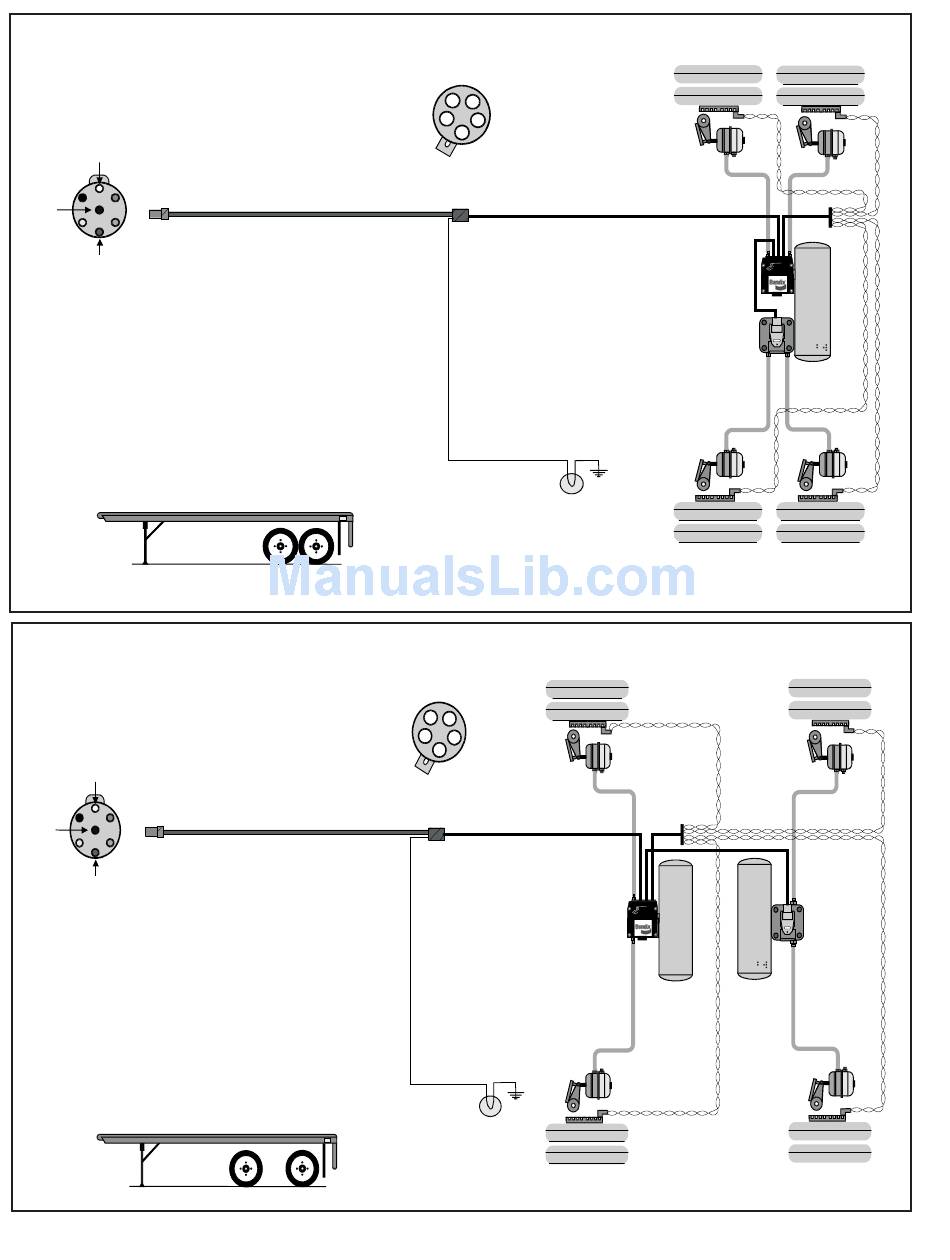

FIGURE 17 - MC-30 CONTROLLER SYSTEM APPLICATIONS (2 OF 2)
22
A
Brake Light Power
B
Ignition Power
C
NC
D
Warning Lamp
E
Ground
Trailer Chassis Harness
ABS
A Brake Light Power
B Ignition Power
C NC
D Warning Lamp
E Ground
Trailer Chassis Harness
ABS
D
C
A
E
B
5-Pin
Connector
Pigtail Harness
ABS Light
Right Front
WS Sensor
D
C
A
E
B
5-Pin
Connector
Pigtail Harness
MC-30
MOD1
ABS Light
Left Front
WS Sensor
Right Front Right Rear
WS Sensor WS Sensor
MC-30
AntiLock
MOD1
MOD2
Left Front Left Rear
WS Sensor WS Sensor
Right Rear
WS Sensor
AntiLock
MOD2
Left Rear
WS Sensor
