BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS Introduction Manual page 31

™
EC-60 Controller Wire Harness Connector
Part Numbers and Pin Assignments:

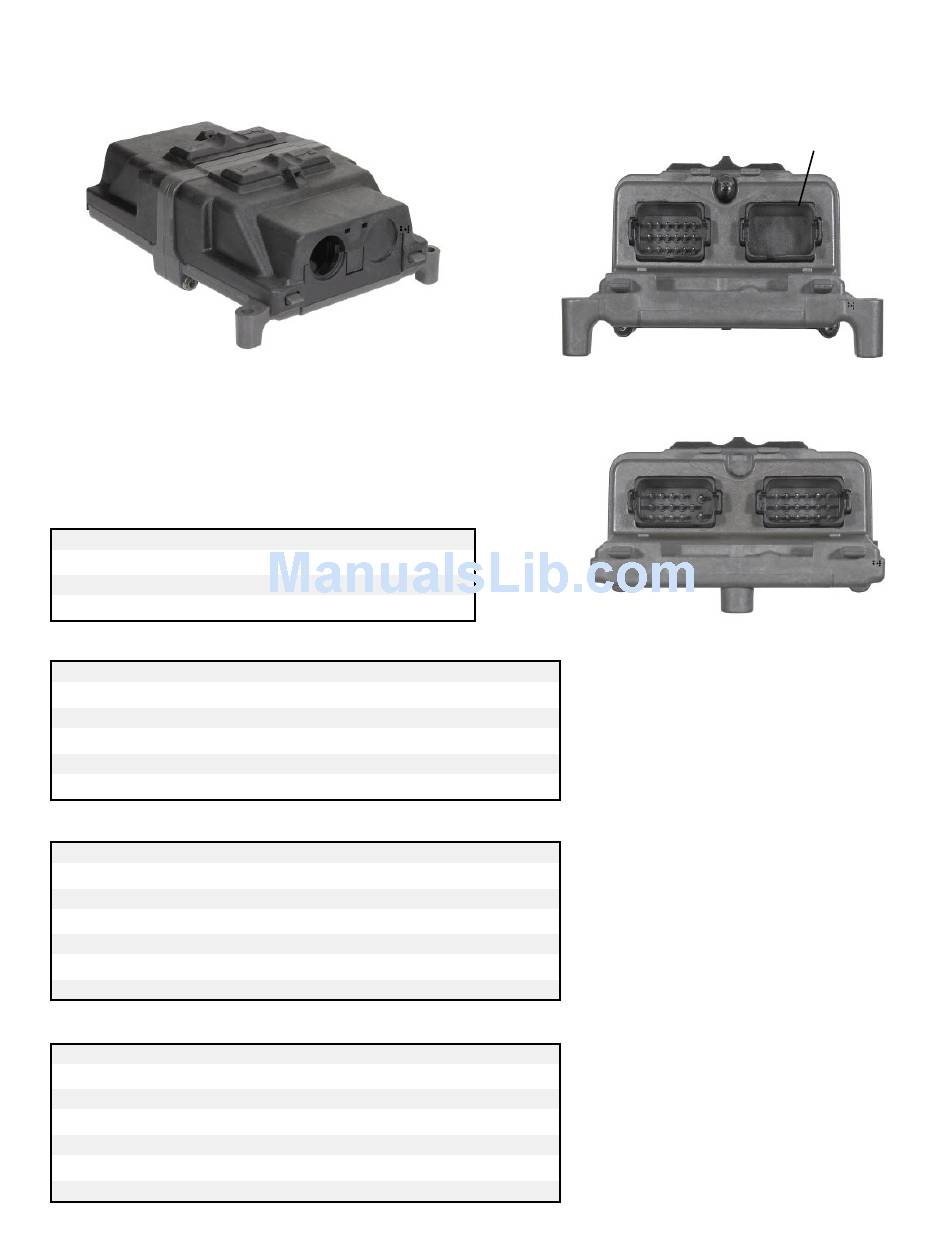

PREMIUM FRAME
Premium Frame Model EC-60
Premium frame models utilize three Deutsch
enactors for wire harness connections.
Connector Designation Number of Contacts
X1
X2
X3
Premium Frame X1 Connector Pin Assignments
Pin Designation Pin Designation
1 J1587 (B) 6
2 J1939 Low 7
3 WSS SA Left (+) 8
4 WSS SA Right (+) 9
5 J1587 (A) 10
Premium Frame X2 Connector Pin Assignments
Pin Designation Pin Designation
1 WSS DA Left (+) 7
2 WSS DA Left (-) 8
3 WSS DA Right (+) 9
4 WSS DA Right (-) 10
5 SLS 11
6 ABS ORS 12
Premium Frame X3 Connector Pin Assignments
Pin Designation Pin Designation
1 Reserved 7
2 Not Used 8
3 WSS AA Left (+) 9
4 WSS AA Left (-) 10
5 WSS AA Right (+) 11
6 WSS AA Right (-) 12
1 AWD vehicles only. (AWD Transfer Case)
™ Controller
Deutsch Part Number
15 DT16-15SA-K003
18 DT16-18SB-K004
18 DT16-18SC-K004
Pin Designation
J1939 High 11 Trailer ABS WL
WSS SA Left (-) 12 ABS WL
WSS SA Right (-) 13 ATC Lamp/ATC ORS
Ignition 14 Battery
Retarder 15 Ground
Pin Designation
PMV SA Left HLD 13 PMV SA Left CMN
PMV SA Left REL 14 PMV SA Right CMN
PMV SA Right HLD 15 PMV DA Left CMN
PMV SA Right REL 16 PMV DA Right CMN
PMV DA Left HLD 17 PMV DA Right HLD
PMV DA Left REL 18 PMV DA Right REL
Pin Designation
TCV 13 TCV CMN
Diff. Lock SOL 1 14 Diff. Lock SOL CMN
PMV AA Left HLD 15 PMV AA Left CMN
PMV AA Left REL 16 PMV AA Right CMN
Reserved 17 PMV AA Right HLD
Reserved 18 PMV AA Right REL
X3
X1
1
Connector
not used
X2
