BENDIX EC-60 ABS-ATC STD-PREM CONTROLLERS Introduction Manual page 30

™
EC-60 Controller Wire Harness Connector
Part Numbers and Pin Assignments:
PREMIUM CAB
X1

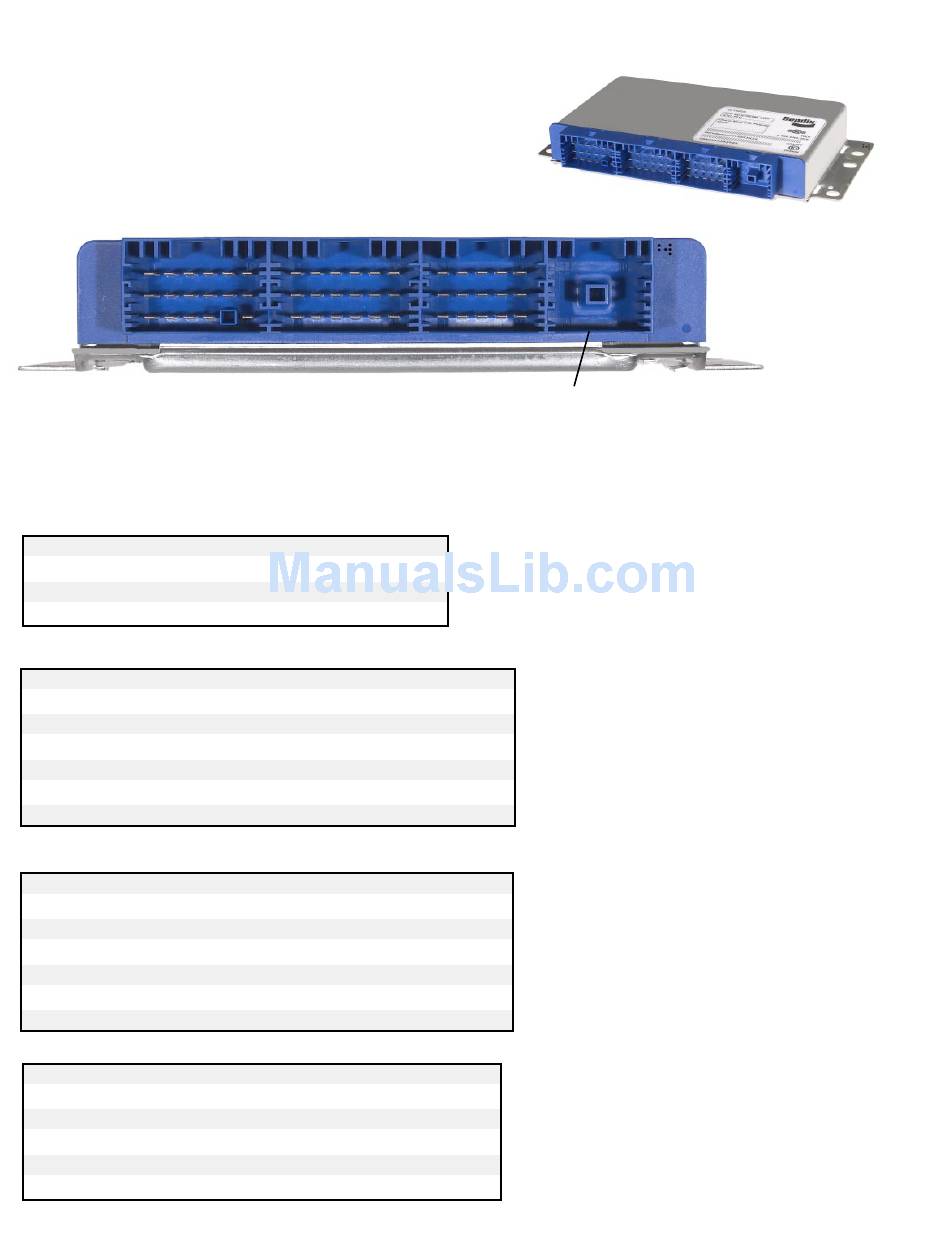

Premium Cab Model EC-60
Premium cab models utilize three AMP connectors
for wire harness connections.
Connector Designation Number of Contacts
X1
X2
X3
Premium Cab X1 Connector Pin Assignments
Pin Designation Pin Designation
1 Ground 7
2 Trailer ABS WL 8
3 Ignition 9
4 TCV CMN 10
5 TCV 11
6 ATC Lamp/ATC ORS 12
Premium Cab X2 Connector Pin Assignments
Pin Designation Pin Designation
1 PMV SA Left HLD 7
2 PMV SA Left REL 8
3 PMV SA Left CMN 9
4 PMV SA Right HLD 10
5 WSS SA Left (+) 11
6 PMV SA Right CMN 12
Premium Cab X3 Connector Pin Assignments
Pin Designation Pin Designation
1 ABS ORS 6
2 Diff. Lock SOL 1 7
3 Diff. Lock SOL CMN 1 8
4 PMV AA Left HLD 9
5 Reserved 10
1 AWD vehicles only. (AWD Transfer Case)
30
X2
™ Controller
AMP Part Number
17 1718091-1
18 8-968974-1
15 8-968973-1
Pin Designation
J1939 Low 13 J1587 (B)
J1939 High 14 J1587 (A)
SLS 15 ABS WL Interlock
WSS DA Right (+) 16 Battery
WSS DA Right (-) 17 Retarder
ABS WL Ground 18 ABS WL
Pin Designation
PMV SA Right REL 13 PMV DA Right REL
WSS SA Left (-) 14 WSS SA Right (-)
PMV DA Right CMN 15 WSS DA Left (+)
PMV DA Right HLD 16 PMV DA Left HLD
WSS SA Right (+) 17 PMV DA Left REL
PMV DA Left CMN 18 WSS DA Left (-)
Pin Designation
PMV AA Left CMN 11 WSS AA Left (+)
PMV AA Left REL 12 WSS AA Right (+)
Reserved 13 PMV AA Right REL
PMV AA Right CMN 14 WSS AA Left (-)
PMV AA Right HLD 15 WSS AA Right (-)
X3
Connector
not used
