BENDIX EC-14 ANTILOCK CONTROLLER Manual page 24

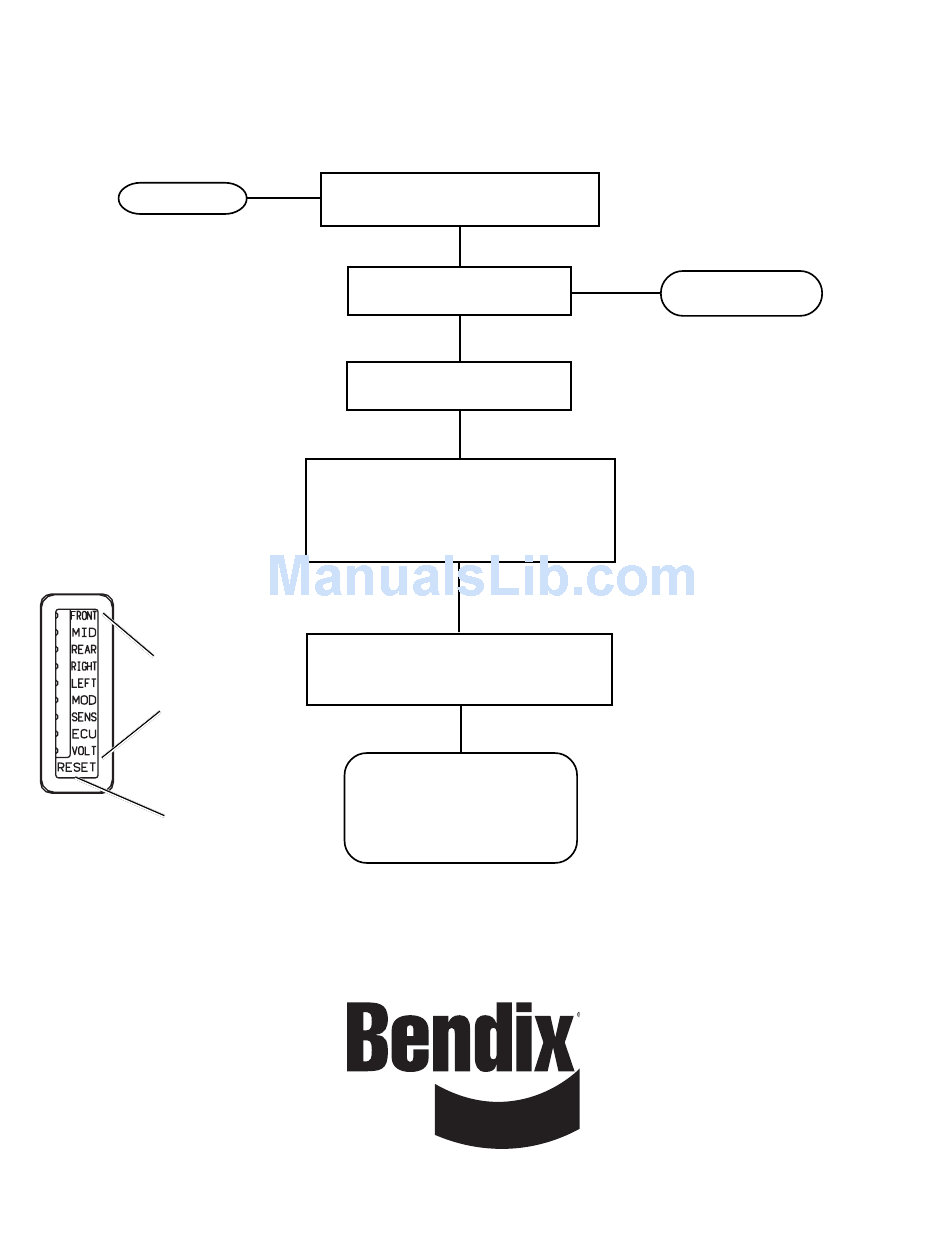

TESTING FOR FALSE INDICATION CAUSED BY WHEEL SENSOR COMPONENTS
START HERE
™
TESTING EC-14
CONTROLLER LEDs
ALL LEDS
ILLUMINATED
HOLD
MAGNET
HERE
24
TROUBLESHOOTING
SECTION X
Hold a magnet on RESET of the
EC-14 ™ controller and note LEDs
Are all LEDs
illuminated?
Remove magnet
Turn the ignition off. Refer to Section VII
Part A "Testing the wheel sensor" and
perform tests and inspections "B"
through "F" in the large box.
Run vehicle at 10 MPH or more for 30
seconds or more. Bring vehicle to a
stop and turn off ignition.
Repeat "Initial Start-up
Procedure." If testing has
returned to this step twice,
replace the EC-14
controller. Retest.
