VDO SENSORS - INSTRUMENTATION V3.0 Manual page 88

Tubular-Type Senders – With Warning Contact, Common Ground or Insulated Return* (ø 54 mm)
With Warning Contact,
Common Ground or Insulated Return
Technical Data
Rated voltage:
6 V to 24 V,
Ground on tank housing
Operating temperature:
-25° C to +65° C
Installation from above
* Depending on connection
88

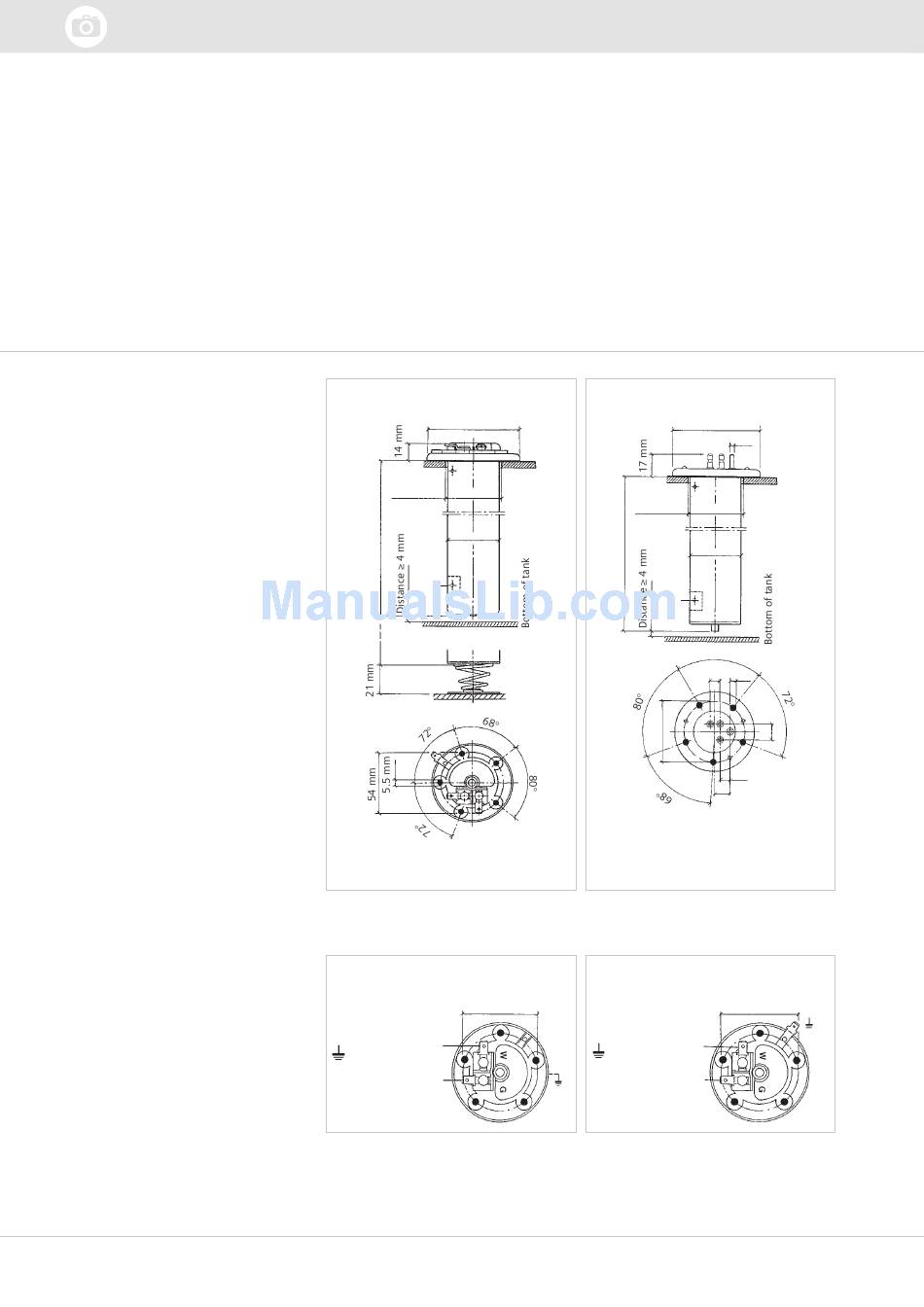

Dimensions
Form 1
ø 71 mm
ø 41 mm
Installation ø
ø 40 mm
•
or
•
Before installation,
remove adhesive tape and pin
Type of Connection
I
Blade connector
54 mm
6.3 x 0.8 mm (2x)
WK = Warning contact
G = Sensor
WK
= Ground
G
(ø 54 mm)
*
Special Features
Form 2
ø 71 mm
Installation ø ø 41 mm
ø 40 mm
•
68°
9 mm 3.5 mm
9 mm
14 mm
•
Before installation,
remove adhesive tape and pin
II
Blade connector
6.3 x 0.8 mm (3x)
WK = Warning contact
G = Sensor
WK
= Ground
G
54 mm
