VDO SENSORS - INSTRUMENTATION V3.0 Manual page 60

RPM and Speed Senders – Generator-Type Senders
Generator-Type Senders
Technical Data
Electrical connection:
2-pole or 3-pole, Insulated Return
Driving torque:
500 pcm max.
Rotational speed:
3000 min max.
-1
No-load voltage:
19.3 V at 2000 min
-1
Voltage tolerance:
±1 % at nominal value at +20° C
Operating temperature:
-25° C to +90° C
Protection:
IP54 acc. to DIN 40050
60

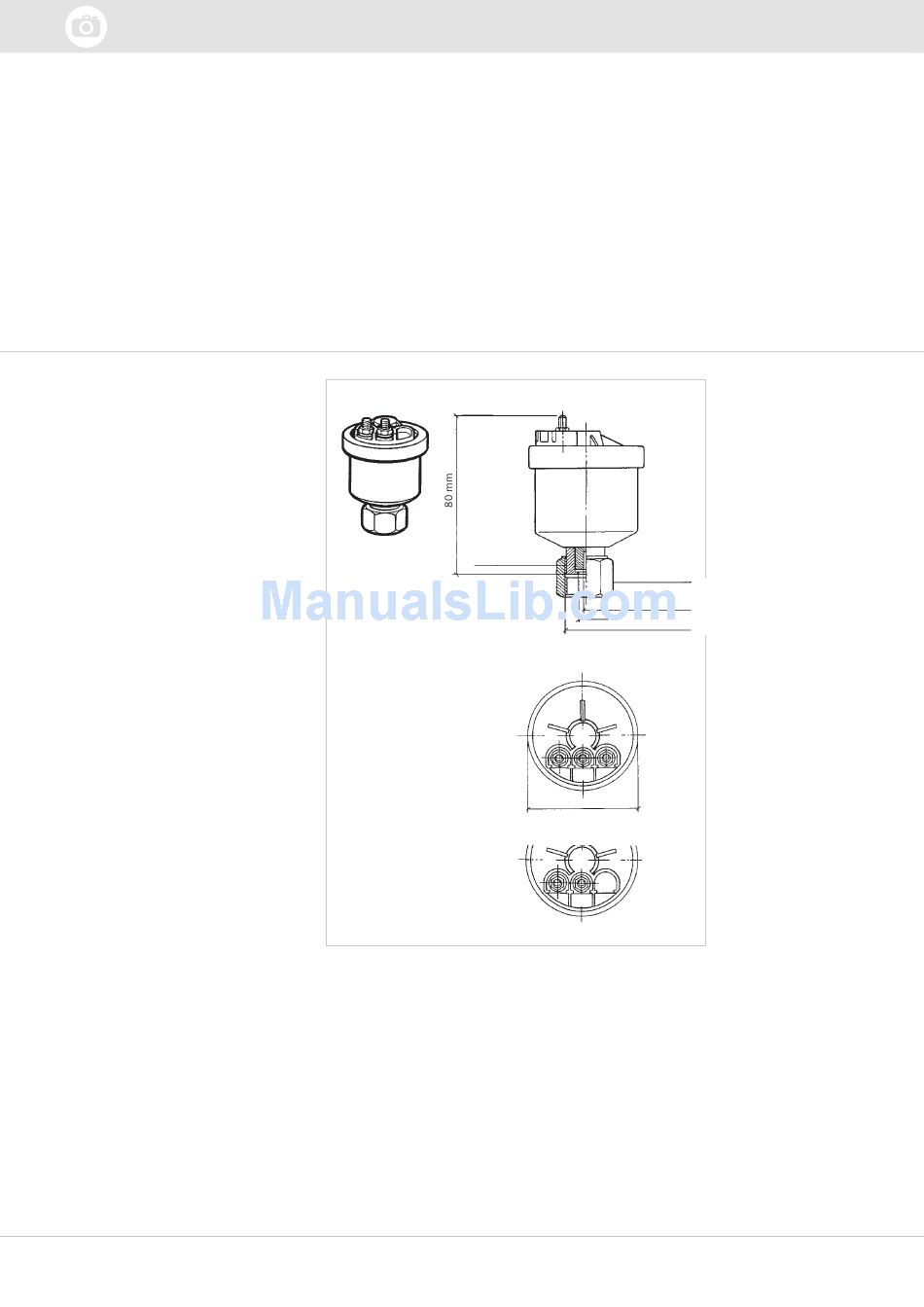

Dimensions
M22 x 1.5
left hand
3-pole
2-pole
M = Ground
G = Sensor
Z = Odometer
Connecting nut
Slit 3 mm
ø 11.5 mm
Thread
M
Z
G
M
61 mm
G M
M
