RPM and Speed Senders – Frequency-Generator Senders
Frequency-Generator Senders
Technical Data
Rated voltage:
Independent voltage
Electrical connection:
2-pole, Insulated Return
Operating temperature:
-25° C to +100° C
Driving torque:
30 pcm max.
Rotational speed:
3000 min max.
-1
Number of cycles:
6
Resistance:
75 Ω ±5 Ω
Frequency:
100 Hz /1000 min
-1
58

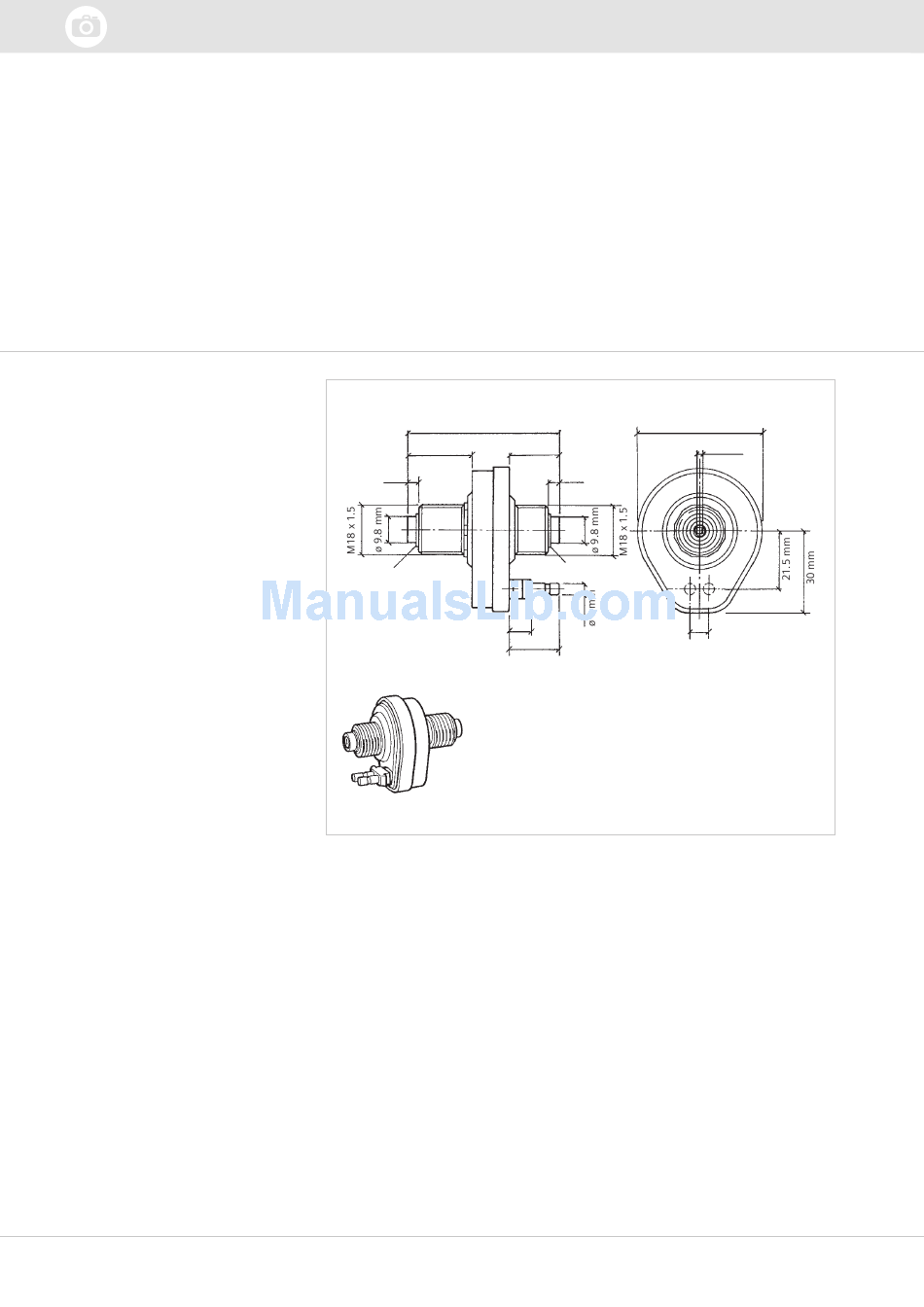

Dimensions
57 mm
23.5 mm
4 mm
**
18.5 mm
4 mm
**
7.5
*
mm
18 mm
* Push-on connector suitable for:
– Connector housing (Kostal 1040027499-0)
– Cover for housing (Kostal 1040027913-0)
– Connector socket (2x) (Kostal 1023922077-0)
** Gasket:
– Oil and grease-resistant
– Temperature-resistant
– From -35° C to +120° C
46 mm
2.6 mm
7 mm
