Temperature Switches – Typ A: 1.2–3 W, Common Ground
Type A: 1.2–3 W, Common Ground
Technical Data
Rated voltage:
6 V to 24 V
Switching capacity:
1.2 W to 3 W non-inductive
Type of contact:
SS = Contact closes as temperature rises
OS = Contact opens as temperature rises
Contacting mode:
Slow-acting
Break point:
5° C max. below make point
48

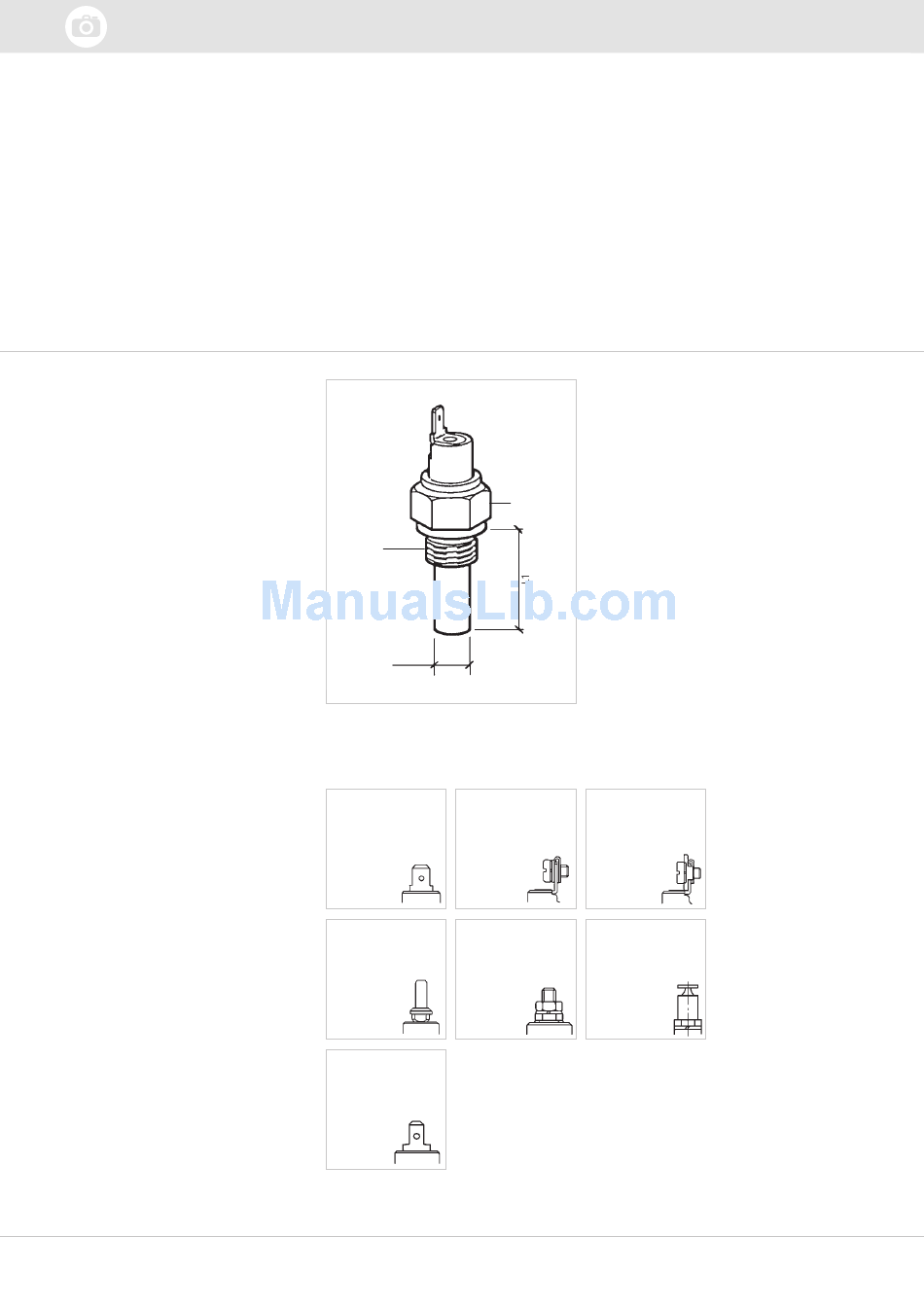

Dimensions
Thread
ø
Type of Connection
A B
6.3 x 0.8 mm (2x)
D E
Connector pin ø 4 mm Hex nut
H
4.8 x 0.8 mm
Hexagon
C
With cable lug holder
M4 M4
F
ø 6.3 x 0.8 mm
M4
