VDO SENSOR KITAS 2171-50 Datasheet

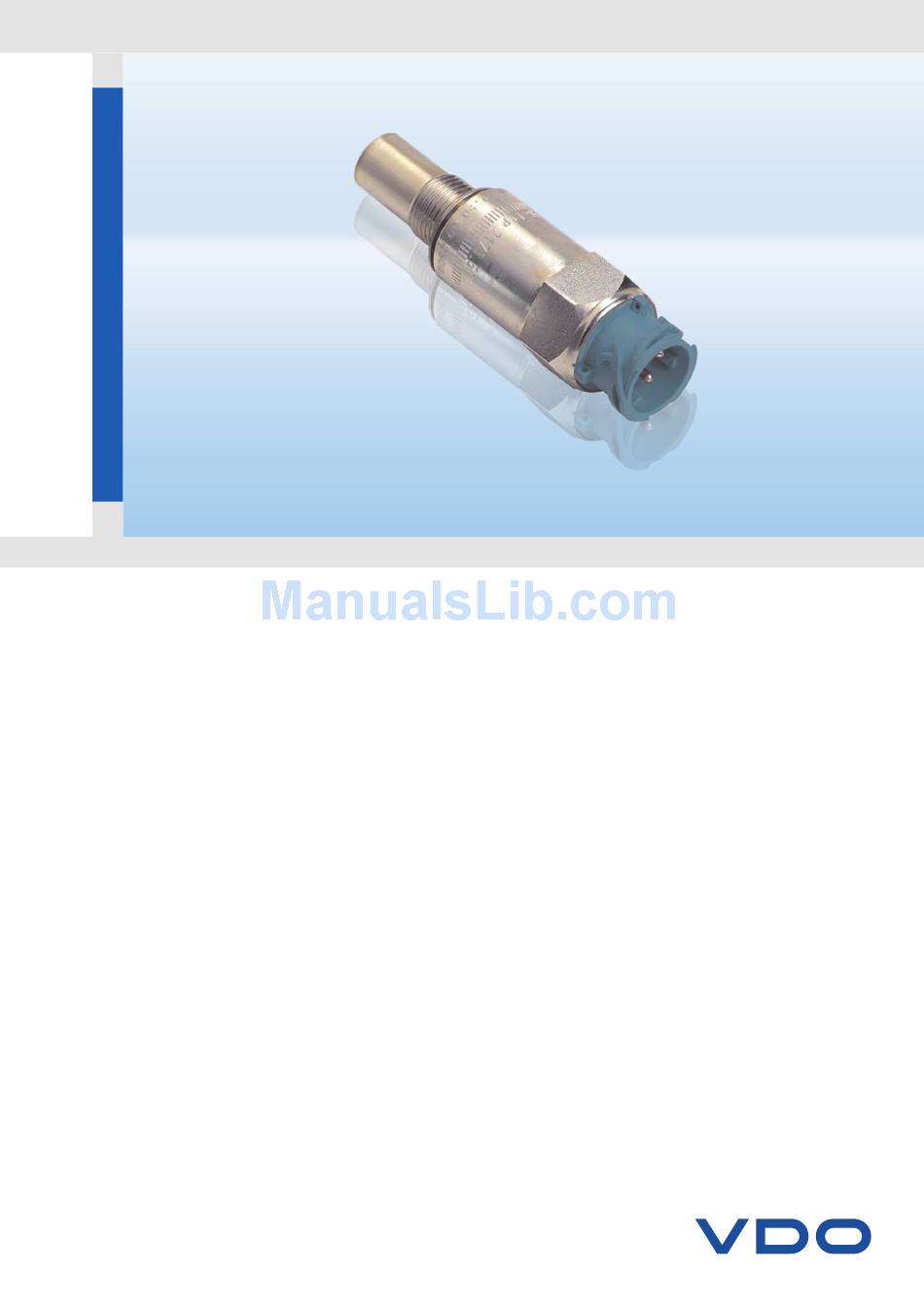

Sensor
KITAS 2171-50
The intelligent KITAS sensors form a new generation
of speed sensors. With the innovative crypto-graphi-
cal IC the gear-box signals can be transmitted
tamper-proof without an armoured cable for the first
time.
A dynamic element converts the revolution of an
impulse- or gear wheel into electrical signals.
In parallel to the encrypted revolution data the
conventional real-time signal is also available.
Through a comparison of these two sources the
tachograph can detect data manipulations safely.
Therefore the KITAS sensor and the tachograph form
an authorised system.
A link between the serial numbers of the KITAS
sensor and the tachograph enchances the security
even further.
Features
• Conform with Regulation VO (EG) No. 1360/2002
• Certificate through BSI according to ITSEC, level E
3 High, as per supplement 1B
• Full fills the Generic Security Targets as per
supplement 1B
• Integrated in the gearbox
• Data security by cryptological procedure
(TRIPLES DES)
• Non-contact measuring system (inductive)
• Sealing possibility
• Replace the steel armoured cable
• Interface according to ISO 16844-3
• Standard plug according to ISO 15170
• Comparison of the real-time signal with the
encoded signal
• Power-On reset function
• Storage of additional facts (identification,
installation)
Use
• Only for use in the new tachograph generation
MTCO 1324 (Modular Tachograph) and DTCO
1381 (Digital Tachograph)
