Tubular-Type Senders – Without Warning Contact, Common Ground or Insulated Return* (ø 80 mm)
Without Warning Contact,
Common Ground or Insulated Return
Technical Data
Rated voltage:
6 V to 24 V
Operating temperature:
-25° C to +70° C
Installation from above
* Depending on connection
84

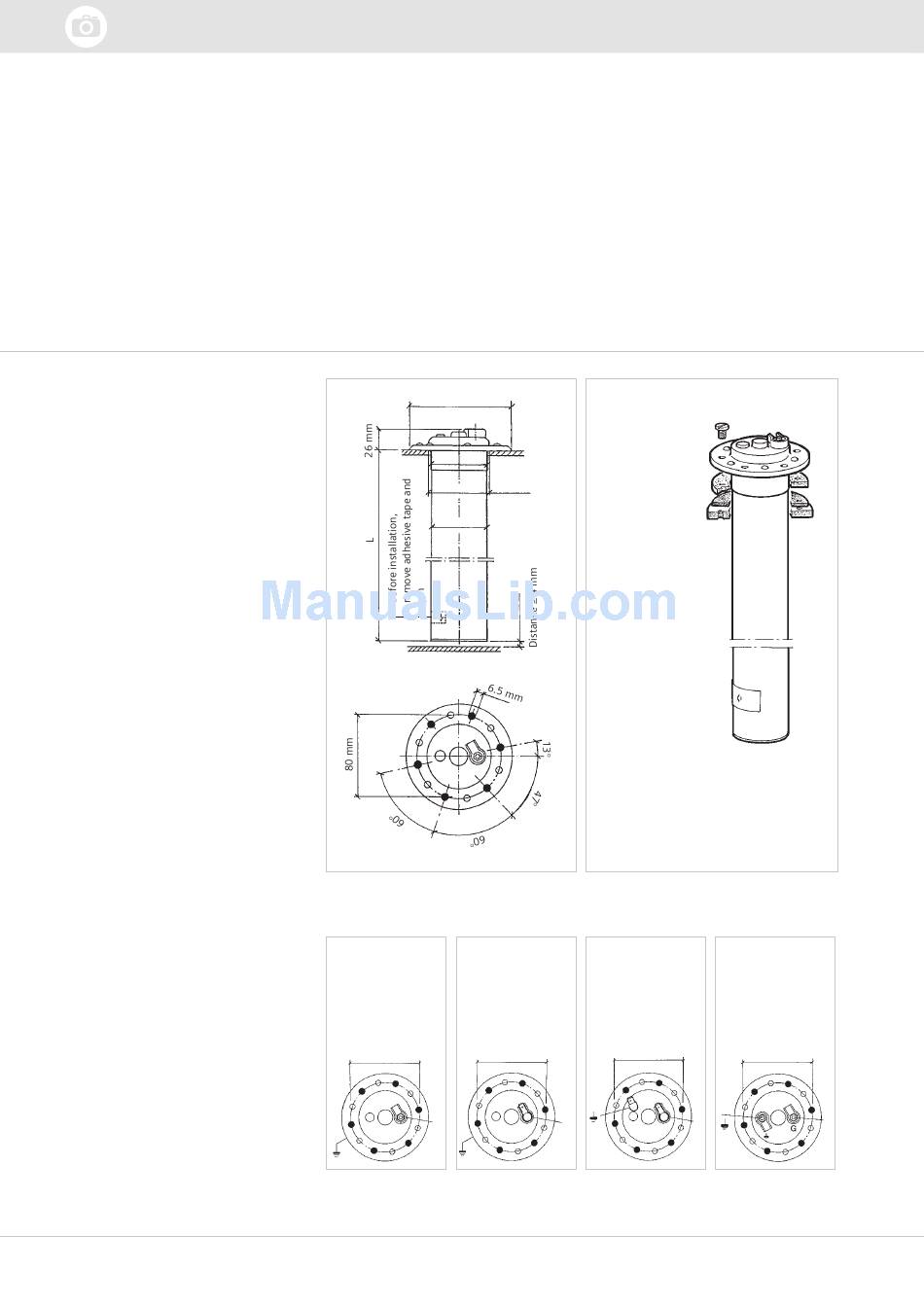

Dimensions
Ø 100 mm
Ø 56 mm
Ø 63 mm Installation ø
Ø 55 mm
Bottom of tank
Type of Connection
I II
Hex nut (M5) Blade terminal
and lock washer 6.3 x 0.8 mm
Ground on tank Ground on tank
housing housing
80 mm 80 mm
G
(ø 80 mm)
*
Special Features
A Seal
C
A1 Cork
6x
ø 95.5 x 5 mm
A2 Rubber
ø 95.2 x 2.5 mm
B Flange
C Flat head screw
M6 x 10
III IV
Blade terminal/ Hex nut (M5)
Ground connector and lock washer (2x)
Ground on tank Insulated Return
housing
80 mm
G G
A1
A2
B
80 mm
G
