Temperature Switches – Typ B: 100/120 W, Insulated Return
Type B: 100/120 W, Insulated Return
Technical Data
Rated voltage:
6 V to 12 V
Switching capacity:
100/120 W
Make point:
Contact closes as temperature rises
Break point:
Contact opens as temperature falls
2-blade connection:
A6.3 x 0.8 DIN 46244
* Switching capacity 100 W
** Switching capacity 120 W
52

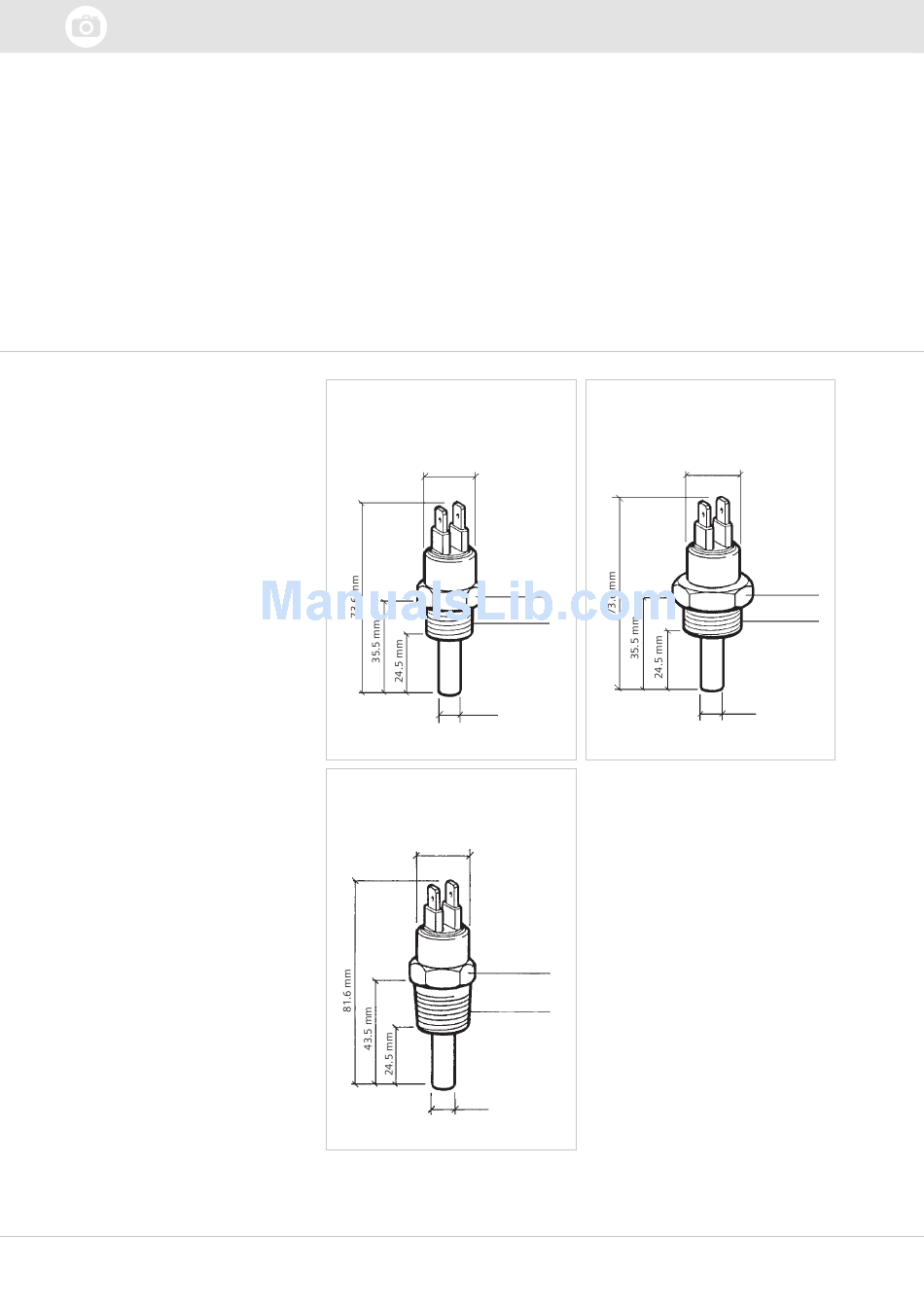

Dimensions
Form A
ø 21 mm
Form C
ø 21 mm
ø 8 mm
Form B
Hex width
22 mm
Thread
ø 8 mm
Hex width
22 mm
Thread
ø 21 mm
Hex width
27 mm
Thread
ø 8 mm
