VDO SENSORS - INSTRUMENTATION V3.0 Manual page 62

RPM and Speed Senders – Hall-Effect Senders
Hall-Effect Senders
Technical Data
Electrical connection:
3-pole, Insulated Return
Sensor supply:
– Voltage: 10.8 V to 16 V
– Current: 13 mA
Operating temperature:
-30° C to +130° C
Response time:
t r = 10 µs, t f = 10 µs
Rotational speed:
3500 min max.
-1
Duty cycle:
(t on + t off )/t on = 1.25 to 5
Protection:
IP57 acc. to DIN 40050
(with sealed transmission and
electrical connection only)
62

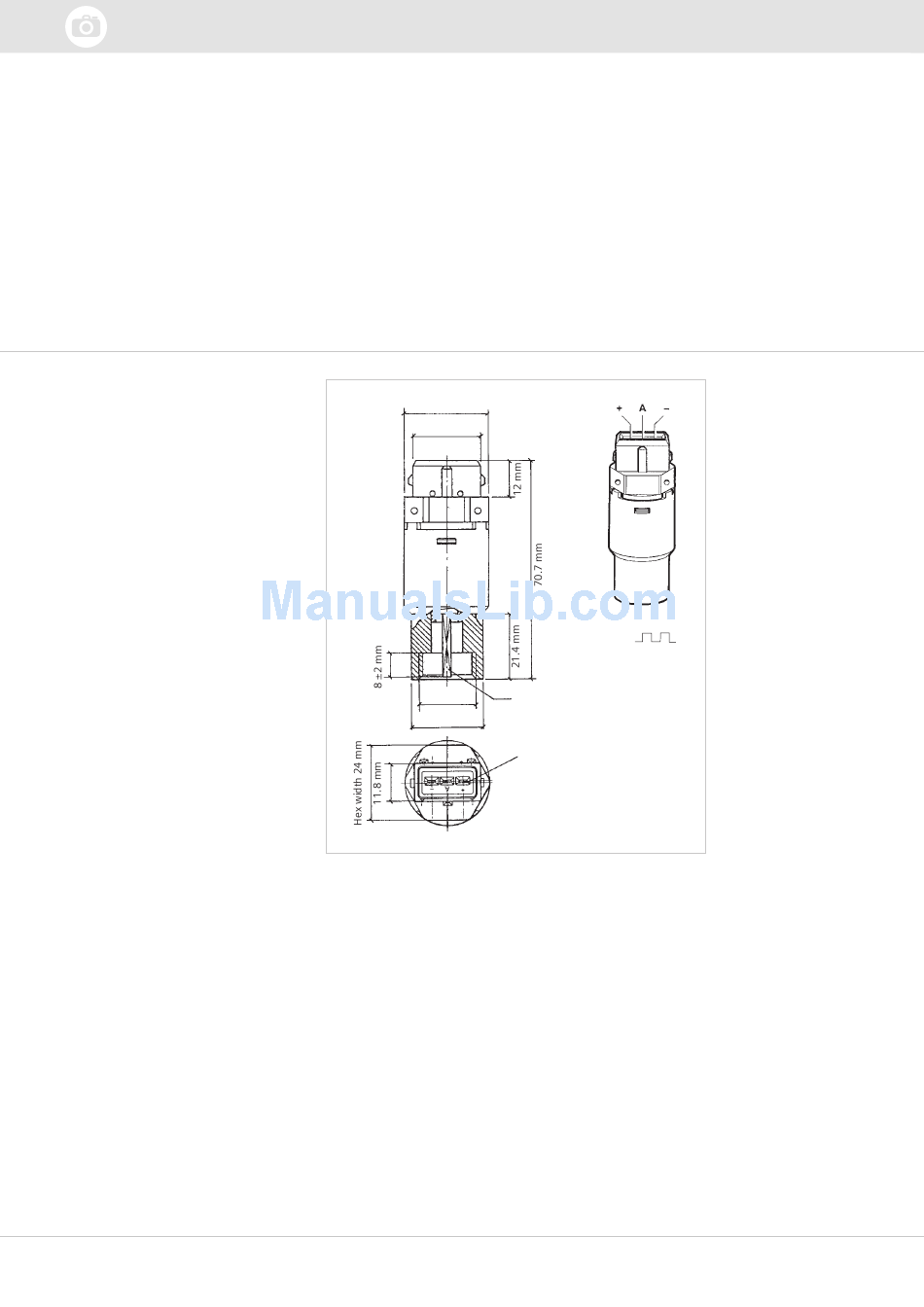

Dimensions
ø 27.2 mm
21.6 mm
M18 x 1.5
ø 22.5 mm
+ = 12 V
A =
- = Ground
Drive part 2.6 mm
Push-on connector:
Blade connector 2.8 x 0.8 mm (3x)
