inverter. The fuses are available in 110, 200, 300, and 400 amp sizes. Contact your Trace dealer to
order; see the Options section of this manual for more information.
To order a fuse with fuse block from a Trace Dealer, order part number TFB
followed by the desired fuse size in amps (i.e. TFB 400). When ordering
replacement fuses, the part number is TF followed by the size in amps of the
desired fuse (i.e. TF400).

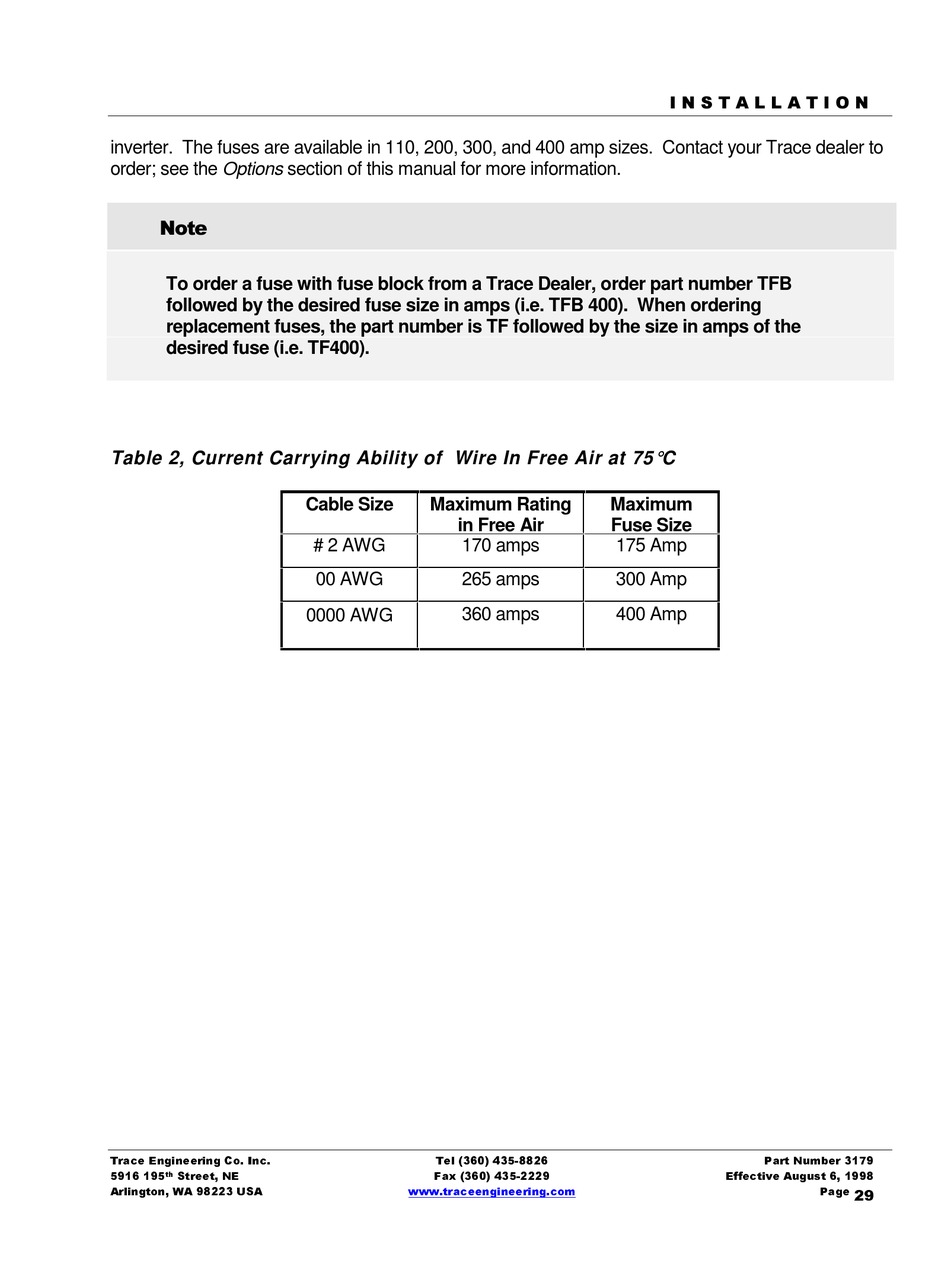

Table 2, Current Carrying Ability of Wire In Free Air at 75°C
WK
Cable Size Maximum Rating
in Free Air
# 2 AWG 170 amps
00 AWG 265 amps
360 amps
0000 AWG
Maximum
Fuse Size
175 Amp
300 Amp
400 Amp
