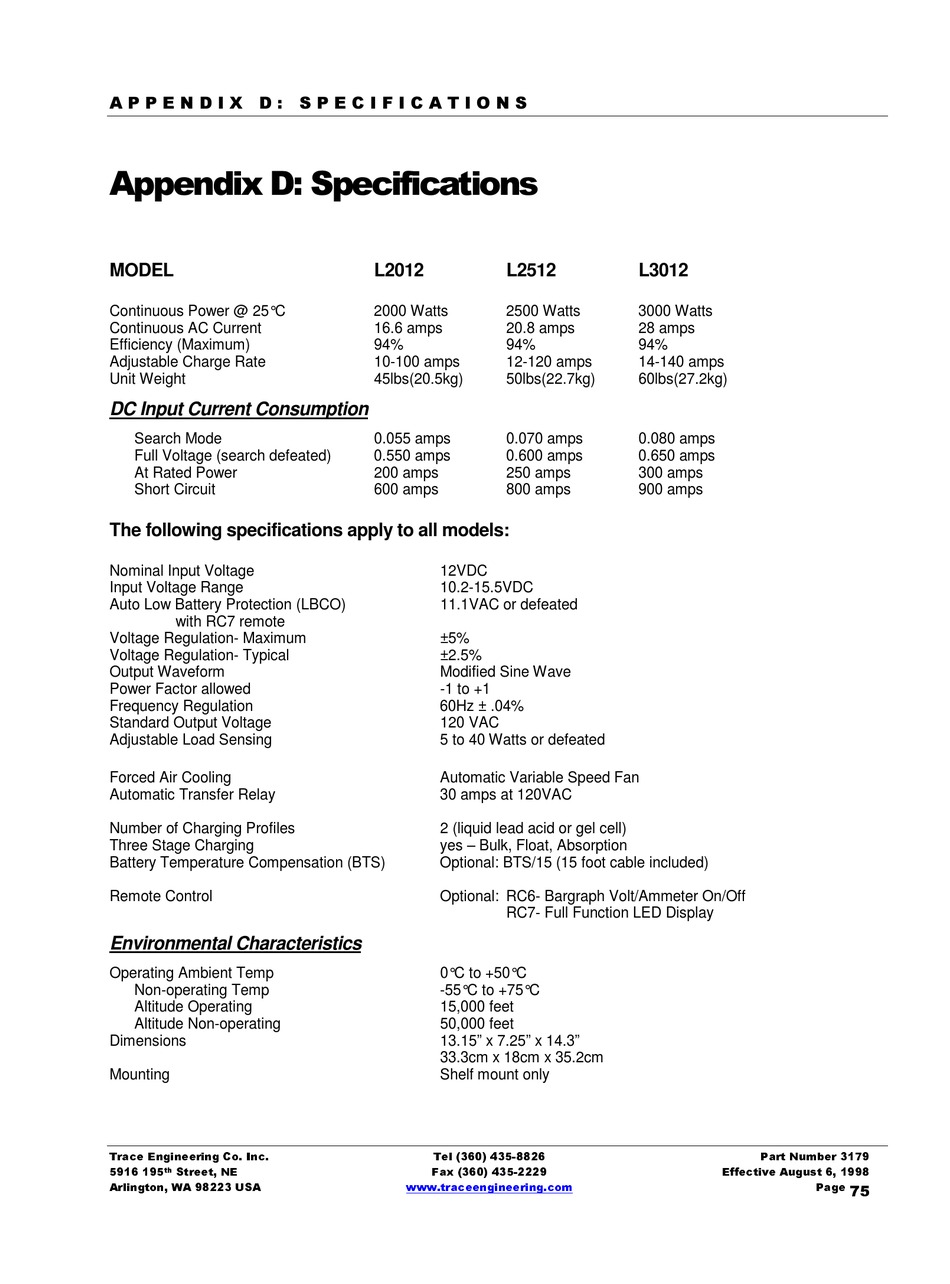

Trace Engineering LEGEND II Manual page 83

MODEL
Continuous Power @ 25°C
Continuous AC Current
Efficiency (Maximum)
Adjustable Charge Rate
Unit Weight
DC Input Current Consumption
Search Mode
Full Voltage (search defeated)
At Rated Power
Short Circuit
The following specifications apply to all models:
Nominal Input Voltage
Input Voltage Range
Auto Low Battery Protection (LBCO)
with RC7 remote
Voltage Regulation- Maximum
Voltage Regulation- Typical
Output Waveform
Power Factor allowed
Frequency Regulation
Standard Output Voltage
Adjustable Load Sensing
Forced Air Cooling
Automatic Transfer Relay
Number of Charging Profiles
Three Stage Charging
Battery Temperature Compensation (BTS)
Remote Control
Environmental Characteristics
Operating Ambient Temp
Non-operating Temp
Altitude Operating
Altitude Non-operating
Dimensions
Mounting
WK
L2012 L2512
2000 Watts 2500 Watts
16.6 amps 20.8 amps
94% 94%
10-100 amps 12-120 amps
45lbs(20.5kg) 50lbs(22.7kg)
0.055 amps 0.070 amps
0.550 amps 0.600 amps
200 amps 250 amps
600 amps 800 amps
12VDC
10.2-15.5VDC
11.1VAC or defeated
±5%
±2.5%
Modified Sine Wave
-1 to +1
60Hz ± .04%
120 VAC
5 to 40 Watts or defeated
Automatic Variable Speed Fan
30 amps at 120VAC
2 (liquid lead acid or gel cell)
yes – Bulk, Float, Absorption
Optional: BTS/15 (15 foot cable included)
Optional: RC6- Bargraph Volt/Ammeter On/Off
RC7- Full Function LED Display
0°C to +50°C
-55°C to +75°C
15,000 feet
50,000 feet
13.15" x 7.25" x 14.3"
33.3cm x 18cm x 35.2cm
Shelf mount only
L3012
3000 Watts
28 amps
94%
14-140 amps
60lbs(27.2kg)
0.080 amps
0.650 amps
300 amps
900 amps
