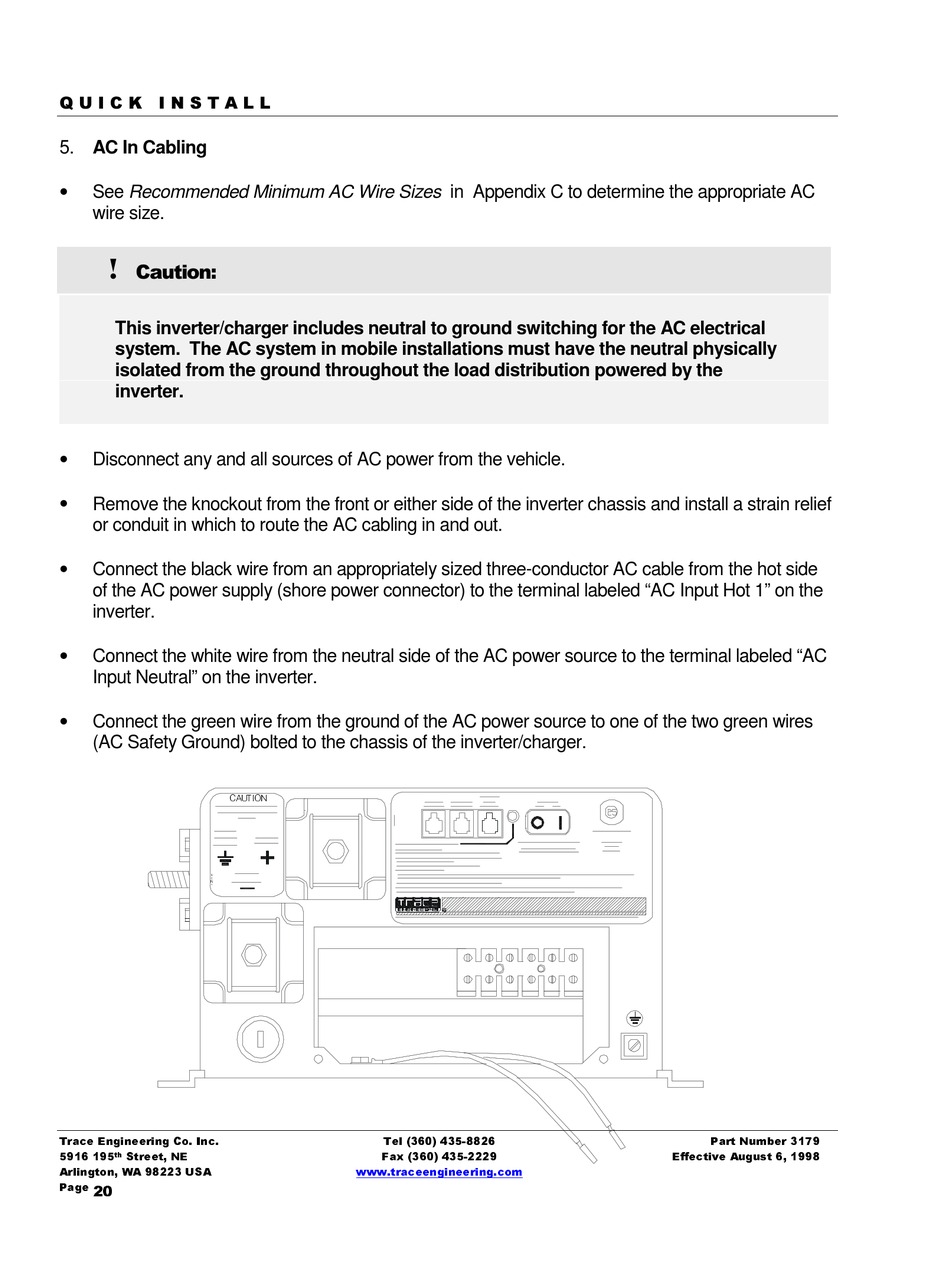

5. AC In Cabling
See Recommended Minimum AC Wire Sizes in Appendix C to determine the appropriate AC
wire size.
This inverter/charger includes neutral to ground switching for the AC electrical
system. The AC system in mobile installations must have the neutral physically
isolated from the ground throughout the load distribution powered by the
inverter.
Disconnect any and all sources of AC power from the vehicle.
Remove the knockout from the front or either side of the inverter chassis and install a strain relief
or conduit in which to route the AC cabling in and out.
Connect the black wire from an appropriately sized three-conductor AC cable from the hot side
of the AC power supply (shore power connector) to the terminal labeled "AC Input Hot 1" on the
inverter.
Connect the white wire from the neutral side of the AC power source to the terminal labeled "AC
Input Neutral" on the inverter.
Connect the green wire from the ground of the AC power source to one of the two green wires
(AC Safety Ground) bolted to the chassis of the inverter/charger.
