4.3 DEFINING ZONE TYPES, NAMES & CHIME ZONES
This mode allows you to assign one of 15 zone types to
each of the system's 29 (wireless & wired) zones. In
addition, it also allows you to assign a name to each zone
and determine whether the zone will operate as a chime
zone (only while the system is in the disarmed or Home
arming state). When a chime zone is triggered, chime
melody or zone name is heard (there are 2 selectable
chime modes - Melody chime or Chime Off).
(First display)
READY
WALK TEST
USER SETTING
INSTALLER MODE
ENTER CODE
[installer code]
2. ENROLLING
3. DEFINE ZONES
<OK> TO EXIT
* The currently saved option is displayed with a dark box at the right side. To review the options, repeatedly click
or button, until the desired option is displayed, then click
** Key ON/OFF is an optional function that enables you to arm or disarm the system via zones 21-28, 29 or 21-29, provided
that "non-alarm" was pre-defined for these zones.
Zone
No. Default
1 Delay 1
2 Delay 1
3 Delay 2
4 Perimeter
5 Perimeter
6 Interior
7 Interior
8 Perimeter
9 Perimeter
10 Perimeter
12
31 zone names can be selected, 26 fixed names and 5 custom names (defined by
the installer - see chap. 4.9):
Attic
Back door
Basement
Bathroom
Bedroom
Child room
Closet (UK: Conservatory)
Den (UK: Playroom)
: - -
ZONE No
[Zone No.] (e.g. 05)
Zxx: TYPE -
1. Inter-follow
2. Perimeter
3. Perim-follow
4. Delay 1
5. Delay 2
6. 24h silent
7. 24h audible
8. Fire
9. Non-alarm
10. Emergency
11. Gas
12. Flood
13. Interior
14. Temperature
15. Home/Delay
(*)

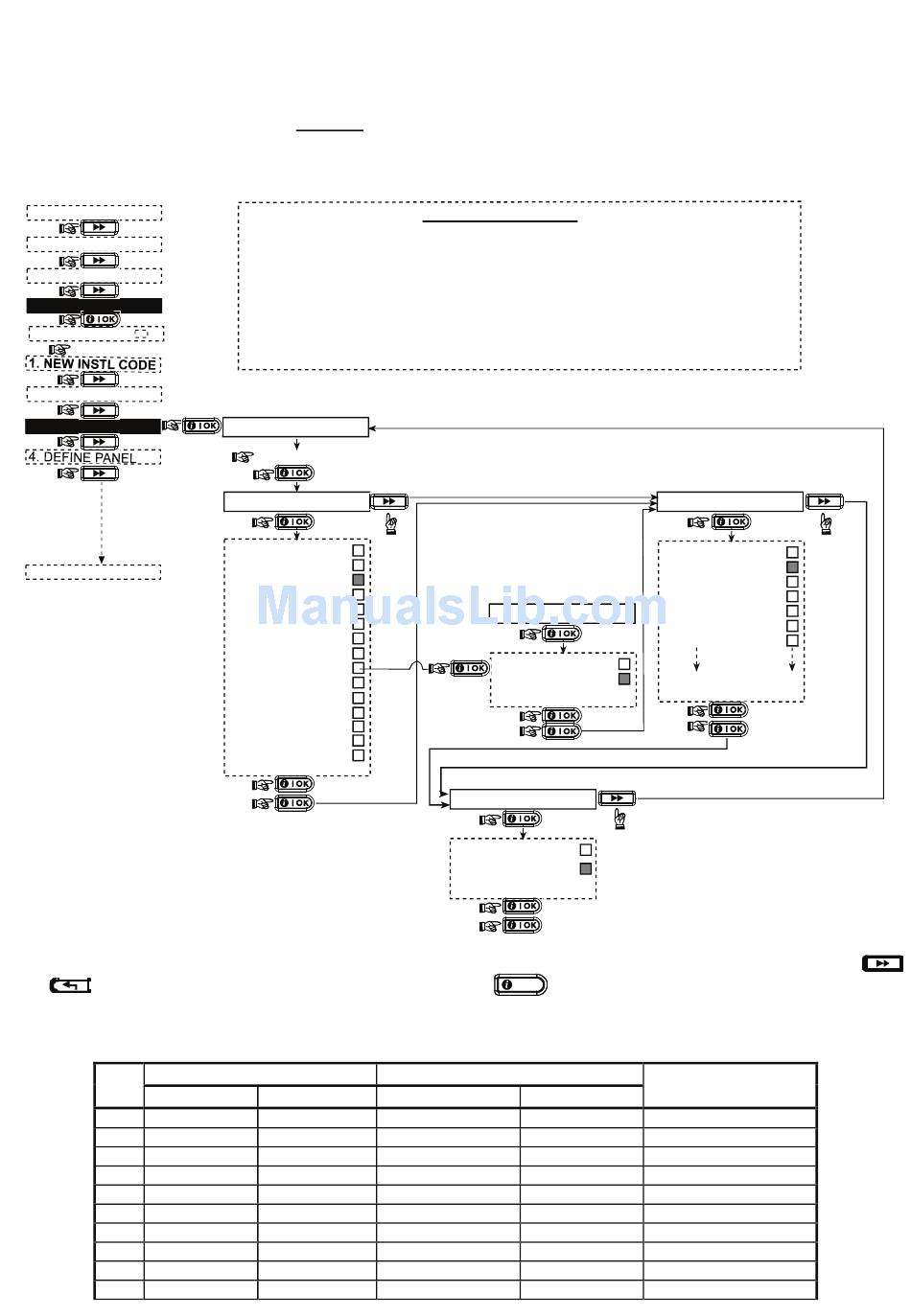

Figure 4.3 - DEFINE ZONES Flow Chart
Table 1 - DEFAULT AND PROGRAMMED ZONE DEFINITIONS
Zone Type
Programmed
Front Door
Garage
Garage Door
Back Door
Child Room
Office
Dining Room
Dining Room
Kitchen
Living Room
A list of factory defaults is printed in table 1. You may fill
out the blank columns even before you start and proceed
to program according to your own list.
Remember!
A delay zone is also a perimeter zone by definition.
Zone types are fully explained in Appendix C.
Selectable Zone Names
Dining room Hall
Downstairs Kitchen
Emergency Laundry room
Fire Living room
Front door Master bath
Garage Master bdrm
Garage door Office (UK: Study)
Guest room Upstairs
(**)
OPTIONAL
If Non-alarm is selected
Zxx: KEY ON/OFF
z-key enable
z-key disable
(*)
Zxx: CHIME
Melody-chime
Chime off
(*)
(a dark box will be displayed at the right side).
I OK
Zone Name
Default Programmed Zone Name or Off) (*)
Utility room
Yard (UK: Garden)
Custom 1
Custom 2
Custom 3
Custom 4
Custom 5
Zxx: NAME - -
Attic
Back door
Basement
Bathroom
Bedroom
Child room
Closet
(see list above)
(*)
Chime (melody
