Instructions - Parts List
Fluid Outlet Filter
For filtering of finishing materials. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
See page 2 for maximum working pressures.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
2
3
3
5
6
7
18
19
20
20
PROVEN QUALITY, LEADING TECHNOLOGY
307273ZAD
02528

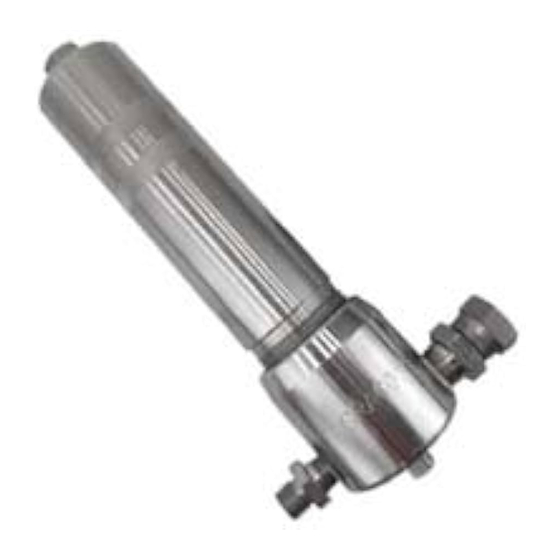

Model 214570 shown
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fluid Outlet Filter and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Fluid Outlet Filter

Summary of Contents for Graco Fluid Outlet Filter

  • Page 1: Table Of Contents

    ....... . Graco Information ......

  • Page 2: List Of Models

    List of Models Part No. Series Description Outlet Maximum Fluid Size Working Pressure 214570 Aluminum bowl, polyethylene support 1/4 npt 3000 psi (21 MPa, 210 bar) 236789 Aluminum bowl, polyethylene support 3/8 npt 3000 psi (21 MPa, 210 bar) 237481 Aluminum bowl, polyethylene support 3/8 npt 3000 psi (21 MPa, 210 bar)

  • Page 3: Symbols

    D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
  • Page 4 WARNING SKIN INJECTION HAZARD Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.

  • Page 5: Installation

    Installation Install a suitable adapter in the 3/8 npt filter inlet (Model 240183 has a 1/2 npt inlet). Then install the filter downstream from the pump fluid outlet. Install a suitable adapter in the filter outlet. Models 236789, 237480, 237481, 238782, 241107, and 248851 have a 3/8 npt outlet, and Models 240183, 24U609, and 24F658 have a 1/2 npt outlet;...

  • Page 6: Maintenance

    Maintenance Cleaning the Filter CAUTION Dried paint sediment can clog the filter screen and Improper assembly of the filter support, screen and greatly reduce filtering ability. Dried paint also makes spring will prevent filtering and damage parts. the filter difficult to remove. Clean the filter regularly; daily if needed, following the procedure below.

  • Page 7: Parts

    Parts Model 214570, Series B Model 236789, Series A 02529 Part No. Description Qty. Part No. Description Qty. 100040 PLUG; 3/8 npt; steel or iron 100040 PLUG; 3/8 npt; steel or iron 100509 PLUG; 1/4 npt; iron 100509 PLUG; 1/4 npt; iron 104361 O-RING;...
  • Page 8 Parts Model 218029, Series B Model 24V925, Searies A Model 223160, Series B Model 241317, Series A Model 24T914, Series A Model 24A587, Series B Used only on 241317 Model 223160 Model 24A587 02530B 02531b Ref. Part No. Description Qty.
  • Page 9 Parts Model 239800, Series A Model 240183, Series A ti11575a ti11574a Ref. Part No. Description Qty. Part No. Description Qty. 235992 VALVE, ball; 3/8 npt (mbe); 104361 O-RING; PTFE stainless steel 167025 SCREEN, stainless steel; 60 mesh 111697 PLUG; 1/4 npt; stainless steel 186075 SUPPORT, filter;...
  • Page 10 Parts Model 238782, Series A Model 248851, Series A TI15371A Ref. Part No. Description Qty. Part No. Description Qty. 104361 O-RING; PTFE 238782 FLUID FILTER ASSEMBLY; 167024 SCREEN, stainless steel; 30 mesh see parts at left 186075 SUPPORT, filter; polyethylene 101748 PLUG;...
  • Page 11 Parts Model 239060, Series A Model 239244, Series A 7001A Ref. Part No. Description Qty. 100040 PLUG; 3/8 npt; steel or iron 104361 O-RING; PTFE 162453 NIPPLE; 1/4 npsm x 1/4 npt; carbon steel 7007A 167025 SCREEN, stainless steel; 60 mesh Ref.
  • Page 12 Parts Model 239962, Series A Model 239964, Series A 20 17 8018 8020 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 104361 O-RING; PTFE 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter;...
  • Page 13 Parts Model 239063, Series A Model 24F658, Series A 7003A Part No. Description Qty. 110740 PLUG; 3/8 npt; stainless steel 111697 PLUG; 1/4 npt; stainless steel 104361 O-RING; PTFE 7005B 166846 NIPPLE; 1/4 npsm x 1/4 npt; stainless steel Part No.
  • Page 14 Parts Model 239963, Series A Model 239961, Series A 20 17 8019 Ref. 8017 Part No. Description Qty. Ref. Part No. Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 104361 O-RING; PTFE 186075 SUPPORT, filter; polyethylene 167025 SCREEN, stainless steel;...
  • Page 15 Parts Model 240169, Series A Model 240170, Series A 8021 8022 Ref. Ref. Part No. Description Qty. Part No. Description Qty. 104361 O-RING; PTFE 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter;...
  • Page 16 Parts Model 239286, Series A Model 237481, Series A Model 241107, Series A 06952 06953A Part No. Description Qty. Part No. Description Qty. 100040 PLUG; 3/8 npt; steel or iron; (231481) 1 100040 PLUG; 3/8 npt; steel or iron 155699 ELBOW, street, 3/8–18 (m x f)
  • Page 17 Parts Model 24F620, Series A Model 24U609, Series A TI22357A TI19255a Part No. Description Qty. Ref. Part No. Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 100040 PLUG; 3/8 npt; steel or iron 186075 SUPPORT, filter; polyethylene 104361 O-RING;...

  • Page 18: Accessories

    Accessories Use Only Genuine Graco Parts and Accessories High Pressure Ball Valves Stainless Steel Screens 5000 psi (350 bar) Maximum Working Pressure 167024 595 micron (30 mesh) Install in outlets for individual line control or install in 167025 250 micron (60 mesh) bottom of filter bowl for draining fluid.

  • Page 19: Technical Data

    Technical Data Category Data Maximum Working Model 214570, 236789, 237481, 239286: 3000 psi (21 MPa, 210 bar) Pressure Model 239963: 4000 psi (28 MPa, 280 bar) All other models: 5000 psi (35 MPa, 350 bar) Fluid Inlet Models 240183, 24U609, and 24F658: 1/2 npt All other models: 3/8 npt Fluid Outlets Models 240183, 24U609, and 24F658: 1/2 npt...

  • Page 20: Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
