Instructions/Parts List
Fluid Outlet Filter
For filtering of finishing materials. For professional use only.
See page 3 for model information, including maximum
working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Save
these instructions.
307273ZAF
2528a

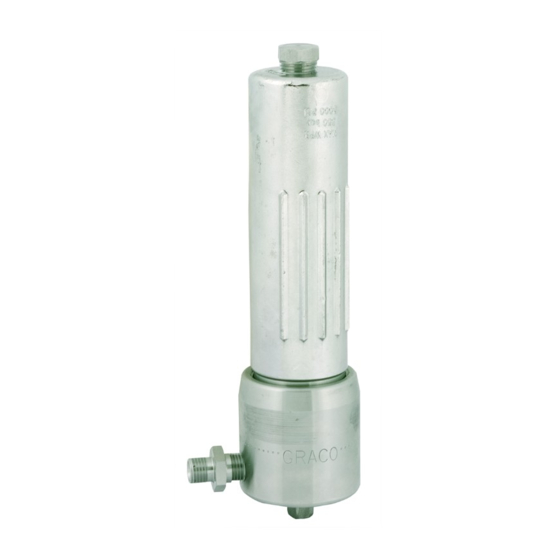

Model 214570 shown
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 214570
Summary of Contents for Graco 214570
- Page 1 For filtering of finishing materials. For professional use only. See page 3 for model information, including maximum working pressure and approvals. Important Safety Instructions Read all warnings and instructions in this manual before using the equipment. Save these instructions. 2528a Model 214570 shown...
-
Page 2: Table Of Contents
Parts........8 Model 214570, Series B....8 Model 236789, Series A. -
Page 3: Models
Contents Models Maximum Working Pressure Part Series Description Outlet Size psi (MPa, bar) 214570 Aluminum bowl, polyethylene support 1/4 npt 3000 psi (21 MPa, 210 bar) 236789 Aluminum bowl, polyethylene support 3/8 npt 3000 psi (21 MPa, 210 bar) 237481... -
Page 4: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. - Page 5 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
-
Page 6: Installation
Installation Installation If you suspect that the spray tip or hose is completely clogged, or that pressure has not been fully relieved after following the steps above, very slowly loosen the Install a suitable adapter in the filter inlet. See Technical tip guard retaining nut or hose end coupling and relieve Specifications for fluid inlet size. - Page 7 (9). NOTE: Be sure the bottom drain plug or drain valve is closed before starting the pump. Model 214570, 236789: Apply PTFE tape to all non-swiveling pipe threads. All other models: Apply anaerobic pipe sealant to all non-swiveling pipe threads.
-
Page 8: Parts
Parts Parts Model 214570, Series B Model 236789, Series A Keep these parts on Keep these parts on hand to reduce down hand to reduce down time. time. ti38536a ti38537a . 2: Model 214570 . -
Page 9: Model 218029, Series B
Parts Model 218029, Series B Model 241317, Series A Model 24V925, Series A Model 24T914, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 162453 NIPPLE; 1/4 npsm x 1/4 npt 167025 SCREEN, stainless steel; 60 mesh (Models 218029 and 241317 only) 167024 SCREEN, stainless steel;... -
Page 10: Model 223160, Series B
Parts Model 223160, Series B Model 24A587, Series B Ref. Part Description Qty. 110740 PLUG; 3/8 npt; stainless steel 111697 PLUG; 1/4 npt; stainless steel 104361 O-RING; PTFE 166846 NIPPLE; 1/4 npsm x 1/4 npt; stainless steel 167025 SCREEN, stainless steel;... -
Page 11: Model 239800, Series A
Parts Model 239800, Series A Ref. Part Description Qty. 235992 VALVE, ball; 3/8 npt (mbe); stainless steel 111697 PLUG; 1/4 npt; stainless steel 104361 O-RING; PTFE 164856 ADAPTER; 3/8 npt x 1/4 npt (mbe); stainless steel 167026 SCREEN, stainless steel; 100 mesh 186075 SUPPORT, filter;... -
Page 12: Model 240183, Series A
Parts Model 240183, Series A Model 26A069, Series A 5 Keep these parts on hand to reduce down time. Keep these parts on hand to reduce down time. 3 . 8: Model 26A069, Series A . -
Page 13: Model 238782, Series A
Parts Model 238782, Series A Model 248851, Series A Keep these parts on hand to reduce down time. ti15371a . 10: Model 248851, Series A Ref. Part Description Qty. ti38538a 238782 FLUID FILTER ASSEMBLY; . 9: Model 238782, Series A see parts at left 101748 PLUG;... -
Page 14: Model 239060, Series A
Parts Model 239060, Series A Ref. Part Description Qty. 100040 PLUG; 3/8 npt; steel or iron 3 104361 O-RING; PTFE 162453 NIPPLE; 1/4 npsm x 1/4 npt; carbon steel 5 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 24C501 BOWL, filter;... -
Page 15: Model 239244, Series A
Parts Model 239244, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 24C501 BOWL, filter; carbon steel 171941 SPRING, compression; stainless steel 171942 HOUSING, filter; carbon steel 100509 PLUG, pipe; 1/4 npt 238635 VALVE, ball;... -
Page 16: Model 239962, Series A
Parts Model 239962, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 24C501 BOWL, filter; carbon steel 171941 SPRING, compression; stainless steel 171942 HOUSING, filter; carbon steel 238635 VALVE, ball; 1/4 npt (mbe); carbon steel 3 ... -
Page 17: Model 239964, Series A
Parts Model 239964, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 24C501 BOWL, filter; carbon steel 171941 SPRING, compression; stainless steel 171942 HOUSING, filter; carbon steel 100509 PLUG, pipe; 1/4 npt 238635 VALVE, ball;... -
Page 18: Model 239063, Series A
Parts Model 239063, Series A Ref. Part Description Qty. 110740 PLUG; 3/8 npt; stainless steel 111697 PLUG; 1/4 npt; stainless steel 104361 O-RING; PTFE 166846 NIPPLE; 1/4 npsm x 1/4 npt; stainless steel 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter;... -
Page 19: Model 24F658, Series A
Parts Model 24F658, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 185632 BOWL, filter; stainless steel 171941 SPRING, compression; stainless steel 192975 HOUSING, filter; stainless steel 239018 VALVE, ball;... -
Page 20: Model 239963, Series A
Parts Model 239963, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 185632 BOWL, filter; stainless steel 171941 SPRING, compression; stainless steel 185631 HOUSING, filter; stainless steel 1 239018 VALVE, ball;... -
Page 21: Model 239961, Series A
Parts Model 239961, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 185632 BOWL, filter; stainless steel 171941 SPRING, compression; stainless steel 185631 HOUSING, filter; stainless steel 111697 PLUG; 1/4 npt; stainless steel 239018 VALVE, ball;... -
Page 22: Model 240169, Series A
Parts Model 240169, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 24C501 BOWL, filter; carbon steel 171941 SPRING, compression; stainless steel 171942 HOUSING, filter; carbon steel 100509 PLUG, pipe;... -
Page 23: Model 240170, Series A
Parts Model 240170, Series A Ref. Part Description Qty. 104361 O-RING; PTFE 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter; polyethylene 185632 BOWL, filter; stainless steel 171941 SPRING, compression; stainless steel 185631 HOUSING, filter; stainless steel 111697 PLUG;... -
Page 24: Model 239286, Series A
Parts Model 239286, Series A Ref. Part Description Qty. 100040 PLUG; 3/8 npt; steel or iron 155699 ELBOW, street, 3/8–18 (m x f) 104361 O-RING; PTFE 162485 NIPPLE; 3/8 npt(m) x 3/8 npsm(m) 167025 SCREEN, stainless steel; 60 mesh 186075 SUPPORT, filter;... -
Page 25: Model 237481, Series A
Parts Model 237481, Series A Model 241107, Series A Ref. Part Description Qty. 100040 PLUG; 3/8 npt; steel or iron; (231481) 155699 ELBOW, street, 3/8–18 (m x f) 104361 O-RING; PTFE 162485 NIPPLE; 3/8 npt(m) x 3/8 npsm(m) 167025 SCREEN, stainless steel;... -
Page 26: Model 24F620, Series A
Parts Model 24F620, Series A Model 24U609, Series A Keep these parts on hand to reduce down time. 3 3 Keep these parts on hand to reduce down time. . 23: Model 24F620, Series A . -
Page 27: Kits And Accessories
Kits and Accessories Kits and Accessories Model 26B236, Series A High Pressure Ball Valves 5000 psi (350 bar) Maximum Working Pressure Install in outlets for individual line control or install in bottom of filter bowl for draining fluid. 3 210657 1/4 npt(mbe), fluoroelastomer seals 210659... -
Page 28: Technical Specifications
Technical Specifications Technical Specifications Metric Maximum Working Pressure Model 214570, 236789, 237481, 239286 3000 psi 21 MPa, 210 bar Model 239963 4000 psi 28 MPa, 280 bar All other models 5000 psi 35 MPa, 350 bar Fluid Inlet Models 240183, 24U609, and 24F658... - Page 29 California Proposition 65 Notes 307273ZAF...
-
Page 30: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
