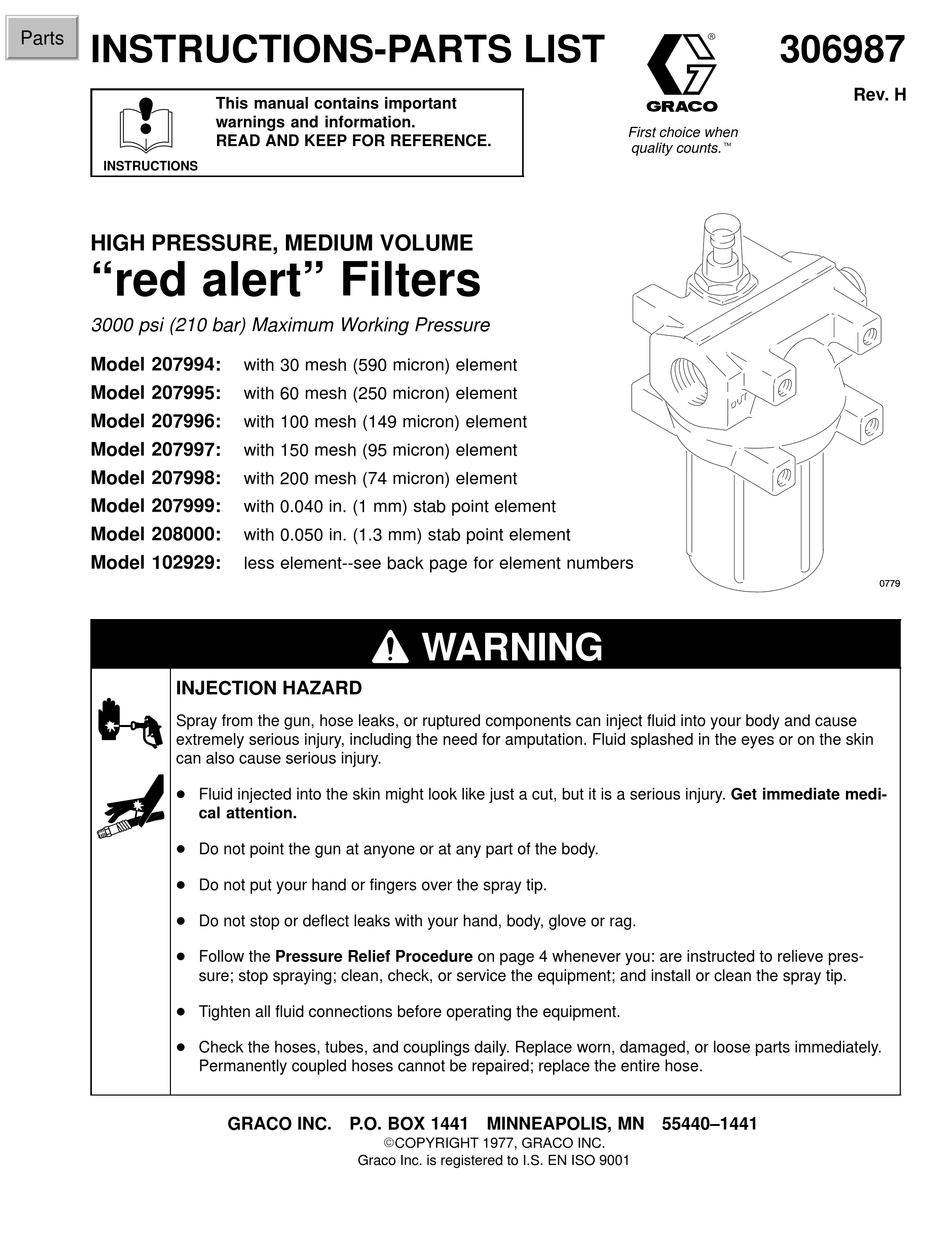

INSTRUCTIONS-PARTS LIST

INSTRUCTIONS

HIGH PRESSURE, MEDIUM VOLUME
"red alert" Filters
3000 psi (210 bar) Maximum Working Pressure
Model 207994:
Model 207995:
Model 207996:
Model 207997:
Model 207998:
Model 207999:
Model 208000:
Model 102929:
INJECTION HAZARD
Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause
extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin
can also cause serious injury.
D Fluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medi-
cal attention.
D Do not point the gun at anyone or at any part of the body.
D Do not put your hand or fingers over the spray tip.
D Do not stop or deflect leaks with your hand, body, glove or rag.
D Follow the Pressure Relief Procedure on page 4 whenever you: are instructed to relieve pres-
sure; stop spraying; clean, check, or service the equipment; and install or clean the spray tip.
D Tighten all fluid connections before operating the equipment.
D Check the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.
Permanently coupled hoses cannot be repaired; replace the entire hose.
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
with 30 mesh (590 micron) element
with 60 mesh (250 micron) element
with 100 mesh (149 micron) element
with 150 mesh (95 micron) element
with 200 mesh (74 micron) element
with 0.040 in. (1 mm) stab point element
with 0.050 in. (1.3 mm) stab point element
less element--see back page for element numbers
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1977, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
