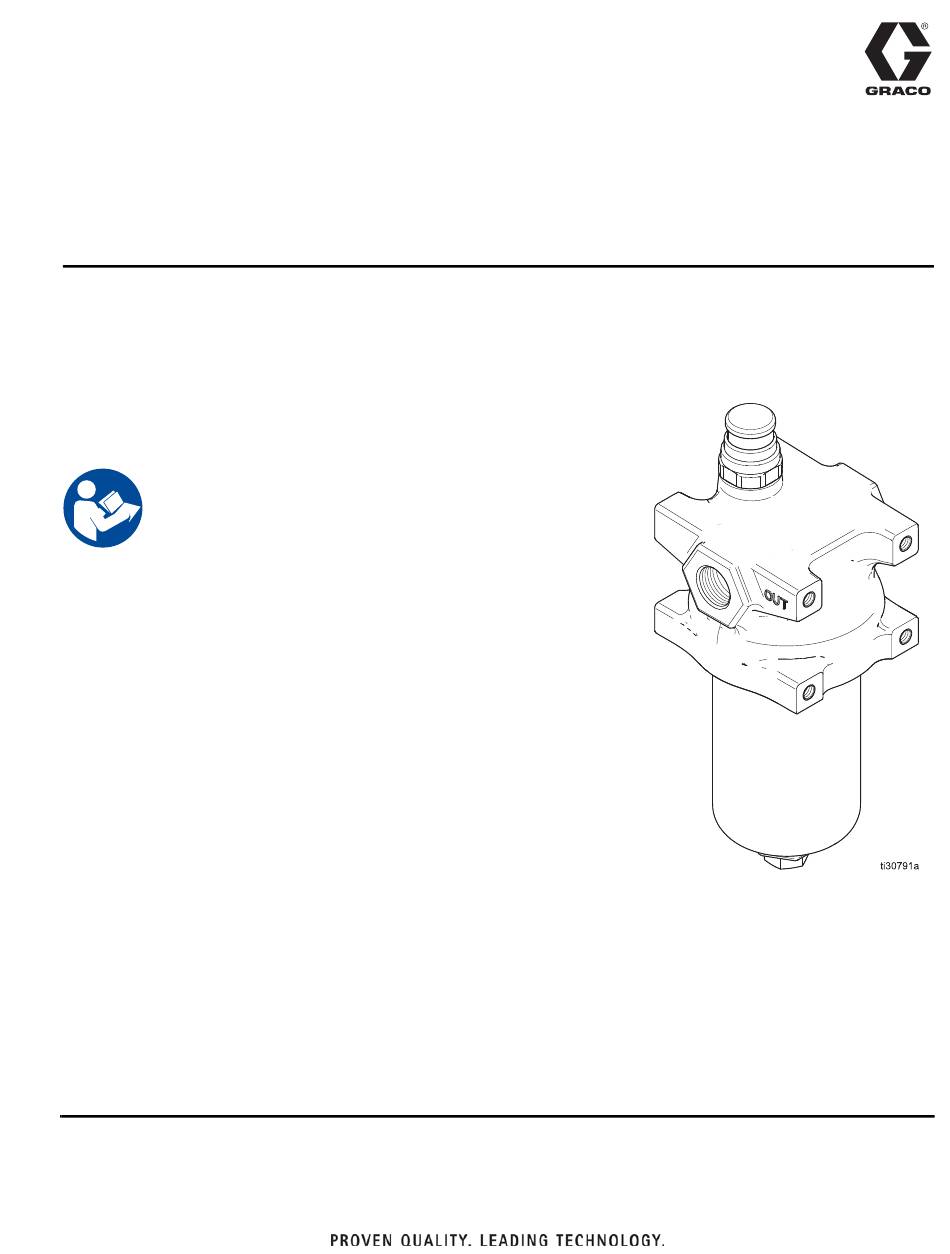

Instructions-Parts
Red Alert Filter
For filtration of common industrial paints and coatings in finishing applications. For
professional use only.
Model: 25M212
3000 psi (21.0 MPa, 210 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
3A4936E
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25M212 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco 25M212

Summary of Contents for Graco 25M212

  • Page 1 Red Alert Filter 3A4936E For filtration of common industrial paints and coatings in finishing applications. For professional use only. Model: 25M212 3000 psi (21.0 MPa, 210 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this...

  • Page 2: Table Of Contents

    Technical Data ......13 Graco Standard Warranty ....14...

  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
  • Page 4 Warnings WARNING TOXIC FLUID OR FUMES HAZARD Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed. • Read Safety Data Sheet (SDS) to know the specific hazards of the fluids you are using. •...

  • Page 5: Installation

    Installation Installation Grounding Dual Filter System Installation A dual filter system allows you to redirect the fluid to another filter while one filter is cleaned or serviced. 1. Install two filters (A), as shown in F . 1. The equipment must be grounded to reduce the risk of static sparking.

  • Page 6: Typical Installations

    Red Alert Filter - Allow 3 in. (76 mm) minimum clearance below the filter for easy removal of the bowl (2). (Supplied by Graco.) (See Parts on page 10.) Fluid Drain Valve (3/4-16 UNF) (Graco part, 248271) (Supplied by customer, optional) Fluid Shutoff Valve (3/4-14 NPT) (Supplied by customer.)

  • Page 7: Operation

    Operation Operation Pressure Relief Procedure Follow the Pressure Relief Procedure whenever you see this symbol. This equipment stays pressurized until pressure is manually relieved from the system. To help prevent serious injury from pressurized fluid, such as skin injection and splashing fluid, follow the Pressure Relief Procedure for your system when you stop spraying and before cleaning, checking, or servicing the equipment.

  • Page 8: Troubleshooting

    Troubleshooting Troubleshooting 1. Follow Pressure Relief Procedure, page 7, before checking or repairing filter. 2. Check all possible problems and causes before dis- assembling bowl. Problem Cause Solution Leaking around bowl, indicator, or Loose fitting Tighten to recommended in-lbs. See drain plug Parts, page 10.

  • Page 9: Repair

    Repair Repair Filter O-Ring Replacement The filter o-rings (5 and 6) seal the bowl (2) to the hous- ing (1). See Parts on page 10. Replace the o-ring (5) and o-ring backup (6) if material leaks around the bowl (2). 1.

  • Page 10: Parts

    Parts Parts Model 25M212 shown Part No./Description Part Description 17L906 Filter housing 17L907 Bowl 25M213 Indicator, PTFE 3a C20111 O-ring, size 119, Viton 3b 109576 O-ring, size 016, Viton 104444 O-ring, size 908, Viton 104445 O-ring, size 233, Viton 104443 O-ring, backup, Viton (#233)

  • Page 11: Dimensions

    Dimensions Dimensions Overall Dimensions Mounting Dimensions 3A4936E...
  • Page 12 Dimensions 3A4936E...

  • Page 13: Technical Data

    Technical Data Technical Data Red Alert Filter, model 25M212 Metric Maximum working pressure 3000 psi 21.0 MPa, 210 bar Flow capacity 10 gpm 38 liters/min Filter Element 36 sq. in. Filter area 232 cm Filtration 108116 60 mesh (250 micron)

  • Page 14: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
