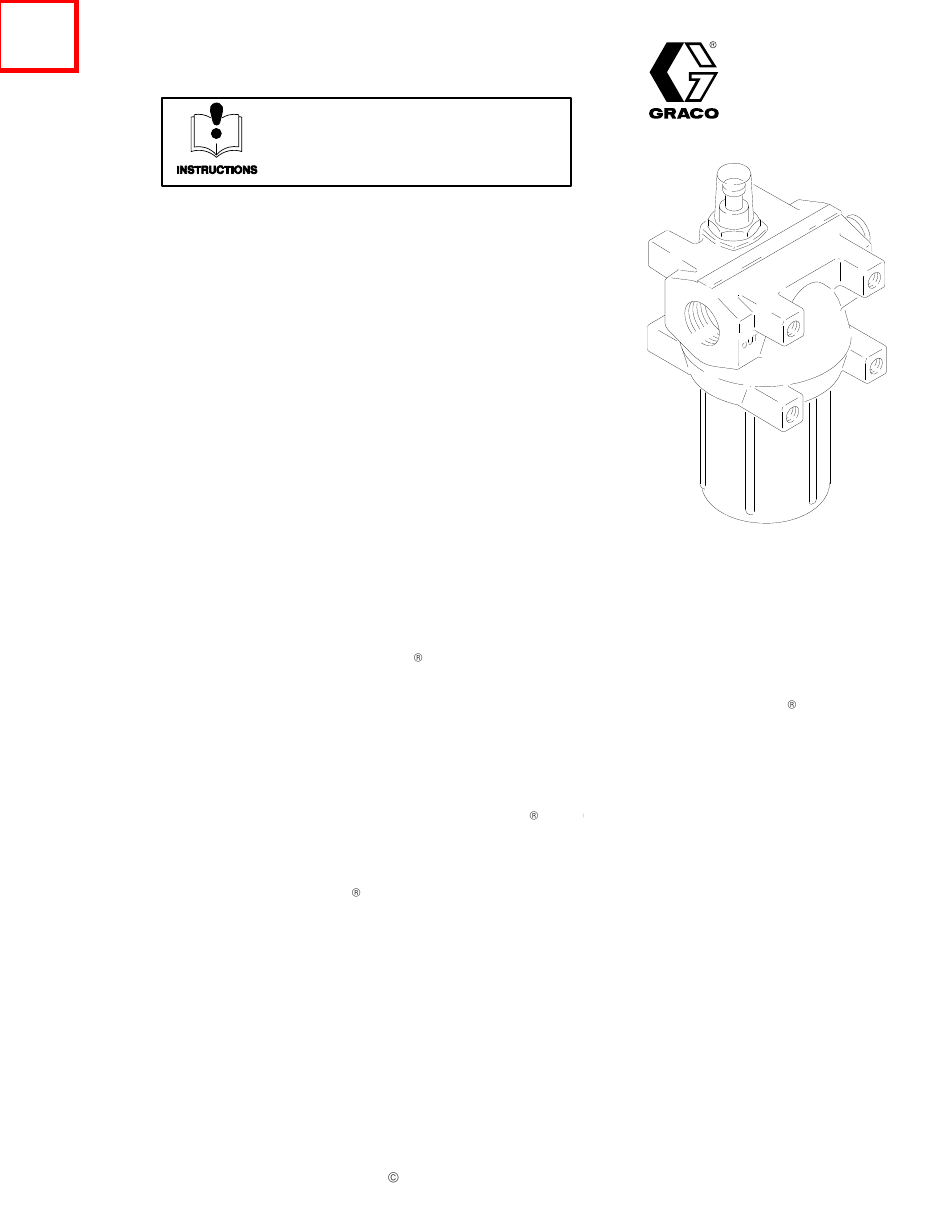

INSTRUCTIONS–PARTS LIST
This manual contains important
warnings and information.
READ AND RETAIN FOR REFERENCE
HIGH PRESSURE, MEDIUM VOLUME
"red alert" Filters
3000 psi (210 bar) Maximum Working Pressure
10 gpm (38 liter/min) Flow Capacity
2
36 sq. in. (230 cm
) Filtering Area

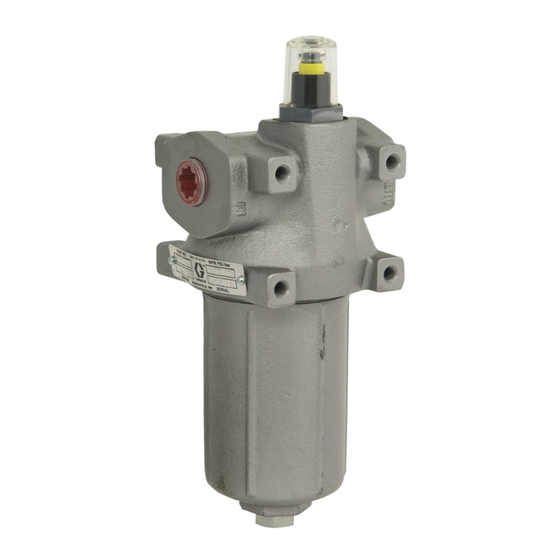

Part No. 210–090,
60 mesh (250 micron) element 108–116
Part No. 210–091,
100 mesh (149 micron) element 108–117
Part No. 210–092,
200 mesh (74 micron) element 104–533
Part No. 104–435,
without element
Accessories
Conversion O-Rings
For use with fluids not compatible with Viton .
105–280
O-ring, Ethylene-Propylene
105–279
Backup o-ring, PTFE
Adapter 105–276
3000 psi (210 bar) Maximum Working Pressure
3/4–16 unf thread x 1/4 npt
Adapts bowl to accept drain valves listed below.
Drain Valves
5000 psi (350 bar) Maximum Working Pressure
Install in adapter 105–276 for relieving fluid pressure in
filter
210–657
1/4 npt(mbe) Viton seals
214–037
1/4 npt(mbe) PTFE seals
TO PLACE AN ORDER , contact your Graco distrib-
utor, or call this number to identify the distributor
closest to you: 1–800–367–4023 Toll Free
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Graco Phone Numbers
COPYRIGHT 1976, GRACO INC.
Technical Data
Maximum Working Pressure
Flow Capacity
. . . . . . . . . . . . . . .
Filter Area
. . . . . . . . . . . . . . . . . . . . .
Wetted Parts
. . . . .
Iron, Steel, Viton , Stainless Steel
Dimensions
. . . . . . . . . . . . . . . . . . . .
Weight
. . . . . . . . . . . . . . . . . . . . . . . .
Viton is a registered trademark of the
DuPont Company.
Manual Change Summary
The manual was generally updated.
FOR TECHNICAL ASSIST ANCE, service repair
information or assistance regarding the application of
Graco equipment: 1–800–543–0339 Toll Free
307–252
Rev. L
Supersedes K
03731
. . . . . .
3000 psi (210 bar)
10 gpm (38 liters/min)
2
36 sq. in. (232 cm
)
4.5" (114 mm) width
4.62" (117 mm) depth
11.3" (287 mm) height
14 lb 8 oz. (6.6 kg)
