Instructions - Parts List
CleanLine
Model 248300
1800 psi (12.4 MPa, 124 bar) Maximum Working Pressure
Model 248653
900 psi (6.2 MPa, 62 bar) Maximum Working Pressure
For non-corrosive and non-abrasive oils and lubricants only.
Read warnings and instructions.
See page 2 for model information
248653
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001
®
Filter
TI5169
248300
310652B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Graco CleanLine 248300
Summary of Contents for Graco CleanLine 248300

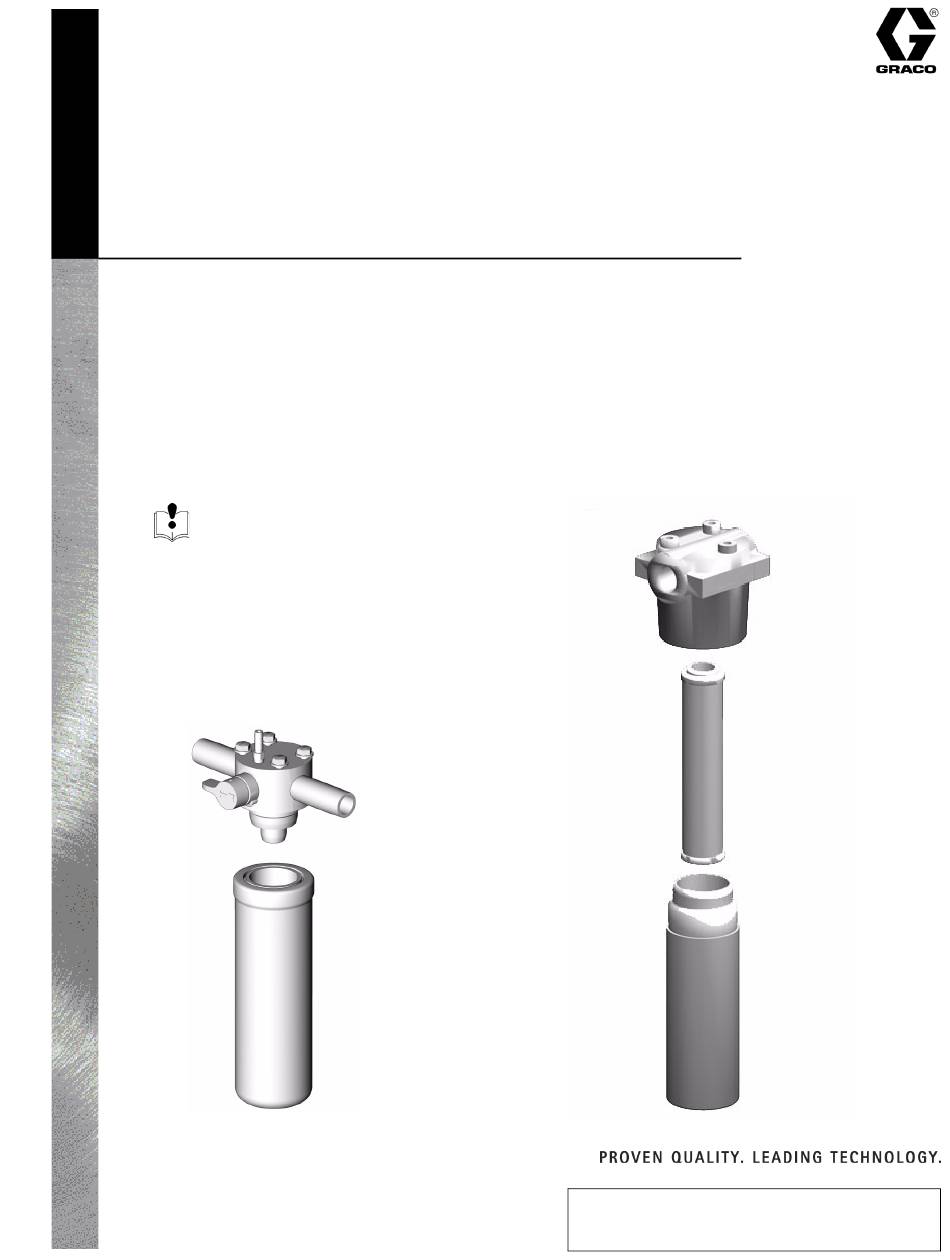

- Page 1 For non-corrosive and non-abrasive oils and lubricants only. Read warnings and instructions. See page 2 for model information TI5169 248300 248653 Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 Installation ....... . 4 Graco Information ......10 Operation .
- Page 3 Do not alter or modify equipment. • For professional use only. • Use equipment only for its intended purpose. Call your Graco distributor for information. • Comply with all applicable safety regulations. TOXIC FLUID OR FUMES HAZARD Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
- Page 4 Installation Installation ™ The CleanLine 900 filter is installed upstream from the dispense equipment. It can be pump- or wall-mounted. Wall-mount 1. Fasten the wall-mount bracket (F . 1) to the wall using screws long enough to provide secure sup- port.
- Page 5 3¹/ ² 6¹/ ² 750-1000 3¹/ ² 6¹/ ² 2. Install all system component including the Graco CleanLine filter system. Do not install dispense equipment until initial flush is complete. 3. Close the fluid shut-off valve. Dump Valve 4. Ensure the main fluid outlet valve at the pump is closed.
- Page 6 Technical Data 6. Slowly open the main fluid outlet valve at the pump. 4. Unscrew the housing (5). At the same time, gradually increase the air pres- 5. Pull the filter cartridge (3) straight down. sure to the pump until there is good flow through the hose.
- Page 7 Parts Parts Part No. 248300 From pump To dispense system Torque to 15 ft. lbs. Apply sealant to pipe threads (item 5 only) Parts List Ref. Part No. Description Qty. 108537 VALVE, ball 119189 MANIFOLD, filter 119278 ELEMENT, filter 119279 HOUSING, filter C20487 FITTING, nipple, hex 119200 FITTING, adapter, SAE12-3/4npt(f) 113802 SCREW, hex head, flanged...
- Page 8 Parts Part No. 248653 To dispense system From pump Torque to 130-150 in-lbs. Apply sealant TI5170 Route tube to waste oil container or to bulk oil tank 310652B...
- Page 9 Parts Parts List Ref. Part No. Description Qty. 15E281 MANIFOLD, filter 111699 GASKET, seat, valve 234842 VALVE, drain, 1400 psi 287389 BASE, valve, non-locking 187625 HANDLE, valve, drain 187615 SEAT, valve 15D702 FILTER, CleanLine 900, spin-on 119388 VALVE, ball, 3/4 111600 PIN, grooved 101407 NIPPLE, pipe 114287 FITTING, barbed, 1/4 ID tube,...
- Page 10 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
