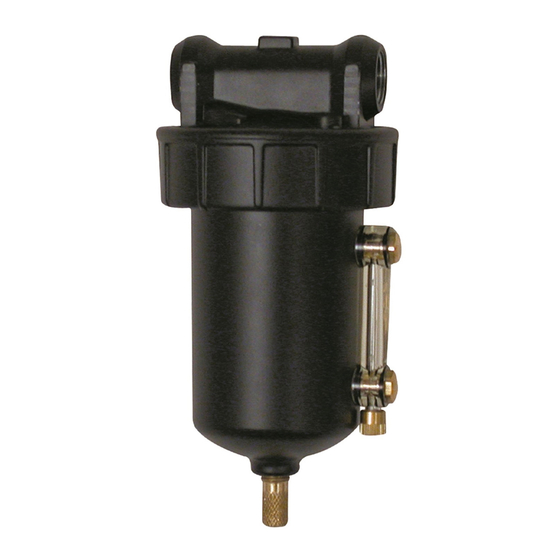

Graco 308169J Instructions Parts List

Air filters, lubricators, and kits
Hide thumbs

Advertisement

Table of Contents

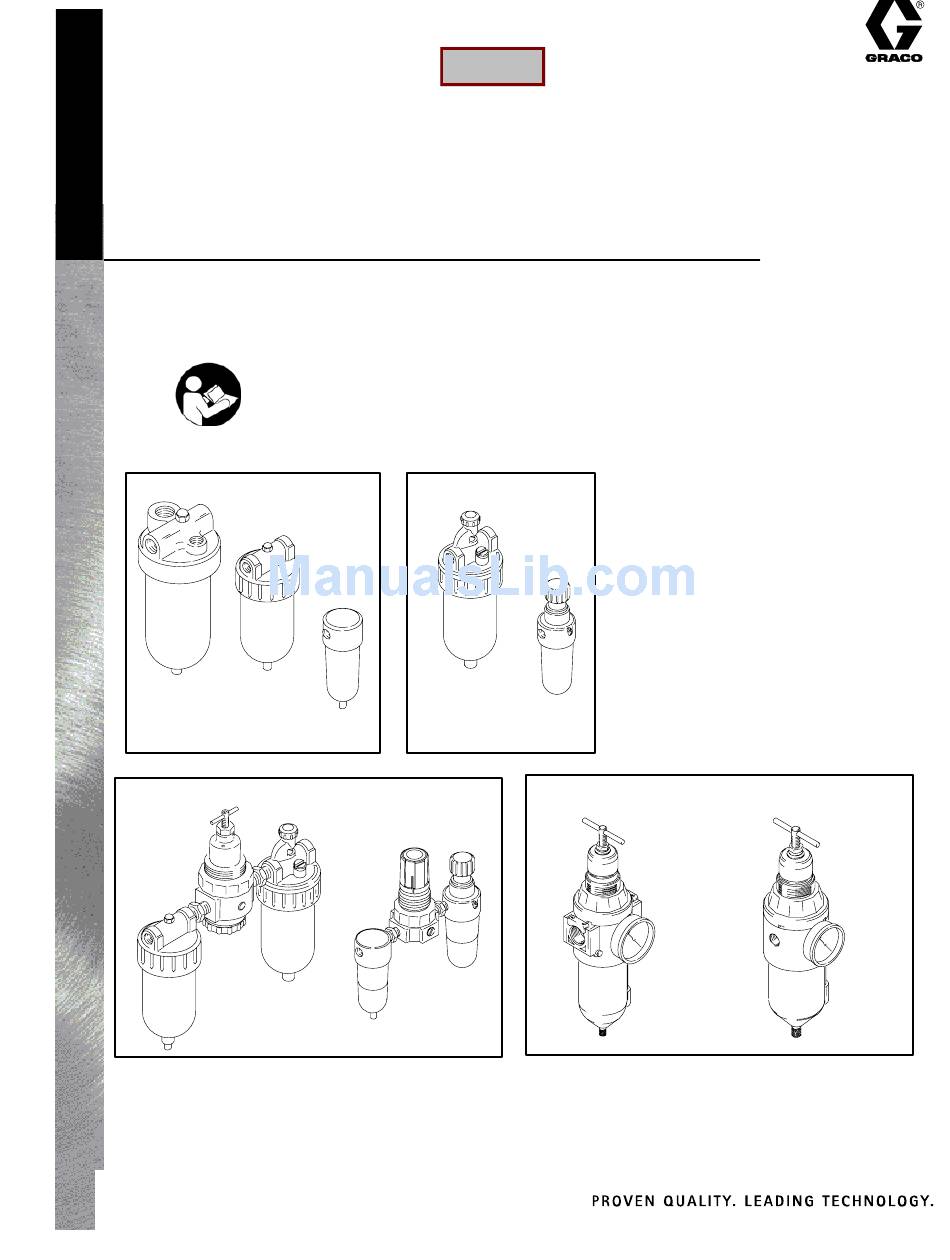

Instructions – Parts List
Air Filters, Lubricators,
and Kits
Maximum Temperature Range: 40–150_F (4–65_C)
Important Safety Instructions.
Read all warnings and instructions in this manual.
Save these instructions.
Air Filters
106148
217074
106149
106150
112859
Air Filter–Regulators–Lubricators
110150
217072
217073
Mascott Equipment Co
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Portland
Copyright 1991, Graco Inc. is registered to I.S. EN ISO 9001
(800) 452-5019
(800) 481-7311
Parts
Air Lubricators
214847
214848
214849
110146
237212
110149
Seattle
Pasco
(888) 450-7867
110148
Integral Filter–Regulators
15C955
246947
246948
308169J
246946

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 308169J Instructions and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco 308169J Instructions

Summary of Contents for Graco 308169J Instructions

  • Page 1 Air Filter–Regulators–Lubricators 15C955 110150 246947 217072 217073 246948 110149 246946 Mascott Equipment Co GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 Portland Seattle Pasco Copyright 1991, Graco Inc. is registered to I.S. EN ISO 9001 (800) 452-5019 (800) 481-7311 (888) 450-7867...

  • Page 2: List Of Models

    List of Models Air Filters Model Max. Pump/System Inlet/ Maximum WPR* Bowl Capacity Filter SCFM Application Outlet psi (bar) oz (ml) Micron 110146 22 (0.62) Husky 715, Prince, Fast–Flo, Fast–Ball 1/4 npt 300 (21) 1 (30) 106148 77 (2.2) President, Fire–Ball, Monark 3/8 npt 250 (17.5) 5 (150)

  • Page 3: Installation

    One to two drops of oil a minute is a common adjust- Use a bracket to mount the air accessories to a wall or ment. Use Graco motor oil, part no. 202659. All lubrica- cart. Do not hang the accessories directly off the air mo-...
  • Page 4 Service Repair Kits WARNING Lubricator Repair Kits Relieve air and fluid pressure before servicing the regulator, filter or Kit No. Description lubricator. Lubricator 214847 102774 Repair Kit To reduce the risk of serious bodily inju- 214848 ry, fluid injection, splashing in the eyes 214849 or skin, injury from moving parts, AL- WAYS open the bleed–type master air...
  • Page 5 Service Air Filter 110146 Filter Elements & Bowl Seals Kit No. Description Bowl Seal Filter Part No. 106149 108035 1/2 in., 20 micron filter element 162440 FILTER 106150 106204 3/4 in., 40 micron filter element 104023 ELEMENT 112859 ––––– 1 in., 40 micron filter element –––––...
  • Page 6 Service Filter Bowl Replacement Kits with Seal Regulator Repair Kit Kit No. Description Kit No. Description Filter Filter 116521 116672 3/4 in. port, bowl 116521 116634 3/4 in. valve and w/sight glass diaphragm 15C955 116672 1/2 in. port, bowl 15C955 116634 1/2 in.
  • Page 7 Parts 3/8 npt(f) OUTLET 1/4 npt(f) OUTLET 1/4 npt(f) 3/8 npt(f) INLET INLET 0926 Model 110149, Series A Includes items 1–5 Part No. Description Model 110150, Series B 110146 FILTER Includes items 1–5 110318 REGULATOR (see 308167) 110148 LUBRICATOR 110321 MOUNTING BRACKET Part No.
  • Page 8 Parts 3/4 npt(f) 1/2 npt(f) OUTLET OUTLET 3/4 npt(f) 1/2 npt(f) INLET INLET 0926 0926 Model 217072, Series A Includes items 1–5 Model 217073, Series A Includes items 1–5 Part No. Description 106149 FILTER 104266 REGULATOR (see 308167) Part No. Description 214848 LUBRICATOR...
  • Page 9 Parts Model 15C955, 246947, and 246948 Model 246946 Part No. Description 15C955 REGULATOR, filter, air 1/2 npt Part No. Description Model 246947 116521 REGULATOR, filter, air 3/4 npt 15C956 REGULATOR, filter, air; 1/4 npt Model 246948 C36260 GAUGE, pressure, air 1 C36260 GAUGE, pressure, air Models 246947 and 246948 only...

  • Page 10: Air Filter

    Dimensions Air Filter Lubricators Model Inlet/ Width (A) Height (B) Height (C) Model Inlet/ Width (A) Height (B) Height (C) Outlet in. (mm) in. (mm) in. (mm) Outlet in. (mm) in. (mm) in. (mm) 110148 1/4 npt 1.5 (39) 5.0 (126) 3.0 (76) 110146 1/4 npt...
  • Page 11 Dimensions Filter–Regulator–Lubricators Model Inlet/ Width (A) Height (B) Height (C) Depth (D) Outlet in. (mm) in. (mm) in. (mm) in. (mm) 110149 1/4 npt 5.1 (130) 5.1 (130) 3.5 (89) 1.6 (40) 110150 3/8 npt 8.8 (222) 9.6 (244) 5.4 (137) 4.1 (105) 217072 1/2 npt...
  • Page 12 Air Filter Flow Curves Inlet Pressure Model 106148 Inlet Pressure Model 110146 Air Flow (SCFM) Air Flow (SCFM) Model 106149 Model 217074 Inlet Pressure Inlet Pressure 10 20 30 40 50 60 70 80 90 100 110 Air Flow (SCFM) Air Flow (SCFM) Model 106150 Model 110148...
  • Page 13 Air Filter Flow Curves Model 112859 Inlet Pressure PSIG PSIG 80 120 160 200 240 280 320 360 400 Air Flow (SCFM) Models 246947 and 246948 Model 246946 Air Flow (SCFM) Standard 40 Micron Element Supply Pressure 100 psig 3/4”& 1” 3/8”...
  • Page 14 Notes 308169...
  • Page 15 Accessories Gauges Style 1 (Bottom Inlet) Model Air Pressure Inlet Type of Dial Dia. Style Glass Range Case 160430 0–100 psi (7 bar) 1/4 npt Black 2 in. (51 mm) 102019 101689 0–200 psi (14 bar) 1/4 npt Black 2 in. (51 mm) 102019 101180 0–200 psi (14 bar)

  • Page 16: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This manual is also suitable for:

110146106148106149106150112859217074 ... Show all
