Graco 238-590 Instructions-Parts List Manual

Graco 238-590 Instructions-Parts List Manual

Air filter/regulator/lubricator kit
Hide thumbs

Advertisement

Quick Links

Download this manual

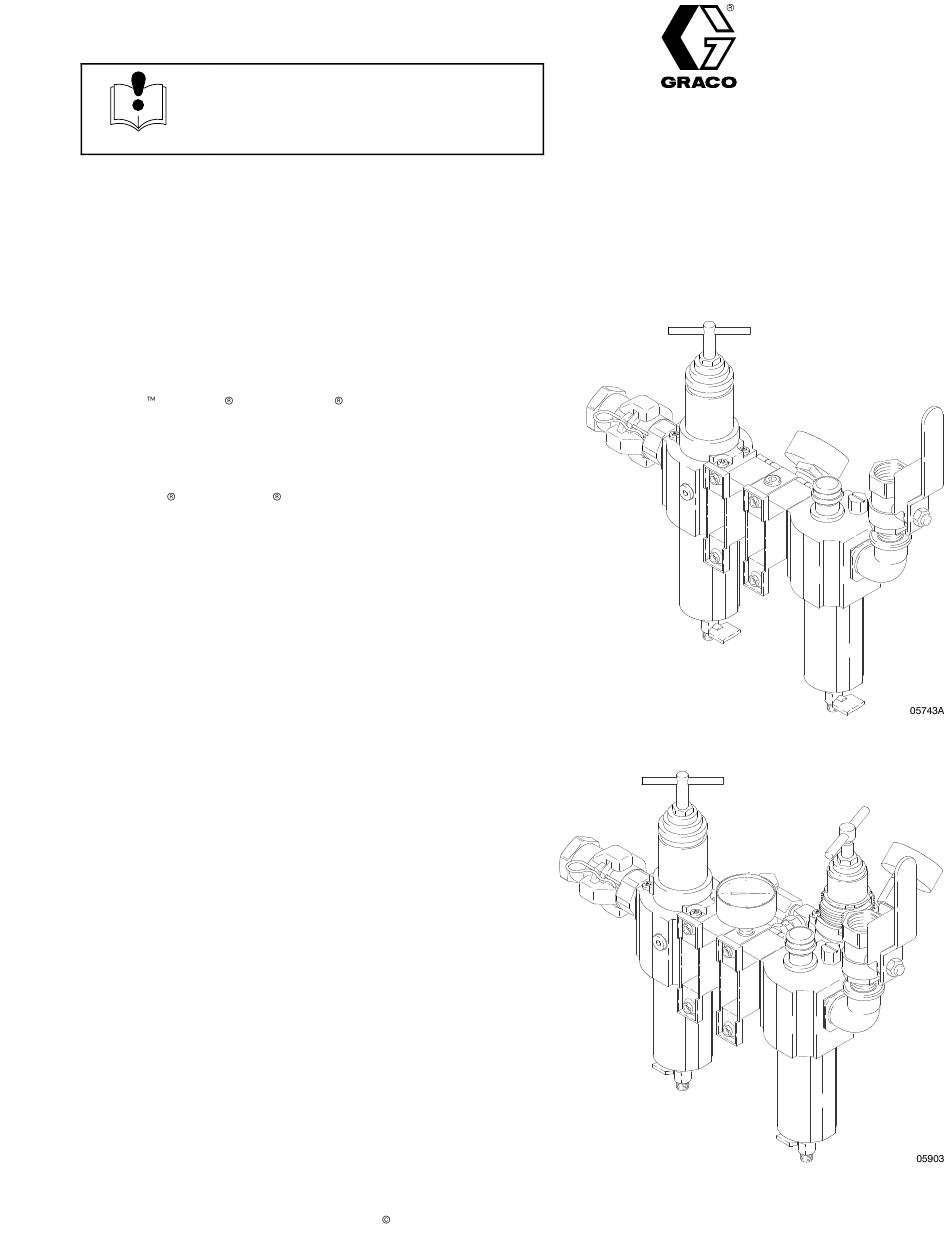

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
HIGH VOLUME
Air Control Kits
250 psi (1.7 MPa, 17.2 bar) Maximum Air Inlet Pressure
Part No. 238-590, Series A
Air Filter/Regulator/Lubricator Kit
For King , Bulldog , and Senator airless pumps.
Part No. 238-613, Series A
Air Filter/Regulator/Lubricator Kit
For Bulldog and Senator air-assisted airless pumps.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
2
2
4
5
9
11
12
. . . . . . . . . . . . . . . .
12
COPYRIGHT 1996, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Part No. 238-590
Part No. 238-613
308-722
Rev. A
