Instructions

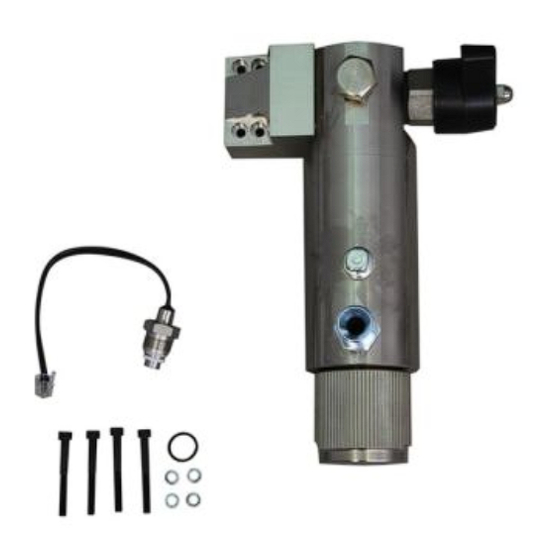

Filter Accessory Kit 287995
228 bar (22,8 MPa, 3300psi) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions
311421
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001
311515E rev.b
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Graco 287995
Summary of Contents for Graco 287995
- Page 1 228 bar (22,8 MPa, 3300psi) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions 311421 Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 Pressure Control Transducer Replacement ti7579a Removal Warning: Do Pressure Relief: Disconnect display Remove two screws and Disconnect transducer See Manual 311421. Unplug connector from motor allow control panel to hang. connector from motor sprayer. Wait 5 minutes before control board. control board.
- Page 3 Removal Remove two screws and Pass transducer wire Remove drain hose from Remove four screws, transducer cover. through 3/4-in. box end valve block washers and valve block Press tab on transducer wrench and remove connector and pull transducer and o-ring from transducer wire through valve block.
- Page 4 Installation Install transducer and Press tab on transducer Install o-ring. Install filter Connect drain hose o-ring and in filter manifold. connector and push assembly with four washers Torque to 47-61 N·m transducer wire through and screws. (35-45 ft-lb). grommet.
- Page 5 ti7579a Installation Connect transducer connector Connect display connector Install control panel with Install cover with four to motor control board. to motor control board. two screws. screws.
- Page 6 104459 SCREW, shcs 10-32 x 1.75 TO PLACE AN ORDER, contact your Graco distributor, or call 1-800-690-2894 to identify the nearest distributor. All written and visual data contained in this document reflects the latest product information available at the time of publication.
