Instructions–Parts List
LOW PRESSURE, MEDIUM VOLUME

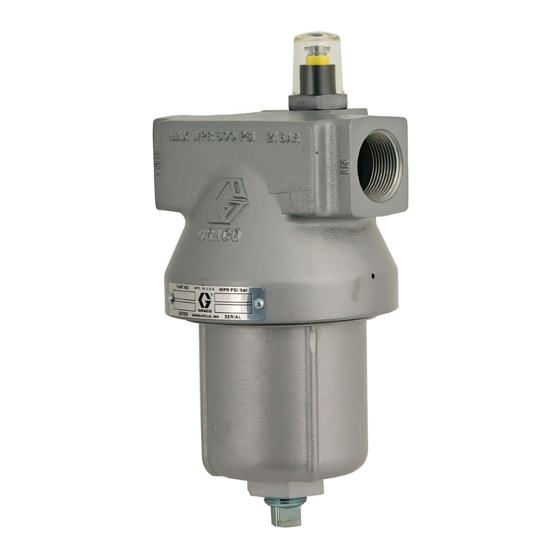

"red alert" Filters
Filters fluids and indicates when filter requires cleaning.
300 psi (21 bar) Maximum Working Pressure
6 gpm (22 liter/min) Flow Capacity
2
36 sq. in. (230 cm
) Filtering Area
Model No. 213057,
Model No. 213058,
Model No. 213059,
Model No. 213060,
Model No. 213061,
Model No. 214001,
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
30 mesh (590 micron) element
60 mesh (250 micron) element
100 mesh (149 micron) element
150 mesh (95 micron) element
200 mesh (74 micron) element
without element
307282G
03708
Advertisement
Table of Contents
Related Manuals for Graco 213057
Summary of Contents for Graco 213057
- Page 1 300 psi (21 bar) Maximum Working Pressure 6 gpm (22 liter/min) Flow Capacity 36 sq. in. (230 cm ) Filtering Area Model No. 213057, 30 mesh (590 micron) element Model No. 213058, 60 mesh (250 micron) element Model No. 213059, 100 mesh (149 micron) element Model No.
- Page 2 Installation To clean or service the filter without shutting down the WARNING system, install a dual filter or a filter bypass system as explained below. To reduce the risk of component rupture and serious bodily injury, do not exceed 300 psi (21 The numbers and letters in parentheses refer to Figs.
- Page 3 Service Holding the bowl with a wrench to keep it from turning, CAUTION screw the drain plug (10) out. After the fluid has drained out, remove the bowl, element and spring. If the filter will not be used for a while, thoroughly Replace immediately with the spare bowl, element and clean all the parts in solvent and blow them dry spring to keep the paint from drying on the housing (3)
- Page 4 Parts Model No. 213057 to 213061 Includes items 1 to 10. 3/4” npt(f) Inlet and outlet Model No. 214001 Includes items 1 to 6, 8 to 10; 1/4 npt(f) drain port Order the filter element separately from those listed under Ref. No. 7.
- Page 5 Accessories Technical Data CV75 Indicator O-Ring 116768 For use with materials not compatible with the stan- Maximum Working Pressure ..300 psi (22 bar) dard fluoroelastomer indicator o-ring Flow Capacity ....6 gpm (22 liters/min) Filter Area .
- Page 6 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
