Instructions - Parts List

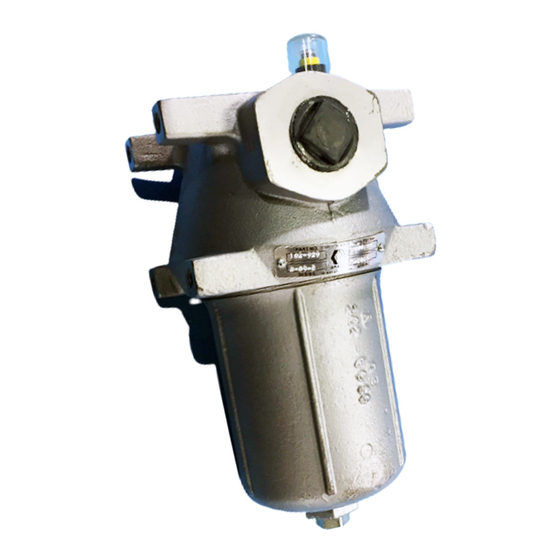

Red Alert Filter
For high pressure, medium volume grease lubrication systems only.
Model: 17L366
3000 psi (21 MPa, 210 bar) Maximum Working Pressure
2 gpm (7.57 lpm) Flow Capacity
2
36 square inch (230 cm
380 micron Filtration
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
) Filtering Area
3A3940A
EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 17L366
Summary of Contents for Graco 17L366

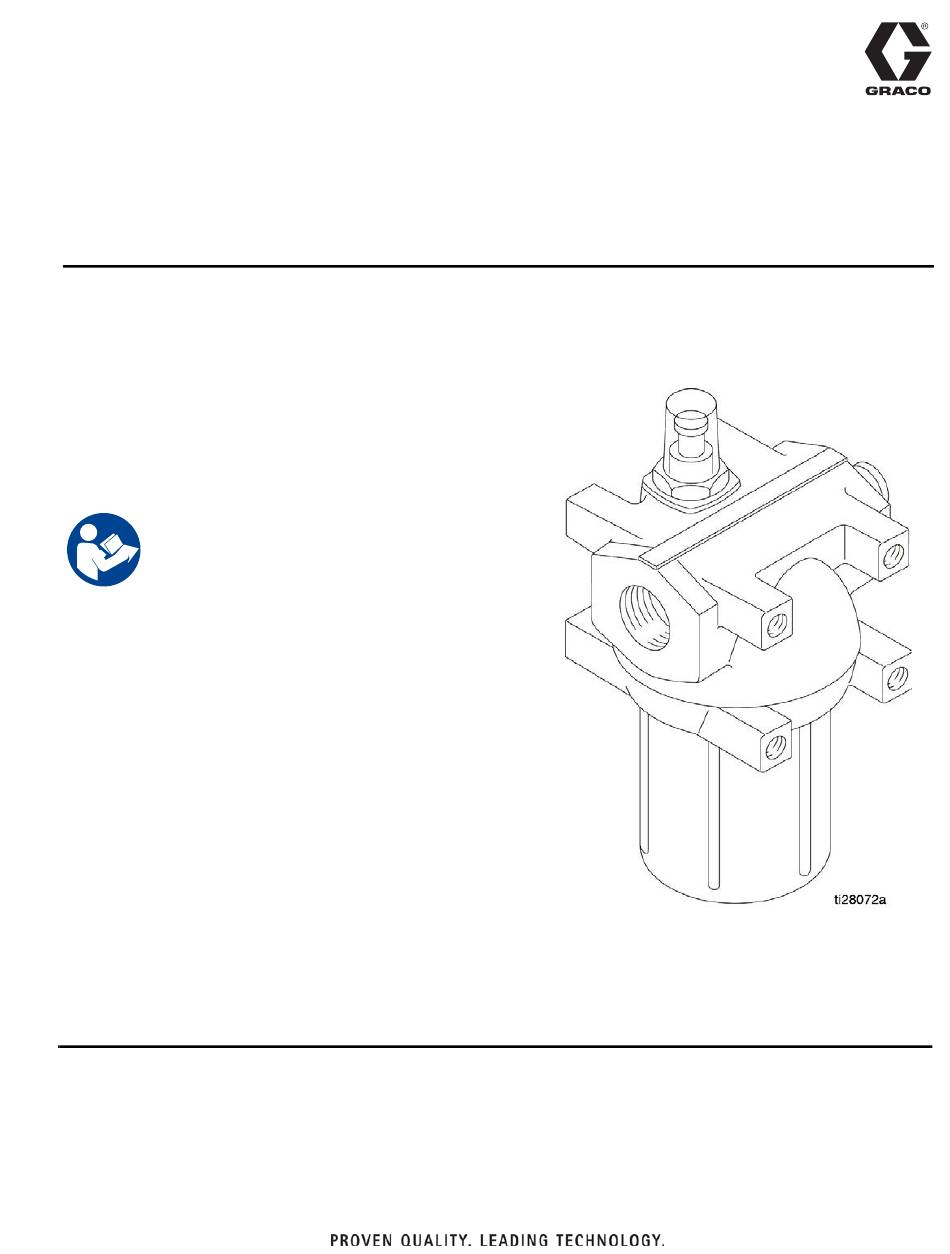

- Page 1 Instructions - Parts List Red Alert Filter 3A3940A For high pressure, medium volume grease lubrication systems only. Model: 17L366 3000 psi (21 MPa, 210 bar) Maximum Working Pressure 2 gpm (7.57 lpm) Flow Capacity 36 square inch (230 cm ) Filtering Area...
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
- Page 3 Warnings EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system com- ponent.
-
Page 4: Installation
Installation Installation Fluid Drain Valve (required) Pressure Relief Procedure Follow the Pressure Relief Procedure whenever you see this symbol. A fluid drain valve must be installed in the base of each fluid filter. The drain valve is used to relieve fluid pres- sure in the filter to reduce the risk of serious injury such as fluid injection and fluid splashing in the eyes or on the skin. - Page 5 Installation Dual Filter System (F . 3) Filter Bypass System (F . 4) A dual filter system enables you to redirect the fluid to The filter bypass system enables you to redirect the fluid another filter while one filter is cleaned or serviced. through pipes and bypass the filter while cleaning or ser- vicing the filter.
- Page 6 Service Service Parts 3/4” npt(f) inlet and outlet Part No. Description 3/4”-16 unf (f) drain port 104125 INDICATOR, filter 104440 VALVE, bypass 104441 HOUSING, filter 104445 O-RING, fluoroelastomer 104443 O-RING, backup, fluoroelasto- 129031 ELEMENT, filter, 45 mesh (380 micron) 104438 SPRING, element 104439 BOWL, filter...
- Page 7 Service Service Instructions (F . 5) Bowl (10), Element (8) and Spring (9) When the indicator shows 3/4 red, clean the element. If it is not cleaned promptly, the filter bypass valve opens and fluid will not be filtered. To reduce downtime, keep a spare bowl (10), element (8) and spring (9) on hand.
-
Page 8: Technical Data
Technical Data Technical Data Red Alert Filter Metric Maximum working pressure 3000 psi 21 MPa, 210 bar Flow capacity 2 gpm 7.57 lpm Filter 36 square inches Filter area 232 cm Filtration 380 micron Weight Weight 14 lbs 8 oz. 6.6 kg Materials of Construction Wetted parts... - Page 9 Technical Data Dimensions and Mounting Pattern 3A3940A...
-
Page 10: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
