Dual Frequency, Single Beam Transducer - Simrad TRANSDUCER - INSTALLATION GENERIC REV H Installation Manual

Simrad Echo sounder transducers

Dual frequency, single beam transducer

Transducer
cable
Black
Pair 1
White
Black
Pair 2
White
Screen
Black
Pair 3
White
Black
Pair 4
White
W802-6
Rev.E
58

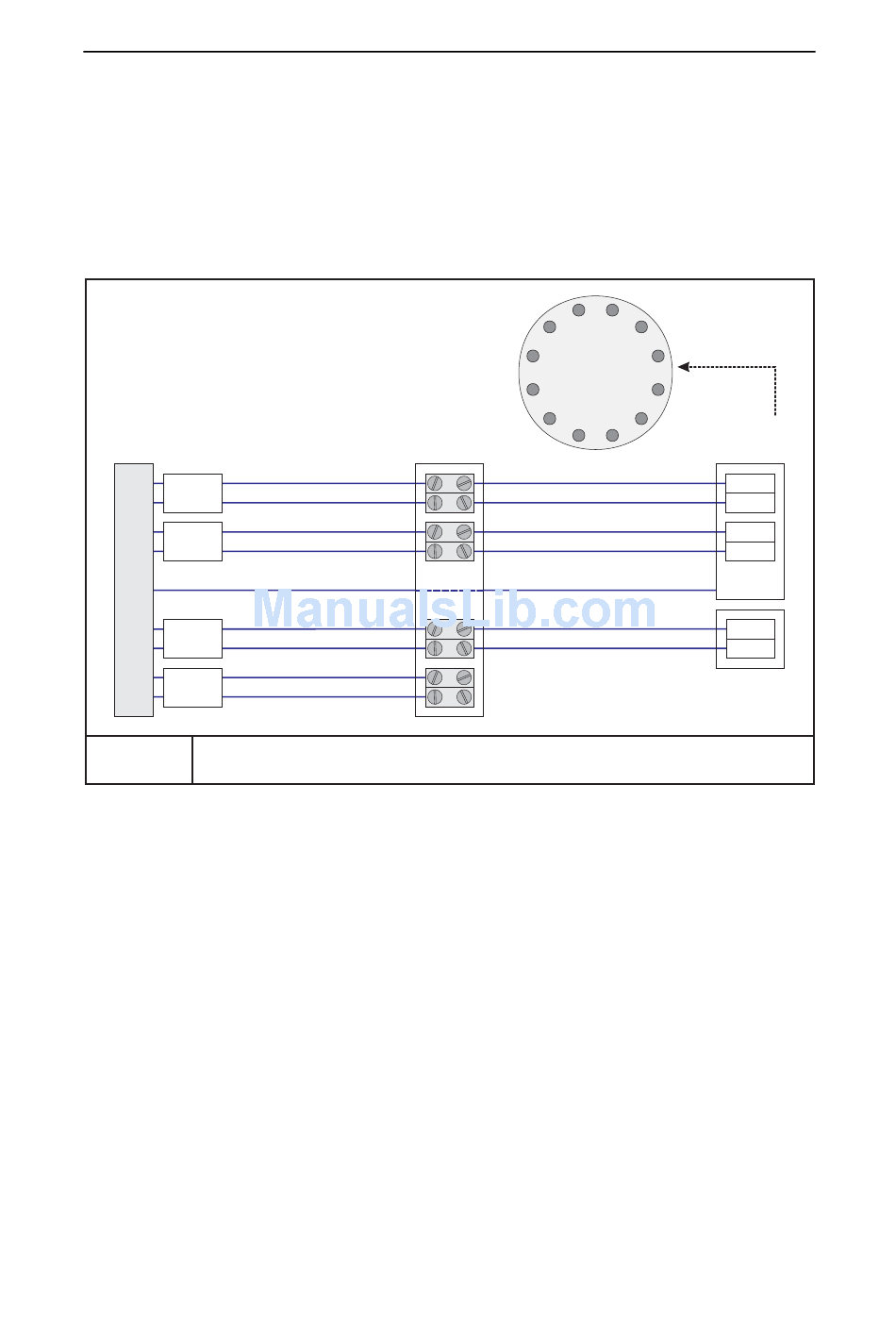

This is the termination of the transducer cable from a dual
frequency, single beam transducer to the socket on the General
Purpose Transceiver Unit (GPT). The other end of the cable is
permanently fixed to the transducer.
Junction Box (1:1)
(Optional)
Low frequency
High frequency
Thermistor
Not used
Dual frequency, single beam termination
If you need to splice the transducer cable, it is very important to
use the correct cable, and to avoid ground loops. We strongly
recommend the use of a junction box. We also recommend that
you install the transducer cable in a steel conduit.
Related topics
Cable splicing on page 36
Steel conduit on page 37
A N
B
M
C
L
D
K
E J
F H
GPT Transducer
Low frequency
High frequency
Connect to plug housing
Thermistor
"Auxiliary" 25-pin
D-connector on GPT
socket
C
D
H
J
4
17
851-160164/H
