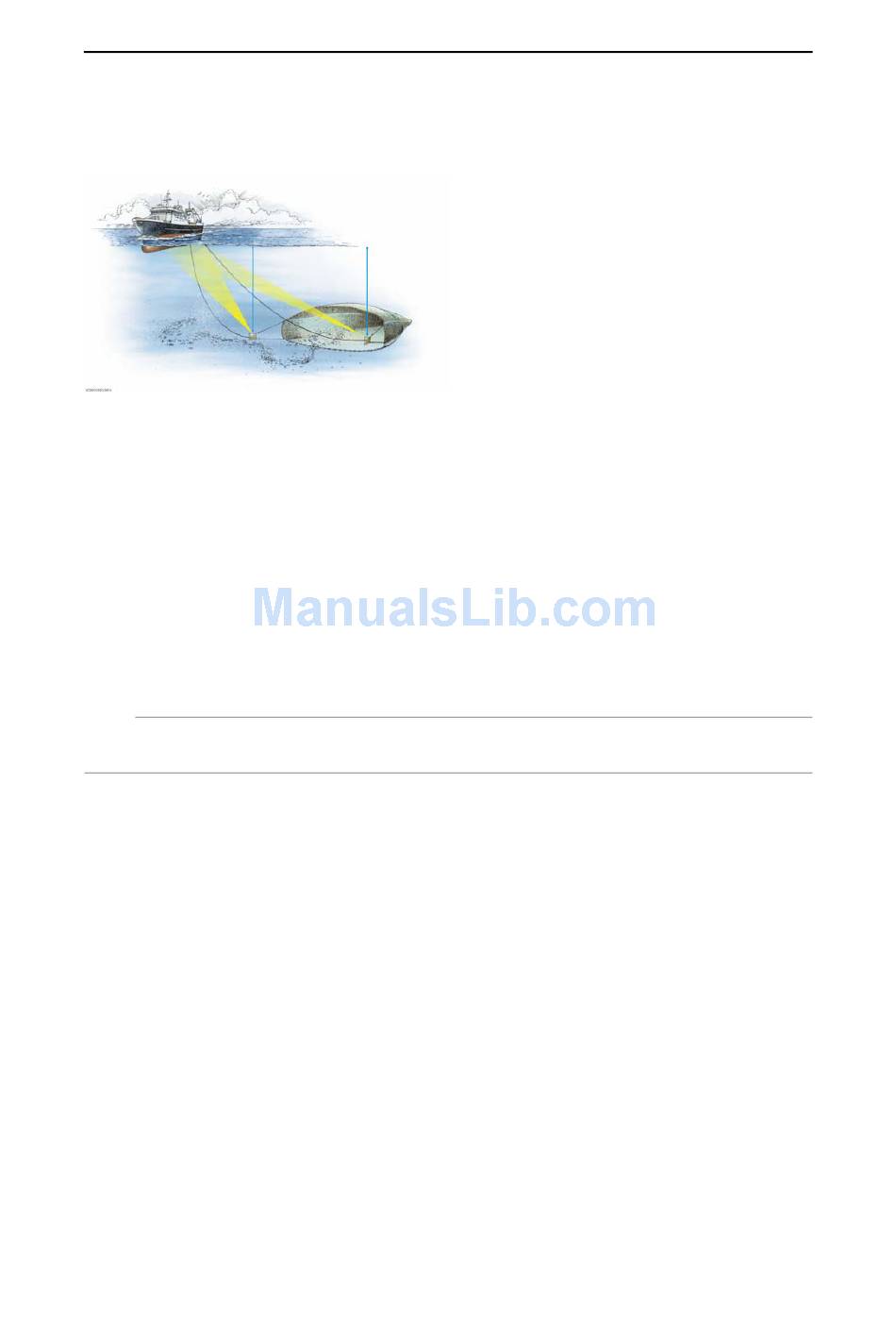

Figure 23 Vertical geometry measurements
Provided that the sensors are mounted on the trawl doors, the vertical geometry
measurements can be made using any of the following sensors:
• PI Depth
• PI Height/Depth
• PI Spread/Depth
• PI Remote/Depth
• PI Temperature/Depth
The configuration of the vertical geometry measurement is made in the
dialog during the configuration of a PI Spread sensor.
→ Select Sensors on page 142
Note
You must have one depth sensor on each trawl door to measure vertical geometry.
1 Set up the PI Depth, PI Height/Depth, PI Temperature/Depth or PI Remote/Depth
sensor as described in the dedicated procedure.
→ How to set up the PI Depth sensor on page 77
→ How to set up the PI Height/Depth sensor on page 86
→ How to set up the PI Temperature/Depth sensor on page 83
→ How to set up the PI Remote/Depth sensor on page 91
Set up the PI Spread or PI Spread/Depth sensor as described in the dedicated
2
procedure.
→ How to set up the PI Spread sensor on page 80
→ How to set up the PI Spread/Depth sensor on page 88
3 For the dedicated spread sensor, click
Connect the spread sensor to one or two depth sensors.
4
The available depth sensors will automatically be listed.
Click to save the settings and close the dialog.
5
OK
6 Observe that the vertical geometry is shown as a sensor view.
→ Vertical geometry view on page 56
