Simrad PI50

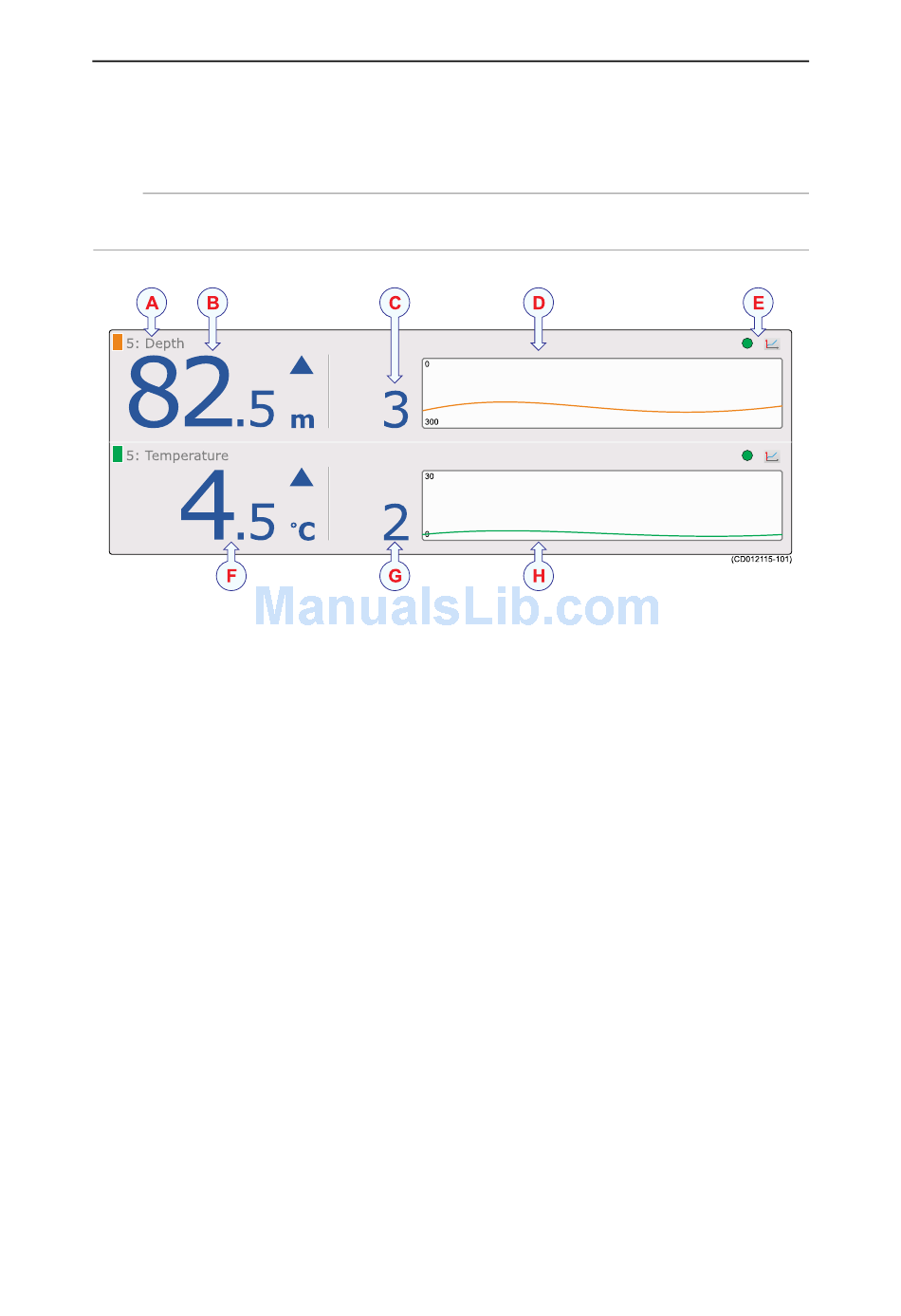

PI Temperature/Depth sensor view

Note
This is a "dual" sensor. It will seize two communication channels on the PI50.
A
Sensor colour code, identifier and name
sensor name is the
in the
Select Sensors
The colour code is issued automatically by the PI50 system. The same colour is
used in the
Trend view
B : This the current depth measured by the sensor. The current
Current depth
measurement unit is shown, as well as a blue triangle. The triangle indicates the
current vertical movement of the sensor; up or down. In this example the sensor
measures 82,5 meters from the sea surface and down to the sensor, and the sensor –
and thus the gear – is slowly rising with 3 meters each minute.
: This digit shows depth changes recorded by the sensor, and thus the
C
Depth changes
ascending or descending speed of the net. The value is shown in units per minute.
The direction is shown with the blue triangle. If the sensor does not detect any
depth changes, the arrow is removed.
D : When the size of the presentation rectangle permits, a history field
History field
is shown. The field offers a graphical presentation of the sensor information for
the last 20 minutes. The vertical range is set automatically defined by the current
measurements.
E
Pulse lamp and Trend view icons
signal is received from the corresponding sensor. The
closes) the
Trend view
F
Current temperature
current measurement unit is shown, as well as a blue triangle. The triangle indicates
if the temperature is increasing or decreasing. In this example the temperature is
measured to 4,5°C, and it is rapidly increasing with 2°C each minute.
46
: The identifier is the
parameter. You can control these parameters
Sensor Value Name
dialog.
and in the
History field
: The green
for the corresponding sensor.
: This the current temperature measured by the sensor. The
Label ID
.
icon flashes every time a
Pulse lamp
Trend view
parameter, the
icon opens (and
328458/A
