PI Height/Depth trend view

The PI Height/Depth provides two separate trend views, one for height and one for
depth. For information, see:
• PI Height trend view on page 59
• PI Depth trend view on page 58
Related topics
• PI Height/Depth sensor view on page 49
• PI Height/Depth trend view on page 62
• How to set up the PI Height/Depth sensor on page 86
• PI Height/Depth purpose and application on page 184

PI Spread/Depth trend view

The PI Spread/Depth provides two separate trend views, one for spread and one for
depth. For information, see:
• PI Spread trend view on page 59
• PI Depth trend view on page 58
Related topics
• PI Spread/Depth sensor view on page 50
• PI Spread/Depth trend view on page 62
• How to set up the PI Spread/Depth sensor on page 88
• PI Spread/Depth purpose and application on page 185

PI Twin Spread trend view

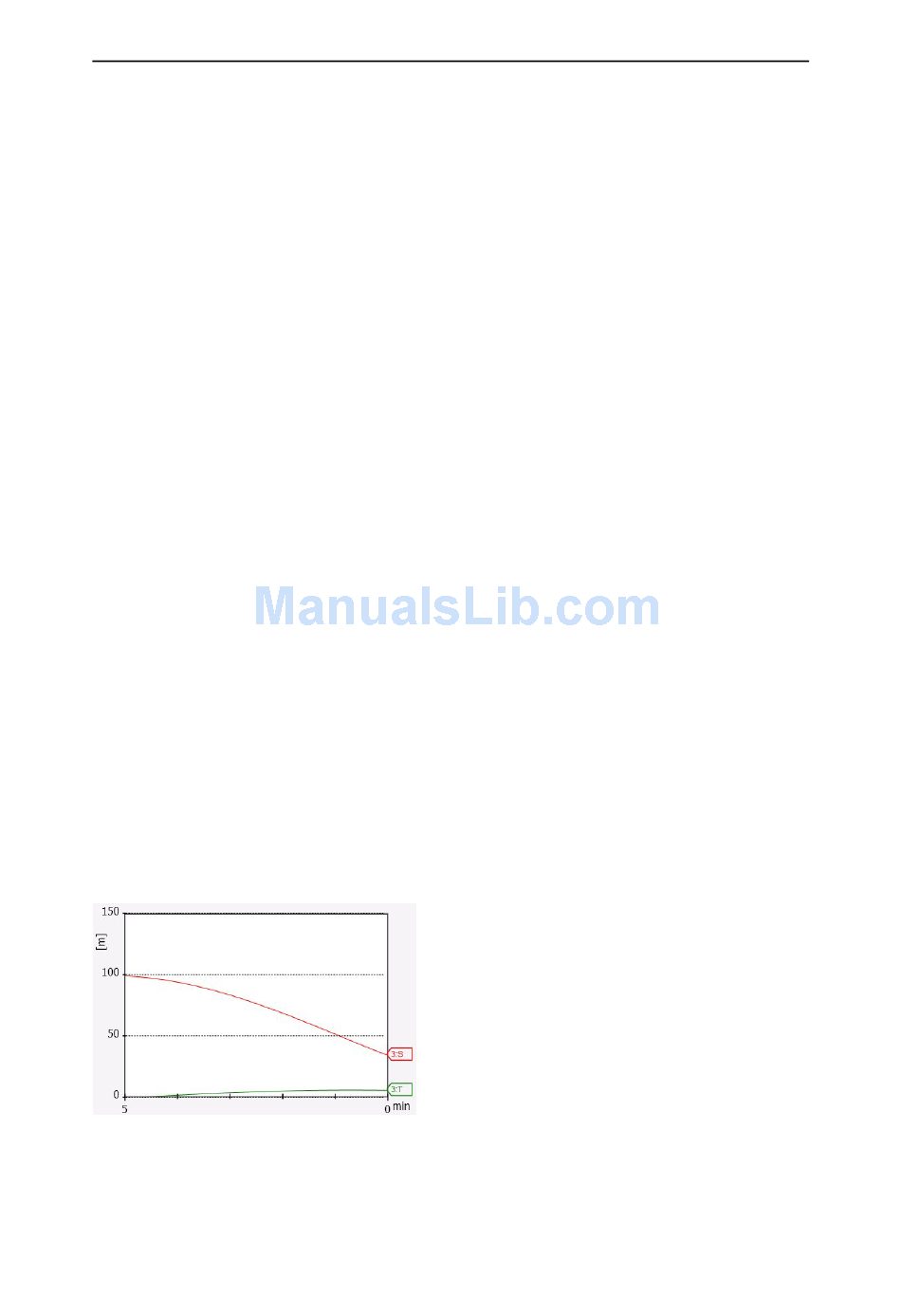

Figure 21 PI Twin Spread trend view
• The horizontal scale is defined by the parameter selected in the
button on the
Display
The time can be selected from 5 to 1440 minutes.
→ Trend History Length on page 136
62
The PI Twin Spread trend view shows the
distance between the trawl doors in a dual
trawl system.
• Two curves are shown, one for the port
• The vertical scale is defined by the
menu.
spread, on one for the starboard spread.
settings made with the
buttons on the
Range
→ Range on page 123
→ Start Range on page 124
Trend History Length
and
Range Start
menu
Main
