Simrad PI50

PI Remote/Depth purpose and application

This is an PI sensor. To charge this sensor, use the
L-type
Simrad PI MaxiCharger

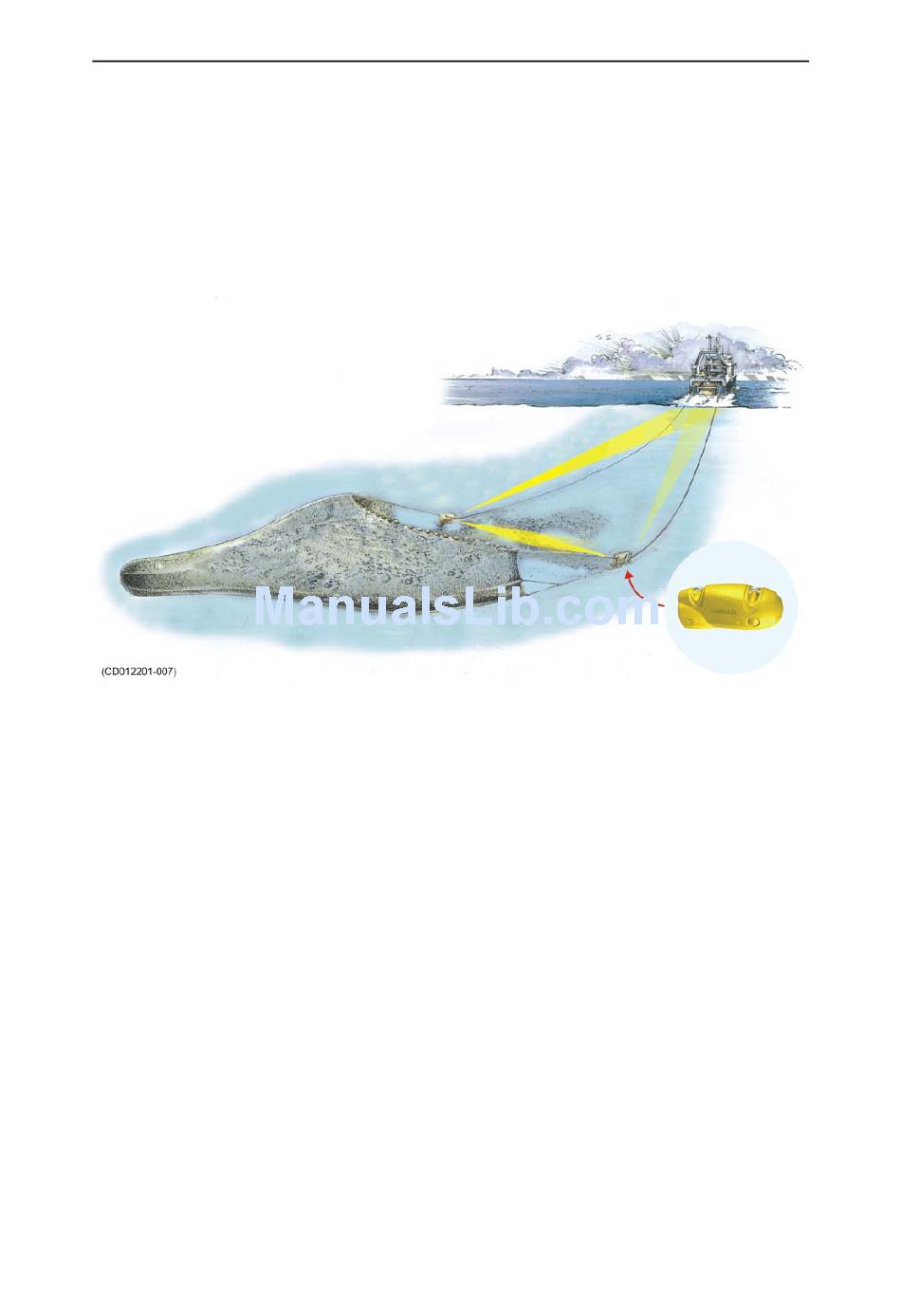

Figure 41 PI Remote/Depth application
The purpose of the Simrad PI Remote/Depth dual sensor is to achieve accurate
measurements of the water depth, while at the same time communicate with the PI
Spread or PI Spread/Depth sensor to measure the distance between the two trawl doors.
In order to measure the distance, it must be installed in a pair with a PI Spread or
PI Spread/Depth sensor.
The PI Remote/Depth sensor has been developed to be used on both bottom and pelagic
trawls. The sensor is normally installed on the starboard trawl door using an adapter.
Related topics
• PI Remote/Depth sensor view on page 55
• PI Remote/Depth trend view on page 63
• How to set up the PI Remote/Depth sensor on page 91
• PI Remote/Depth purpose and application on page 188
188
.
or the
Simrad PI Charger
328458/A
