Setup menu; functions and dialogs

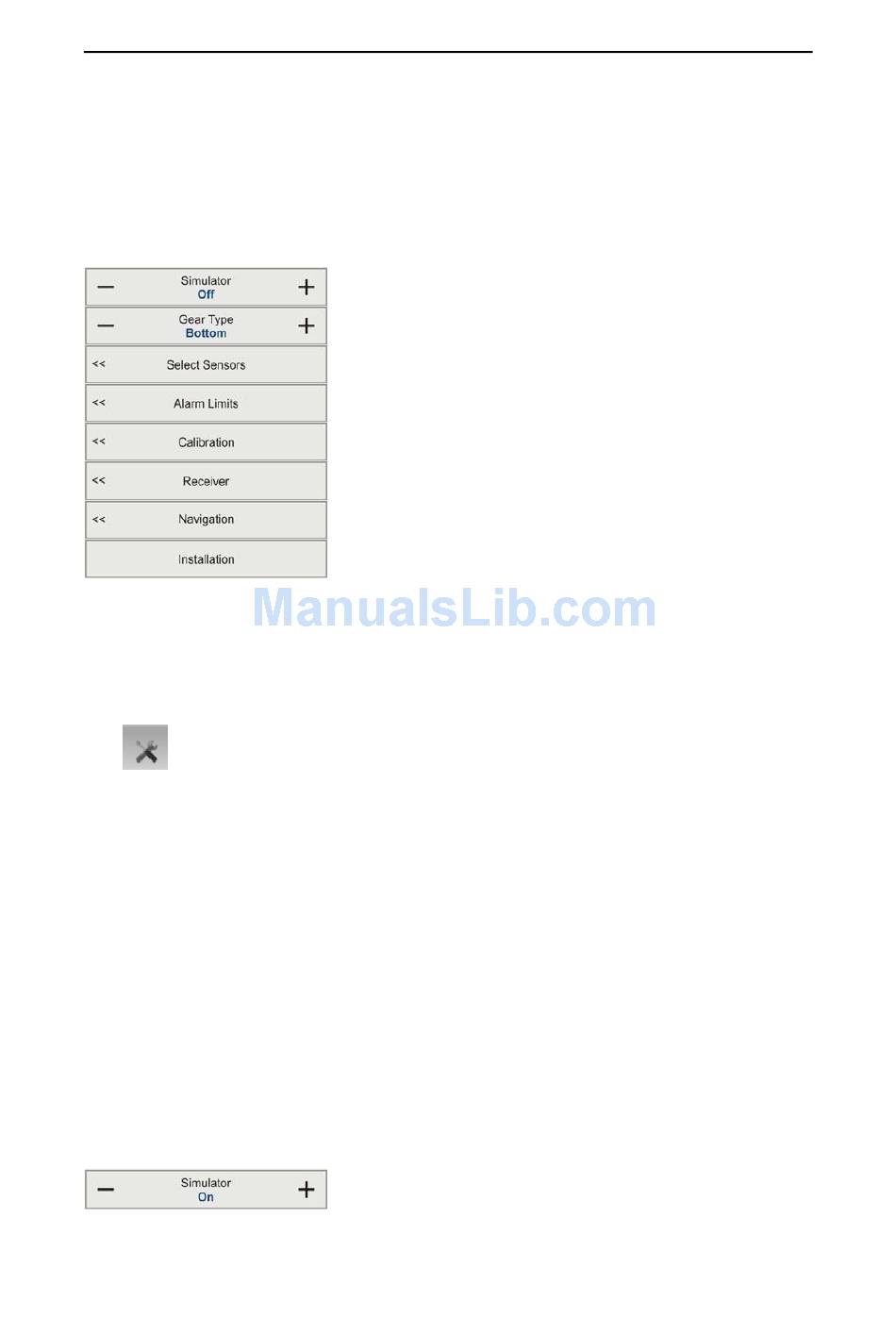

The following functions and parameters are available from the
How to open the Setup
menu
Click once on the icon
1
under the menu to
Main
open the menu
Setup
2 Click one more time
on the icon to close the
menu.

Simulator

The function is available by clicking the
Simulator
328458/A
• The will provide artificial data to support
Simulator
hand-on PI50 training.
→ Simulator on page 141
• The function allows you to set up the PI50
Gear Type
to work with either a pelagic or a bottom trawl.
→ Gear Type on page 142
• The
Select Sensors
sensors you will use to monitor your gear.
→ Select Sensors on page 142
• The
Alarm Limits
related to the information provided by the sensors.
→ Alarm Limits on page 148
• The dialog allows you to start automatic
Calibration
calibration of the depth sensors.
→ Calibration on page 149
• The dialog allows you to set up the detailed
Receiver
communication parameters, and to "fine tune" the
receiver circuitry for optimal performance in various
sea conditions and for various gear types.
→ Receiver on page 150
• The dialog controls how the PI50 receives
Navigation
information from external peripherals, such as
navigation and compass gyro systems.
→ Navigation on page 153
• The button opens a sub-menu with two
Installation
choices. You can set up the inputs and outputs from
peripheral devices, and administrate the software
license.
→ Installation on page 157
