TOOLS RECOMMENDED
9/16 Wrench or socket
7/8 Drill bit & drill (optional)
1
3
NOTE: Some drop in liners may require trimming
in the corners to fit the rail in the opening.
BAK Industries • 720 Jessie Street, San Fernando, CA 91340 • 818-365-9000 • Fax: 818-365-9022 • bakindustries.com

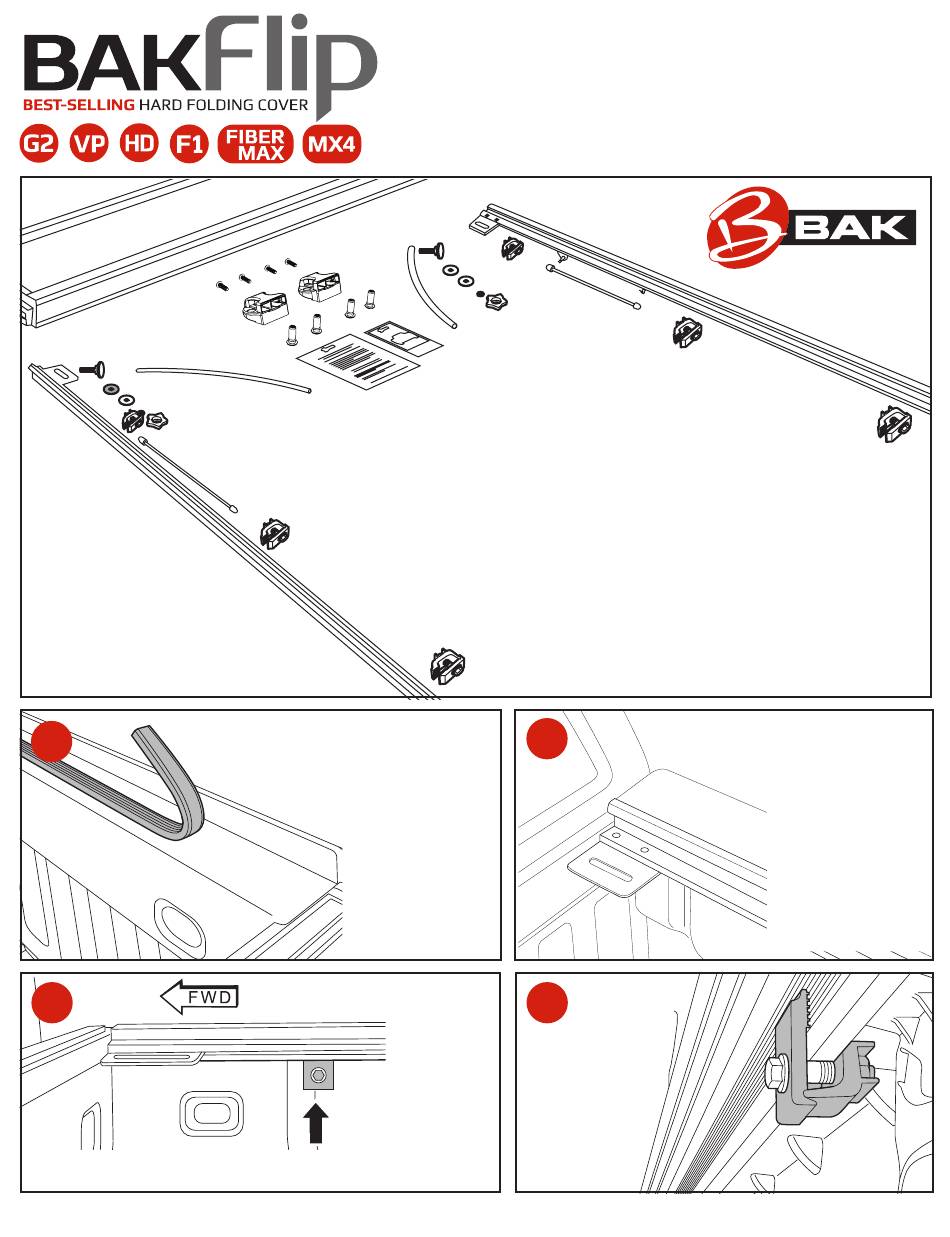

INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly. Call 844-779-8986
Mon - Fri 5:30 am - 4 pm Pacific Time
PARTS INCLUDED IN YOUR KIT
•
1 x Hard folding cover assembly
•
3 x D Shaped cab bumpers
•
1 x Bulkhead seal
(¾ x ¾ x truck width)
•
1 Pair BAKFlip rails (L&R)
•
2 x Black drain tubes
If the truck does
not have a drop
in bedliner, install
the cab/bulkhead
seal (weather
strip). Wipe paint-
ed surface with
isopropyl alchol
before applying.
If the truck has a
drop in bedliner,
no seal will be
needed.
Make sure
the rail is
clamped
square as
shown.
Start at the
front, and
place the
first clamp
approx 6 to 9
inches back.
1 HARDWARE BAG INCLUDING
•
6 x Clamps (8' ft trucks incl.
8 ea)
•
2 x Elevator bolt (w-large
flat head)
•
4 x Rubber washers
•
2 x Large flat washers
•
2 x Lock washers
•
2 x Star knobs (thumb screws)
•
2 x Buckle ends
•
4 x Machine screws
•
4 x Threaded posts
SELECT SYSTEMS ONLY!
8 x Angle shims
2 x Spacer shims
2
4
Make sure the
clamp is inserted
all the way up
into the rail and
clamp teeth are
alinged to rail
slots to ensure
a secure grip.
(not pictured)
Close tailgate.
Place BAKFlip rail
on truck bed with
silver bracket all
the way forward
and toward the
center of bed as
shown. Refer to
enclosed
Spacing
& Shimming Sheet
for more details.
Rails should be
completely level.
Part# 318A0029 Rev. 4-13-16
©Laurmark Enterprises, Inc., 2016
Advertisement
Related Manuals for REALTRUCK BAKFlip
Summary of Contents for REALTRUCK BAKFlip
- Page 1 • 4 x Rubber washers (¾ x ¾ x truck width) • 2 x Large flat washers • 1 Pair BAKFlip rails (L&R) • 2 x Lock washers • • 2 x Black drain tubes 2 x Star knobs (thumb screws) •...
- Page 2 (approx 10 ft/lbs). Repeat steps 2-7 on opposite side. IMPORTANT Set the cover in the folded position on the BakFlip rails towards the front of cab with the small panel forward. The small panel faces forward, toward the cab and folds down over the silver brackets.
- Page 3 (approx. 1/4” clearance). Route the front drain Once hoses from the end positioned, of the BAKFlip rail fold cover over out through manu- toward cab facturer available bed and tighten plug. Simply remove...
-
Page 4: Important Notice
Sometimes, your side seals of your BakFlip cover will appear to be wrinkled shortly after initially installing the cover. To assist seals in laying flat you can leave your truck in the sun, or to expedite, just apply heat with a hair dryer or heat gun. - Page 5 DO NOT shut your tailgate when the rear panel of your cover is closed. EXCEPTION - BAKFlip MX4 offer’s a universal tailgate seal which allows the tailgate to close with the cover up or down. TO RAISE THE TAILGATE PANEL Open the tailgate and reach under the panel for the cable at the ends of the panel housing.
-
Page 6: Warranty
Warranty BAK® Industries (“BAK”) warrants your BAKFlip Hard Folding Cover to be structurally free from defects in material and workmanship for the period as outlined in the table below from the retail date of purchase. Warranty registration must be on file and/or proof of original purchase (detailed and dated receipt) required for warranty service. Warranty is non- transferable and applies to the original purchaser of the BAK product only.
