APPLICATION
Dodge Ram Regular Cab *
Dodge Ram Crew Cab
Dodge Ram Mega Cab
*Modification required to running board assembly. See Item 1 on page 3.
NOTE: GAS MODELS ONLY!
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by RealTruck AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
© RealTruck Group, Inc., 2024 • Three-year limited warranty. • Professional installation is recommended.
www.realtruck.com
I N S T A L L A T I O N G U I D E
2500/3500
2500/3500
2500/3500
I N S T A L L A T I O N G U I D E
• Made in Mexico
®
1/14
MODEL YR
2019 - 2023
2019 - 2023
2019 - 2023
PART #
76243-01A
76243-01A
76243-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
2
3
1
4= Experienced
TOOLS REQUIRED
q Safety goggles
q Measuring tape
q 13mm wrench
q 19mm wrench
q 13mm socket
q 10mm socket
q Ratchet wrench and extension
q Wire stripper / cutter
q 3/16" hex key (allen wrench)
q 4mm hex key (allen wrench)
q Rivet Tool
q 1/8", 9/32" and 3/16" Drill Bit
q T27 torx Bit
q Center Punch
q Anti Corrosion Paint
q Electrical tape
WARRANTY
5-Year Limited Warranty
IM76243 rev 07.08.24
4
Advertisement
Related Manuals for REALTRUCK AMP Research PowerStep
Summary of Contents for REALTRUCK AMP Research PowerStep
- Page 1 Anti Corrosion Paint q Electrical tape WARRANTY 5-Year Limited Warranty REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST Designed and manufactured by RealTruck AMP Research • Made in Mexico ® Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/ ©...
- Page 2 2. Seat motor into position on the three mounting bosses. This may require an adjustment of the gear by moving the swing arms. 3. After seating into place, fasten the motor with the three motor mount screws with 4mm Hex Head. Tighten screws to 36 in-lbs (4N-m). Do not over torque. www.realtruck.com 2/14 IM76243 rev 07.08.24...
- Page 3 Running Board assembly Driver Side Linkages Front Idler Linkage Assembly - Driver Side Rear Motor Linkage Assembly - Driver Side Passenger Side Linkages Rear Motor Linkage Assembly - Passenger Side Front Idler Linkage Assembly - Passenger Side www.realtruck.com 3/14 IM76243 rev 07.08.24...
- Page 4 PARTS LIST AND HARDWARE IDENTIFICATION Rivet Nut Tool STA Controller Rivet Nut Blind Rivet Wire Harness Socket Cap Screw Cable Tie (7”) Conical Washer Bolt Cable Tie (11”) Washer Button Head Posi-Lock Grommet Torx Screw Connector www.realtruck.com 4/14 IM76243 rev 07.08.24...
- Page 5 R E A L T R U C K A M P R E S E A R C H R E S E A R C H P O W E R S T E P – D O D G E R A M LED Lamp Butt Connector Reinforcement Bracket OBD II Plug Spacer (front drive linkage) Blind Rivet Rear Body Mount Front Body Mount www.realtruck.com 5/14 IM76243 rev 07.08.24...
- Page 6 An extra Reinforcement Plate. NOTE: Verify plate is pulled Hex Bolt and M8 Washer is supplied to install rivet flush to the body before securing pop rivet. nuts. www.realtruck.com 6/14 IM76243 rev 07.08.24...
- Page 7 Rear Drive linkage: Set linkage into position. Use supplied conical washer bolts to attach linkage to body mount plate. Use rear most bolt as shown on driver side. Passenger side will use rear mount position as well. Torque bolts to 16ft-lbs. www.realtruck.com 7/14 IM76243 rev 07.08.24...
- Page 8 (9) to attach linkage to body mount plate. Torque bolts to 16ft-lbs. 9 11 The jogs in the lower part of the linkages point toward one another, as shown, Note: Linkage position described in parts list on page 3. www.realtruck.com 8/14 IM76243 rev 07.08.24...
- Page 9 Using a 4mm hex key torque bolts to 36 in-lbs. Route the two Wire Harness legs down over See page 2 for motor installation instructions. the wheel wells toward Motor Linkages, long leg across to the passenger side. Secure harness with tie wraps. www.realtruck.com 9/14 IM76243 rev 07.08.24...
- Page 10 Slice small opening as shown Silicon lubricant may be used for ease of passage. below to run trigger wires through. The trigger wires will come out just above and to the left of the brake pedal. www.realtruck.com 10/14 IM76243 rev 07.08.24...
- Page 11 OBD II port on the vehicle. Secure harness with supplied tie wraps. Secure harness with supplied tie wraps. Make sure wires are away from E-brake mechanism and brake pedal assembly. 7 23 www.realtruck.com 11/14 IM76243 rev 07.08.24...
- Page 12 To Powerstep Motors Pass-Through Harness Option Powerstep Control Module Vehicle Port To Vehicle Power (12V) To Powerstep Motors Vehicle Port Pass-Through Harness (pin-topin at each terminal) New Vehicle Port Powerstep (replaces original port) Connection Module www.realtruck.com 12/14 IM76243 rev 07.08.24...
- Page 13 Using supplied butt connectors, connect the lamp wires. Red to Red, Black to Black. Once Crimped use heat gun to shrink tube. Close and wrap with conduit and electrical tape. Secure all loose wires with cable ties, with lamp wires pulled upward to avoid any wire snagging. www.realtruck.com 13/14 IM76243 rev 07.08.24...
- Page 14 Power Steps or until 5 minutes has expired with the doors open. When the lights timeout after 5 minutes, they can be reillumintated by closing and opening any door of vehicle. www.realtruck.com 14/14...
- Page 15 • Faster and easier access to customer service and tech support in the unlikely event you need warranty or product support. • Registration helps us keep you up to date on product information and offers. To view other RealTruck products that may be offered for your vehicle. Please visit: www.realtruck.com Rev 05.30.24...
- Page 16 Caution! Keep hands away when the running board is in motion. 5-YEAR LIMITED WARRANTY RealTruck / AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
Need help?
Do you have a question about the AMP Research PowerStep and is the answer not in the manual?
Questions and answers

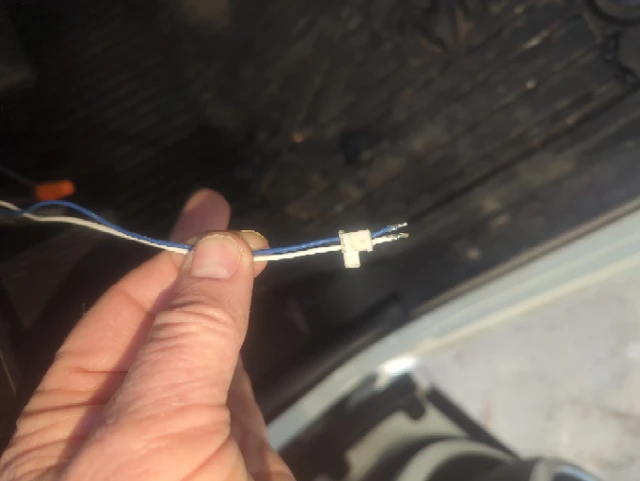

I installed the amp research power step on a Dodge ram 2500 diesel. The last step I plugged the door leg of the OBM wiring into the wrong green box (There are 2 side by side) I was unable to remove the plug without destroying it. Can I purchase the OBM portion or a pigtail of the door sensor wires?
