TOOLS REQUIRED
•
Scissors or utility knife
•
Isopropyl alcohol
•
1/2" Wrench or socket
•
Phillips screwdriver
•
5/8" Drill bit & drill
•
T-30 Torx driver
•
3/8" drive short extension
•
Ratchet

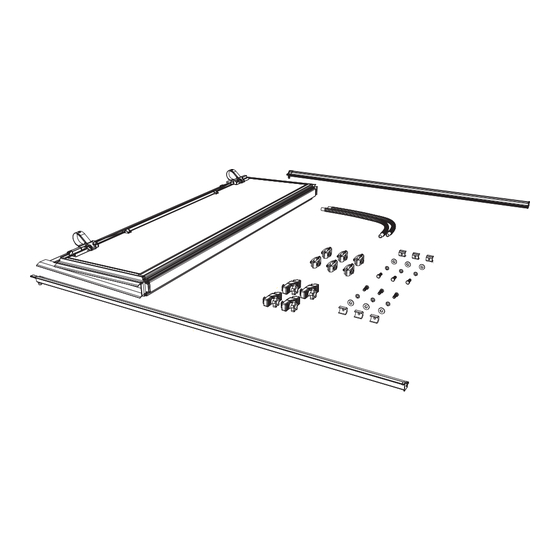

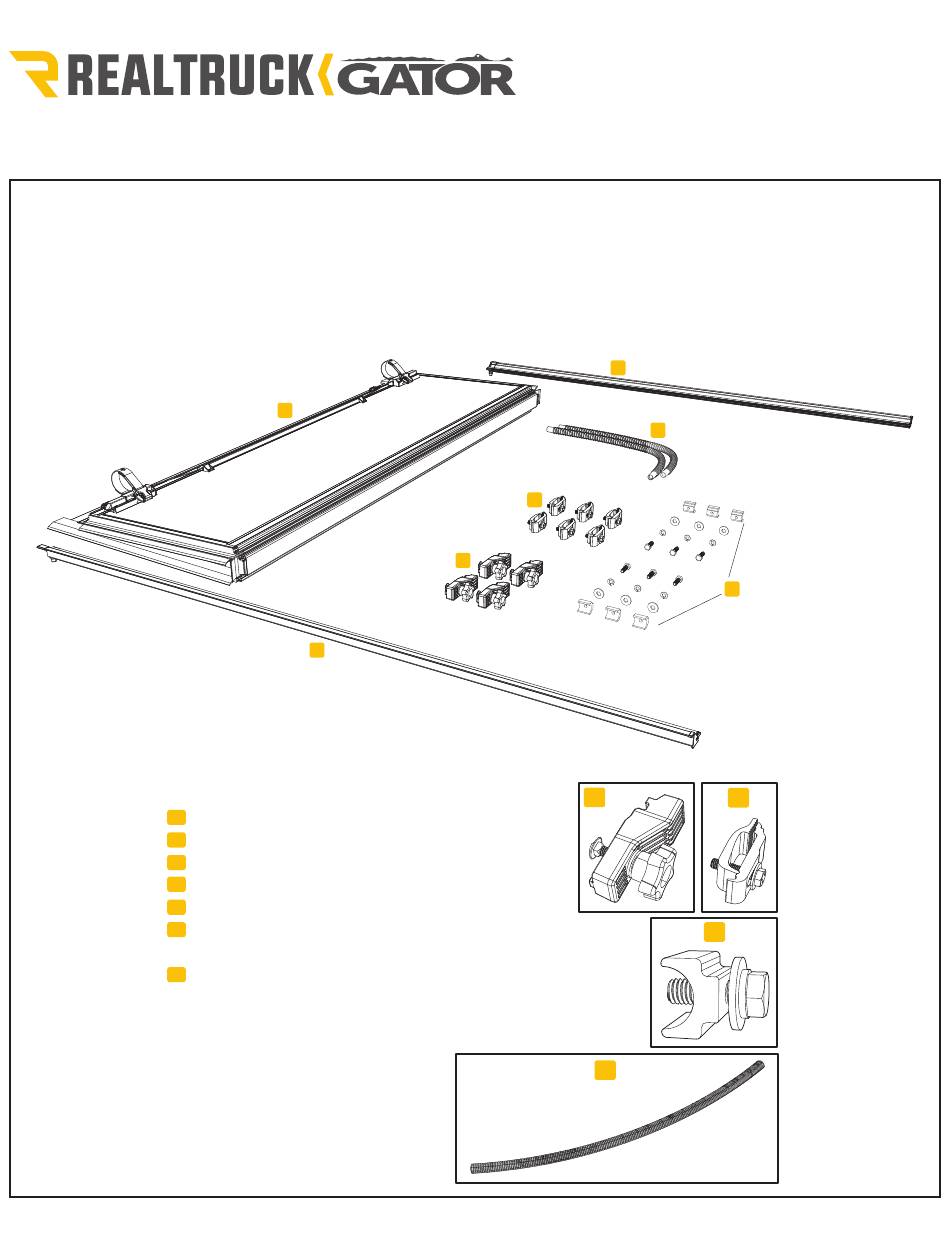

PARTS INCLUDED IN THE BOX
1x Hard fold cover
A
1x Driver side rail
B
1x Passenger side rail
C
4x Cover retainer clamps
D
6x Clamps
E
6x T-nut kits (5/16" flat washer,
F
5/16" lock washer, hex head bolt)
2x Drain tubes
G
RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023
NOTE: It is important that all areas
where the bed cover mounts are clean
and free of debris prior to installing.
A
B
2007-2022+ TOYOTA TUNDRA
EFX HARD FOLD TONNEAU
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 855-427-4568 Mon - Fri 8:00 a.m. - 6:00 p.m. EST
C
E
D
D
G
G
F
E
F
Part# GC-C8_Install
Rev. 12-4-23
Advertisement
Table of Contents
Related Manuals for REALTRUCK GATOR
Summary of Contents for REALTRUCK GATOR
- Page 1 1x Driver side rail 1x Passenger side rail 4x Cover retainer clamps 6x Clamps 6x T-nut kits (5/16” flat washer, 5/16” lock washer, hex head bolt) 2x Drain tubes Part# GC-C8_Install Rev. 12-4-23 RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023...
- Page 2 Repeat on passenger side. Clamp Assembly Front of Back of Clamp G Clamp G Side Rail Accessory Rail End Cap T-nut kit Head Bolt End Cap Flat Washer Lock Washer RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install Rev. 12-4-23...
- Page 3 5/8” hole on both sides. Most 22+ Model Trucks Most 07-21 Model Trucks RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install Rev. 12-4-23...
- Page 4 (D) and shift the cover (A) until positioned correctly. Retighten the cover retainer clamps once the desired fitment is reached. If adjustments to the slam latch are needed, see the directions on the next page. RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install Rev. 12-4-23...
- Page 5 At the same time slide the passenger side of the cover. the latch bracket to adjust. the housing away from the latch Retighten the screws. Slide assembly. the latch housing back on. RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install Rev. 12-4-23...
-
Page 6: Limited Warranty
Other than postage or shipping charges, no charge will be made for repair or replacement under this warranty. This warranty gives you specific legal rights. As an owner, you may also have additional rights and remedies under the laws of your state. WARRANTY REGISTRATION Warranty registration must be on file and/or proof of original purchase (detailed and dated receipt) required for warranty to be effective. https://realtruck.com/warranty-registration REGISTER YOUR WARRANTY ONLINE RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install Rev. 12-4-23... -
Page 7: Care And Maintenance
Slightly lift up on the cable guide extrusion. Pull on both side of the cable. Wavy Side Seal: Seal may be wavy when removed from box. Allow ample sunlight for seal to lay flat and relax. RealTruck Gator • 855-427-4568 ©RealTruck Group, Inc., 2023 Part# GC-C8_Install...
Need help?
Do you have a question about the GATOR and is the answer not in the manual?
Questions and answers
how do I open the lo pro on my tundra
