REALTRUCK BAKFlip MX4 Installation Sheet
For 2016+ toyota tacoma
Hide thumbs
Also See for BAKFlip MX4:
- Installation sheet (7 pages) ,
- User manual ,
- Installation sheet (7 pages)
Advertisement
TOOLS REQUIRED
•
Scissors or utility knife
•
Isopropyl alcohol
•
1/2" Wrench or socket
•
Phillips screwdriver
•
5/8" Drill bit & drill
•
T-30 Torx driver
•
3/8" drive short extension
•
Ratchet

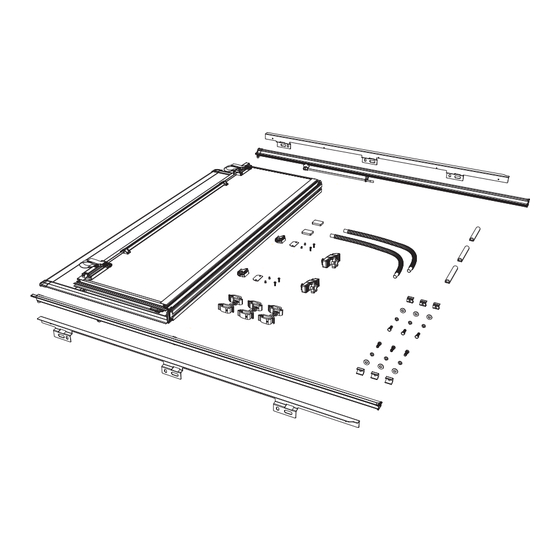

PARTS INCLUDED IN THE BOX
1x Hard fold cover
A
1x Driver side rail
B
1x Passenger side rail
C
1x Adaptor rail driver side
D
1x Adaptor rail passenger side
E
2x Cover retainer clamps
F
6x Clamps
G
2x Buckle ends
H
2x Gaskets
I
4x Screws
J
4x Nutserts
K
6x T-nut kits (5/16" flat washer,
L
5/16" lock washer, hex head bolt)
2x Bulkhead gaskets
M
3x D-shaped cab bumpers
N
2x Drain tubes
O
RealTruck BAK Industries • 1100 N. Glenstone Ave. Suite 140, Springfield, MO 65802 • 818-365-9000 ©RealTruck Group, Inc., 2024
NOTE: It is important that all areas
where the bed cover mounts are
clean and free of debris prior to
installing.
A
B
D
2016+ TOYOTA TACOMA
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 818-365-9000 Mon - Fri 8:30 am - 7:00 pm EST
or email support@bakindustries.com
E
C
M
H
I
K
F
J
G
F
G
K
J
L
O
N
L
H
I
M
N
O
Part# 318S0074 Rev. 1-12-24
