REALTRUCK UnderCover Flex Tonneau Cover Installation Sheet

REALTRUCK UnderCover Flex Tonneau Cover Installation Sheet

Ford ranger

Advertisement

TOOLS REQUIRED
Scissors or utility knife
Isopropyl alcohol
1/2" Wrench or socket
Phillips screwdriver
7/16" Wrench
13mm Wrench or socket
T-30 Torx driver
Phillips screwdriver

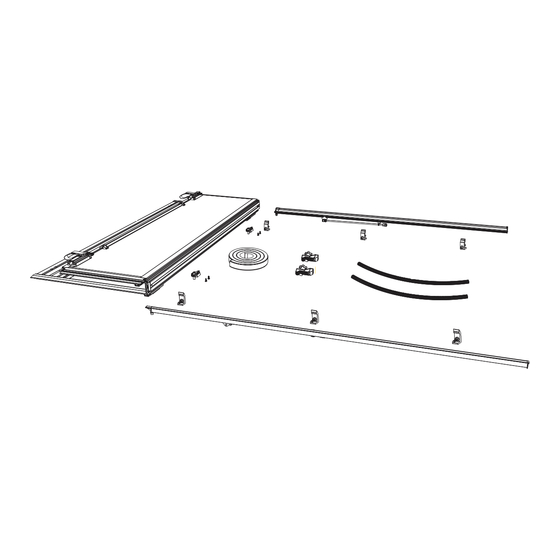

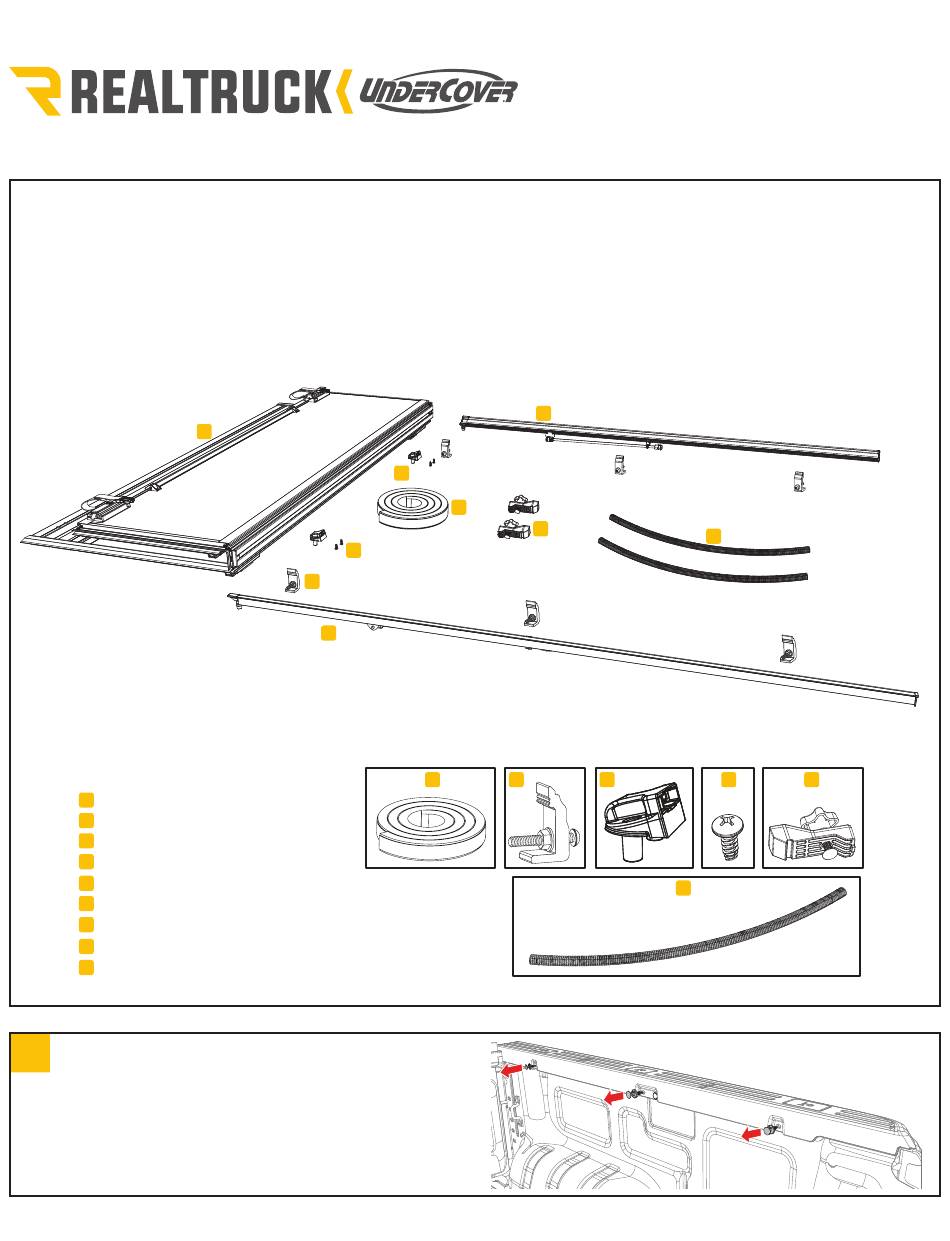

PARTS INCLUDED IN YOUR KIT
1x Hard fold cover
A
1x Driver side rail
B
1x Passenger side rail
C
1x Bulkhead seal
D
6x Clamp assembly
E
2x Buckle ends
F
4x Screws
G
2x Cover retainer clamps
H
2x Drain tubes
I
1
Remove the three corner plastic clips from the
passenger and driver side bed caps as shown below.
Pry out the center first, then pry out the entire clip. These
will not be used again unless you permanently remove the
bed cover assembly.
RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023
NOTE: It is important that all areas
where the bed cover mounts are clean
and free of debris prior to installing.
A
G
E
B
2024+ FORD RANGER
FLEX
INSTALLATION SHEET
Any y damaged or missing parts?
n
Parts s will be shipped to you directly
Call 866-900-8800 Mon - Fri 8:00 am - 5:00 pm CST
or email info@undercoverinfo.com
C
F
D
H
D
E
ULTRA FLEX
ARMORFLEX
l
l
I
F
G
I
H
Part# FX-E4_Install Rev. 1-2-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UnderCover Flex Tonneau Cover and is the answer not in the manual?

Questions and answers

Summary of Contents for REALTRUCK UnderCover Flex Tonneau Cover

  • Page 1 Pry out the center first, then pry out the entire clip. These will not be used again unless you permanently remove the bed cover assembly. Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
  • Page 2 Tightening Bolt Rail Truck Truck Bulkhead Bed Cap Bed Cap Clamp Sheet Bolt Metal Washer Front / Cab Rear / Tailgate RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023 Part# FX-E4_Install Rev. 1-2-24...
  • Page 3 (G). DO NOT use a screw gun, securely tighten by hand only. Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
  • Page 4 Attach the buckle at the bulkhead, then pull the strap towards the cab. to take up the slack and secure the cover. Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
  • Page 5 At the same time slide Re-tighten the screws and slide the housing away from the latch the latch housing back on. assembly. Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
  • Page 6: Limited Warranty

    Warranty registration must be on file and/or proof of original purchase (detailed and dated receipt) required for warranty to be effective. https://realtruck.com/undercover-warranty REGISTER YOUR Serial Number_______________________________________________________ WARRANTY ONLINE Date of Purchase ___________________________________________________ Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
  • Page 7: Care And Maintenance

    Wavy Side Seal: Seal may be wavy when removed from box. Allow ample sunlight for seal to lay flat and relax. Part# FX-E4_Install Rev. 1-2-24 RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023...
