A S S E M B L Y & I N S T A L L A T I O N G U I D E
APPLICATION
GM Truck (Full-size Trucks)

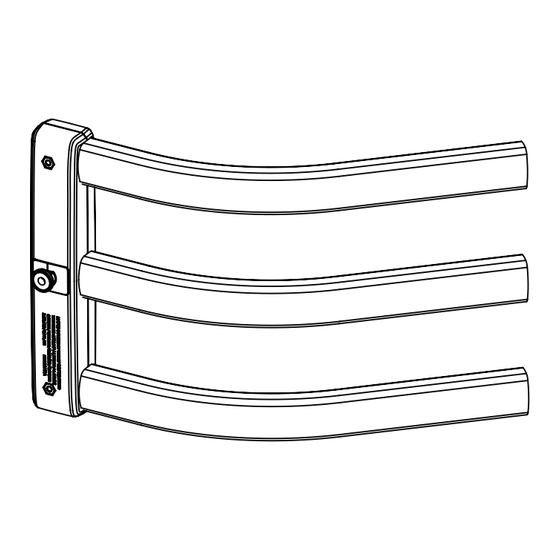

BEDXTENDER HD™ shown assembled and installed on truck.
Remove contents from box and check for damage.
Verify all parts against parts list.
Read and understand instructions completely before attempting assembly
and installation.
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
© 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended.
www.realtruck.com
• Made in Mexico
®
1/6
PART #
74805-00A (Silver)
INSTALLATION TIME
SKILL LEVEL
1
TOOLS REQUIRED
Phillips screw driver
Torx T-25 driver
Power drill
1/8" drill bit
21/64" drill bit
Center punch
Supplied templates
Soapy Water
WARRANTY
3-Year Limited Warranty
74805-01A(Black)
1 Hour
4
2 3
1= Easy
rev 04.23.24
