REALTRUCK UnderCover Flex Tonneau Cover Installation Sheet

TOOLS REQUIRED
•
Scissors or utility knife
•
Isopropyl alcohol
•
1/2" Wrench or socket
•
Phillips screwdriver
A

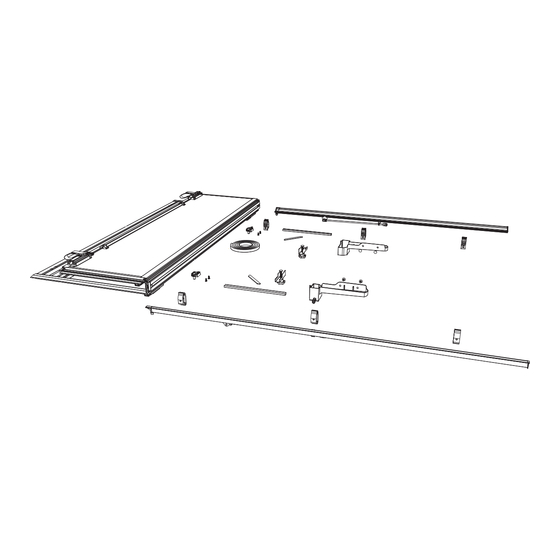

PARTS INCLUDED IN YOUR KIT
1x Hard fold cover
A
1x Side rails, driver side (pre-assembled)
B
1x Side rails, passenger side (pre-assembled)
C
2x Bed brace spacers
D
2x Filler seal
E
1x Bulkhead seal (on select make/models)
F
6x Clamps
G
1x Drain cup, left and right
H
2x Retainer clamps
I
4x Drain cup fasteners
J
2x Buckle ends
K
4x Screws
L
NOTE: For the installation of all the seals. Clean the area where the seal will go with soap and water to remove dirt and debris.
Then clean the area with isopropyl alcohol to remove wax or grease and to evaporate any remaining water. Allow the surface to dry.
1
Remove the backing and position
the bed brace spacer (D) on the bed
brace as shown. Apply pressure to the
entire spacer to make sure the adhesion
is good. Place one on both sides.
RealTruck UnderCover • 59 Absolute Dr., Rogersville, MO 65742 • 866-900-8800 ©RealTruck Group, Inc., 2023
NOTE: It is important that all areas
where the bed cover mounts are clean
and free of debris prior to installing.
F
K
D
L
E
G
B
D
H
2
Remove the backing and position
the filler seal (E) on the bed brace as
shown. Apply pressure to the entire seal
to make sure the adhesion is good. Place
one on
both sides.
2021-23 RAM W/MULTIFUNCTION TAILGATE
FLEX ULTRA FLEX
l
INSTALLATION SHEET
Any damaged or missing parts?
Parts will be shipped to you directly.
Call 866-900-8800 Mon - Fri 8:00 am - 5:00 pm CST
or email info@undercoverinfo.com
C
I
J
H
E
I
3
to the other. Remove any excess with
scissors or a utility knife. Apply pressure
evenly to the entire seal to ensure proper
adhesion. If the
truck has a
drop-in bedliner,
no seal will
be needed.
ARMORFLEX
l
F G
J K
Peel the backing and adhere the
seal (F) from one bulkhead edge
Cab
Cab Cab
Cab
Part# FX101207 Rev. 11-29-23
L
